Product Overview

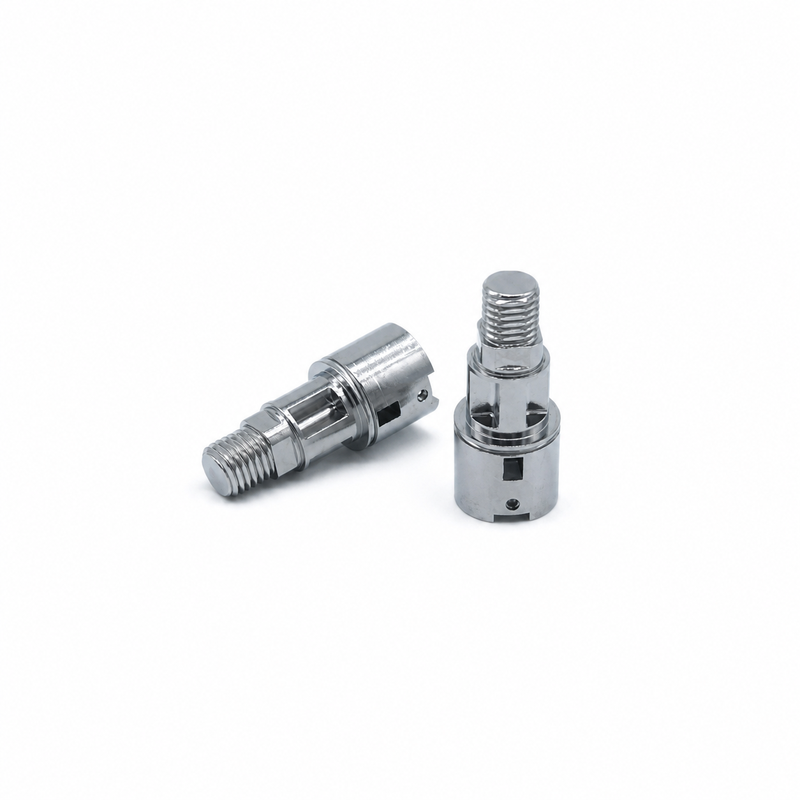

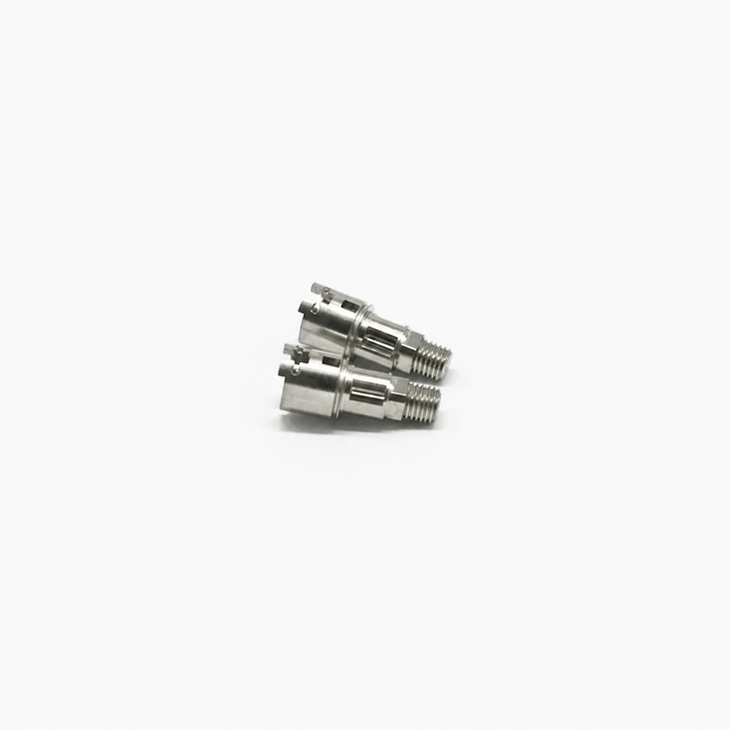

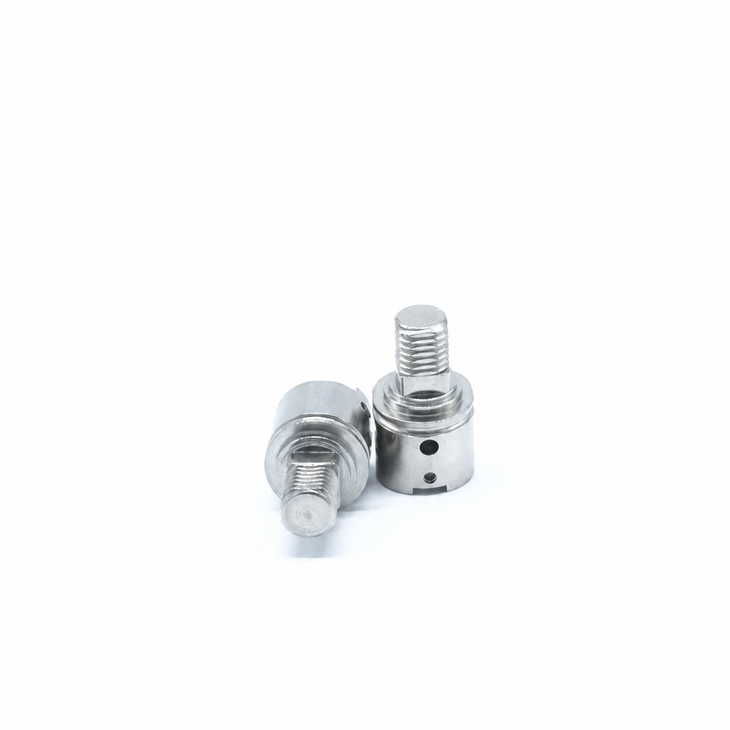

Slotted cylindrical components provide guiding, retention or engagement inside a smart-lock mechanism.
The control system and the metal cylinder have separate design requirements.
Structure & Mating Interfaces
Identify the axis, slot positions, retaining shoulders and mating members.
Provide the component's place in the lock rather than relying on the outer diameter alone.
Engineering Focus
Why relate slots to the cylinder axis?
Slots engage or guide other members while the cylinder is positioned by its round or locating surfaces.
The relationship between those features establishes the working geometry.
Independent dimensions without that common reference can leave assembly behavior ambiguous.
Manufacturing Route & Finishing
Compare machining with MIM for the combination of cylindrical and non-round features.
Guide surfaces and slots may require secondary operations according to their function.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the base material, final condition and corrosion or appearance requirements.
Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.
The component specification does not establish a security rating for the complete lock.
Review material-selection information →Quality & Sample Approval
Check axis relationships, slot engagement and finished fit.
Verify the required motion and retention with the actual mating lock components.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does a smart-lock cylinder include the complete electronic lock?
No. This page concerns metal components; define the exact cylinder parts and assembly scope required.
Why relate slots to the cylinder axis?
Slots engage or guide other members while the cylinder is positioned by its round or locating surfaces. The relationship between those features establishes the working geometry. Independent dimensions without that common reference can leave assembly behavior ambiguous.
How should the completed mechanism be checked?
Check axis relationships, slot engagement and finished fit. Verify the required motion and retention with the actual mating lock components.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
