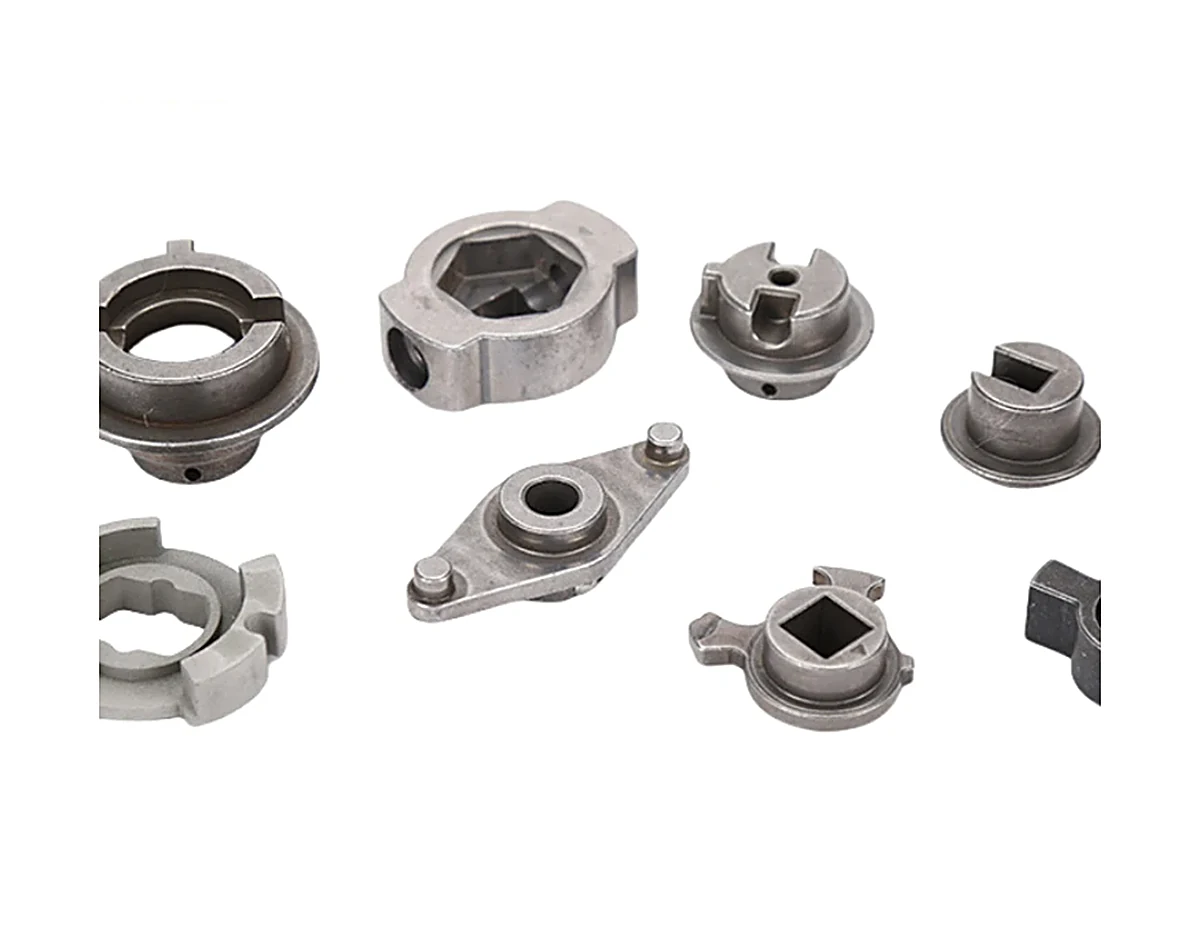

What lock core cams and drive inserts connect in the mechanism
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
The reference group contains several functions rather than one interchangeable part.
Exact member, central drive and engaging-profile interfaces
Identify the exact member, central drive shape and engaging profile.
Define angular orientation and the interfaces to the surrounding lock core.
Why separate drive inserts from retaining components?
A drive insert transfers movement, while a retainer holds another member in place.
Their similar scale does not imply the same critical features.
Identifying each role prevents a shared catalog photograph from becoming an unsuitable common specification.
MIM, PM and machining for cam and insert profiles
Compare MIM, PM and machining for the chosen profile.
Drive openings and working contacts should be reviewed for finishing and dimensional inspection.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Cam and insert material, treated-surface and corrosion requirements
Specify the base material, final condition and corrosion or appearance requirements.
Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.
The component specification does not establish a security rating for the complete lock.
Review material-selection information →Drive fit, angular relationship and core-engagement checks
Check drive fit, angular relationship and engagement in the core.
Specify whether the requested item rotates, retains or locates another component.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Should all parts in a lock-core group share one specification?
No. Identify each drawing and its function; cams, retainers and drive inserts have different critical interfaces.
Why separate drive inserts from retaining components?
A drive insert transfers movement, while a retainer holds another member in place. Their similar scale does not imply the same critical features. Identifying each role prevents a shared catalog photograph from becoming an unsuitable common specification.
How should the completed mechanism be checked?
Check drive fit, angular relationship and engagement in the core. Specify whether the requested item rotates, retains or locates another component.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
