What slotted cylinder components provide inside a smart lock
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
The control system and the metal cylinder have separate design requirements.
Axis, slot position and retaining-shoulder interfaces
Identify the axis, slot positions, retaining shoulders and mating members.
Provide the component's place in the lock rather than relying on the outer diameter alone.
Why relate slots to the cylinder axis?
Slots engage or guide other members while the cylinder is positioned by its round or locating surfaces.
The relationship between those features establishes the working geometry.
Independent dimensions without that common reference can leave assembly behavior ambiguous.
Machining versus MIM for cylindrical and non-round features
Compare machining with MIM for the combination of cylindrical and non-round features.
Guide surfaces and slots may require secondary operations according to their function.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Smart lock cylinder material, treated-surface and corrosion requirements
Specify the base material, final condition and corrosion or appearance requirements.
Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.
The component specification does not establish a security rating for the complete lock.
Review material-selection information →Axis relationship, slot engagement and finished-fit checks
Check axis relationships, slot engagement and finished fit.
Verify the required motion and retention with the actual mating lock components.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Cylinder and core parts: what the drive train actually constrains
On a smart lock the cylinder is no longer turned by hand alone. A motor, clutch or cam sits between the user and the plug, and every interface in that chain adds lost motion. The drawing review therefore has to start from the drive train and work back to the plug, not the other way round.
| Feature | What it governs | How it is specified and verified |
|---|---|---|
| Plug-to-barrel clearance | Rotational drag and key feel, and whether a small motor can complete the turn against that drag. | Radial clearance band on the drawing; confirmed by a torque trace on an assembled core rather than on loose parts. |
| Pin chamber position to the shear line | Whether pins drop cleanly or bind at the shear line during rotation. | Chamber position relative to the shear datum; CMM on a sectioned sample. |
| Cam and clutch interface | The lost motion between motor output and plug, which shows up as handle play. | Engagement angles and backlash stated as a functional requirement; cycling check on a built sample. |
| Hardened element placement | Where a hardened insert sits relative to the plug face, and whether the surrounding section can carry it. | Insert depth and hardened zone documented on the drawing; verified by sectioning one sample per lot. |
| Bore roundness and straightness | Key insertion force, and the wear pattern that develops along the barrel. | Roundness and straightness callouts; air gauge or CMM, measured after any post-sinter sizing. |
Note. All dimensions and acceptance criteria are taken from the project drawing. The table lists the points that get reviewed; it does not fix values.
MIM is the wrong answer when the cylinder body is a plain turned shape with a single bore and no integrated features. A screw-machine part wins on both cost and lead time. It is also the wrong answer when the design needs a hardened zone through the full wall: local hardening on a sintered body is possible, but a through-hardened wrought blank is more predictable and should be compared before the route is fixed.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does a smart-lock cylinder include the complete electronic lock?
No. This page concerns metal components; define the exact cylinder parts and assembly scope required.
Why relate slots to the cylinder axis?
Slots engage or guide other members while the cylinder is positioned by its round or locating surfaces. The relationship between those features establishes the working geometry. Independent dimensions without that common reference can leave assembly behavior ambiguous.
How should the completed mechanism be checked?
Check axis relationships, slot engagement and finished fit. Verify the required motion and retention with the actual mating lock components.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →Application, manufacturing and RFQ review

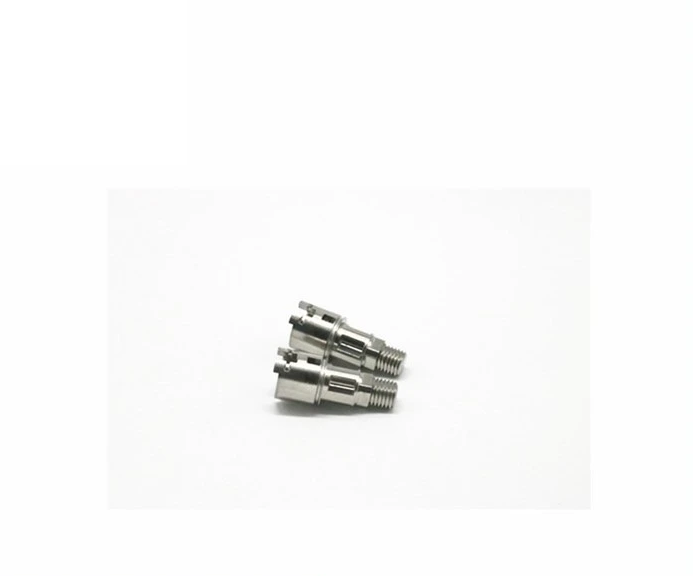

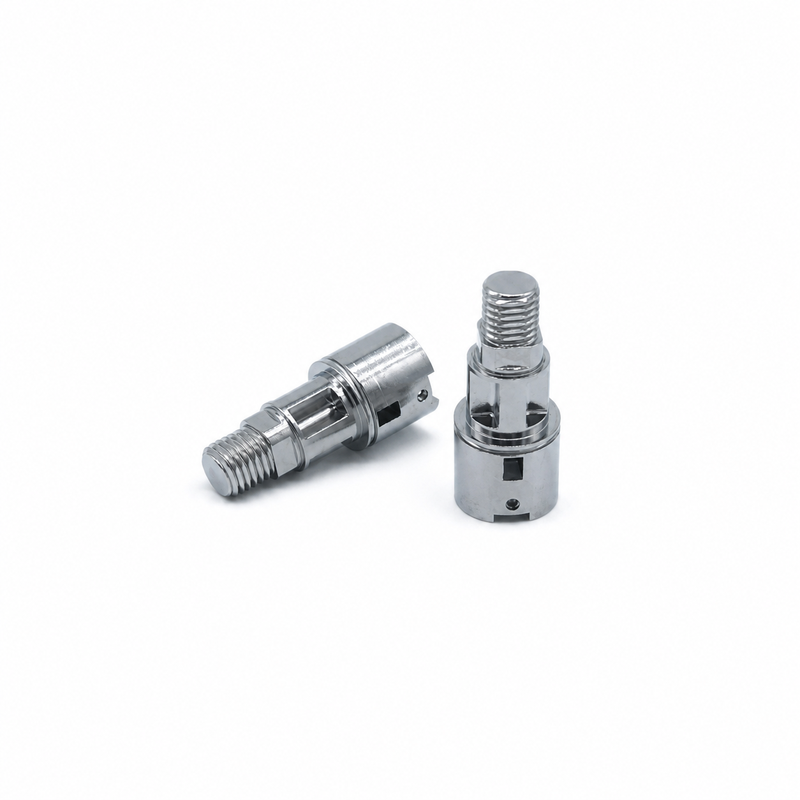

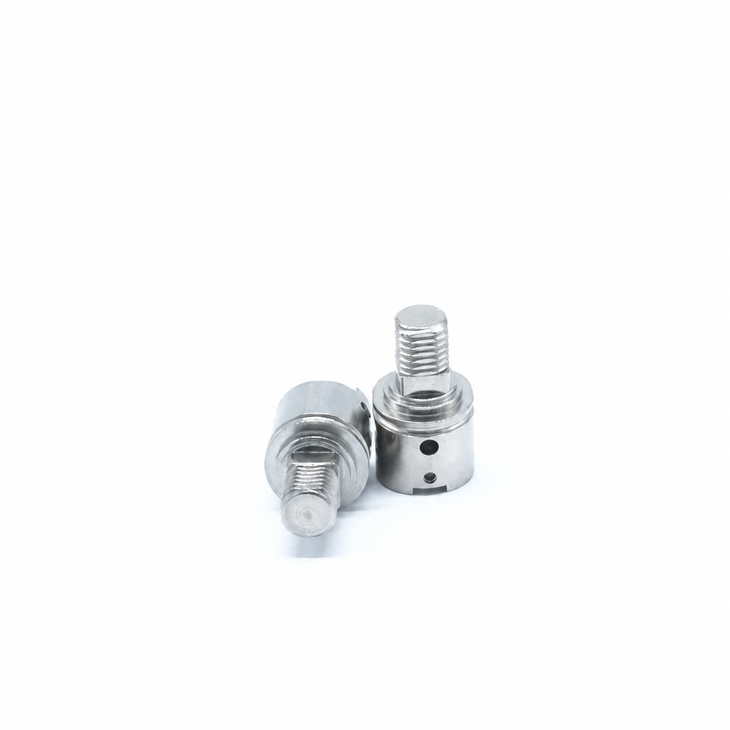

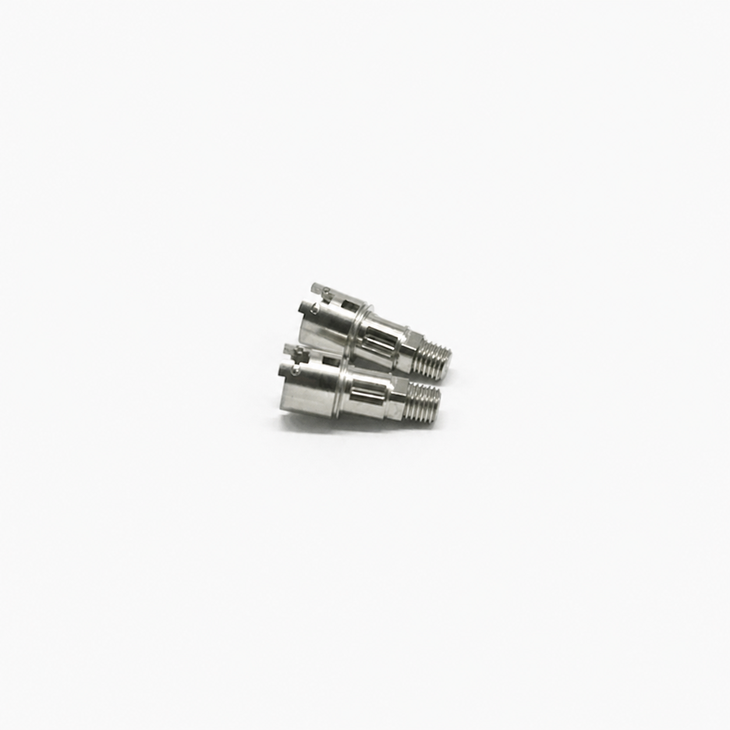

Use these points to prepare a review of a similar component. The illustration does not define a standard supply specification.
- Explain the cylinder interface, actuation and relationship to the surrounding mechanism.
- Mark locating faces, clearances and any surfaces requiring a controlled finish.
- Agree material condition and assembly checks; catalog imagery does not establish security performance.
Related guide: MIM vs. CNC for Small Complex Metal Parts: A Drawing Review Checklist
