What a tweezer or clip does through controlled mating contact
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

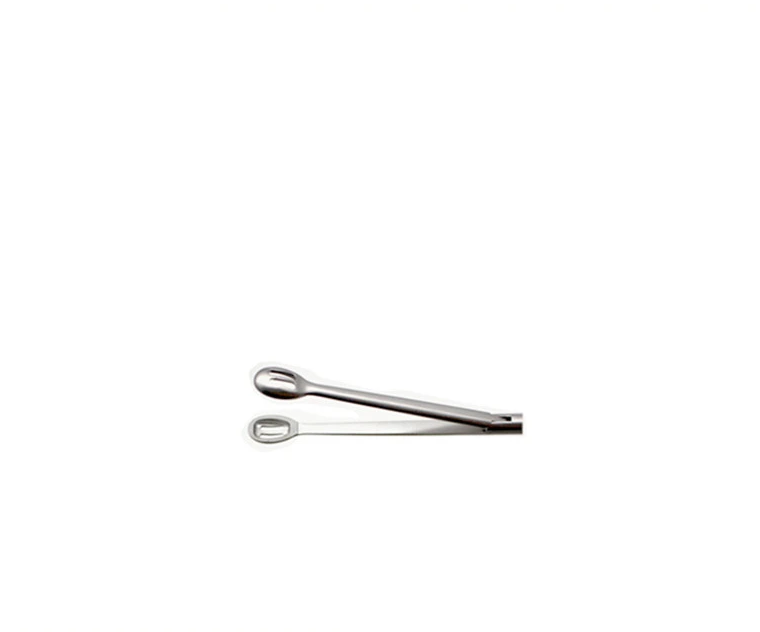

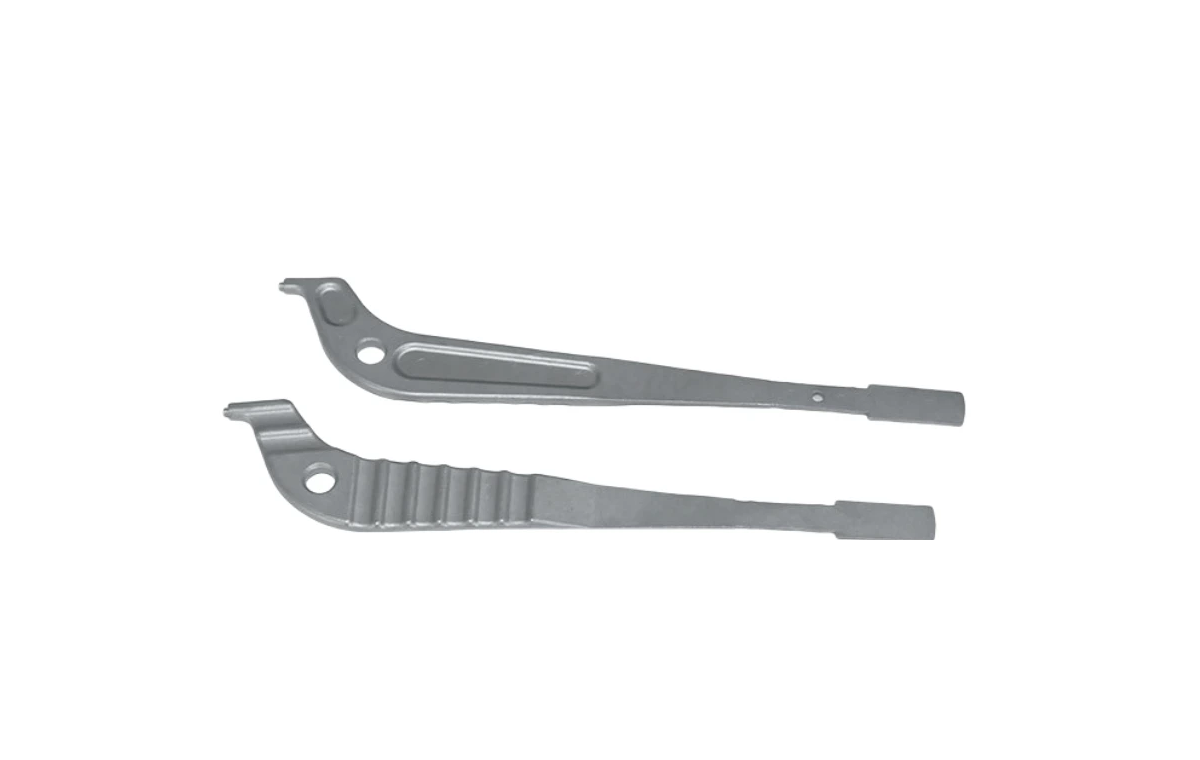

The catalog reference illustrates instrument geometry rather than establishing a clinical-use specification.
Mating surfaces, alignment and opening-range interfaces
Provide the mating surfaces, alignment, opening range and assembly arrangement.
Identify any areas intended to flex or carry a pivot, rather than assuming their function from appearance.
Why evaluate the mating contact as well as the outline?
The outline describes the component form, but the working relationship depends on alignment and contact with its partner.
A defined paired check links individual dimensions to the intended mechanism without assigning any unspecified clinical performance to the component.
Machining versus forming for instrument sections
Compare machining and suitable forming for the section and connection.
Surface and edge finishing should be planned without losing the intended contact geometry.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Tweezer and clip material, surface and traceability requirements
Provide the material specification, final surface requirements and documentation needed for the component.
Cleaning, traceability and device-related validation must follow the customer project.
The catalog reference does not establish medical compliance or an intended clinical use.
Review material-selection information →Alignment, opening-and-closing and material-condition checks
Check alignment, opening and closing behavior, edges and specified material condition.
Device-related cleaning and validation requirements must come from the customer project.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →What a tweezer drawing has to say about spring rate
A tweezer is two cantilever springs joined at one end. Almost every change below exists because that is what it is, and because the drawing usually describes the shape instead of the spring.
| What we flag | Why it bites on this part | How the drawing usually changes |
|---|---|---|
| The opening force | Two tweezers with identical geometry can feel completely different if the section at the bend differs by a tenth of a millimetre. Force is the function, and it is rarely on the drawing. | Opening force at a stated tip separation is written as a requirement with a range, and it is measured on the first article rather than inferred from dimensions. |
| Tip alignment | The tips have to meet flat against each other, and that is a relationship between two features that are sintered in one piece and then possibly polished separately. | The tips are called with a matching requirement and finished as a pair, not as two independent surfaces each within its own tolerance. |
| Surface and cleanability | A surgical instrument is cleaned between uses, and porosity at the surface holds residue that a smooth wrought surface does not. | The visible and working surfaces get a polish or electropolish call with a defined Ra, and the density floor is stated alongside it. |
| The alloy choice | 420 stainless takes a sharp edge and hardens well. 17-4PH holds up better to repeated steam sterilisation. The market the instrument goes to decides which one, and the drawing often names neither. | The sterilisation method is written on the drawing, and the alloy is chosen against it. |
| Marking and traceability | Laser marking on a sintered surface needs a flat area of a certain size, and a curved thin arm will not take it legibly. | A flat marking pad is designed into the part at the drawing stage rather than found on the finished surface. |
Note. These are the changes we most often ask for on this class of part, not a review of any particular drawing. They describe how the process behaves; dimensions, tolerances and acceptance values come from the project drawing.
What we will not do is tune the spring by adjusting the mould without telling anyone. Changing a section to hit a force changes the drawing, and on an instrument that is a design change that has to be recorded. We would rather run a second iteration and keep the revision honest.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can a component material name establish clinical suitability?
No. Intended use, full design, processing and required validation documentation must be defined and reviewed separately.
Why evaluate the mating contact as well as the outline?
The outline describes the component form, but the working relationship depends on alignment and contact with its partner. A defined paired check links individual dimensions to the intended mechanism without assigning any unspecified clinical performance to the component.
What must the sample approval requirements define?
Check alignment, opening and closing behavior, edges and specified material condition. Device-related cleaning and validation requirements must come from the customer project.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
