Product Overview

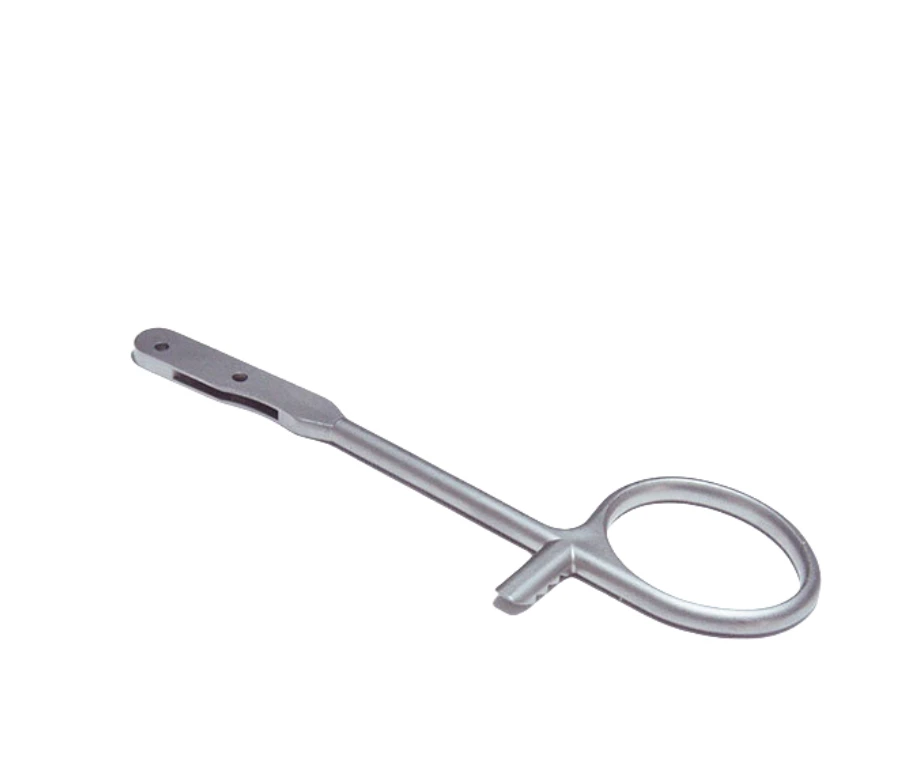

Ring-handle components provide a hand interface and a connection to an instrument mechanism.
The reference shows an individual elongated member rather than a complete qualified instrument.
Structure & Mating Interfaces
Define the pivot or connection, the hand opening and the mating instrument parts.
Separate operating contacts from user-contact edges and cosmetic surfaces.
Engineering Focus
Why distinguish the hand opening from the mechanical connection?
The opening provides a user interface, while the connection relates the handle to the instrument mechanism.
Their edge, location and finish requirements can differ.
Defining each separately gives inspection a clearer purpose than one general handle-size description.
Manufacturing Route & Finishing
Compare forming and machining for the handle geometry and attachment features.
Long transitions and critical holes need attention to support, finishing and final inspection.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Provide the material specification, final surface requirements and documentation needed for the component.
Cleaning, traceability and device-related validation must follow the customer project.
The catalog reference does not establish medical compliance or an intended clinical use.
Review material-selection information →Quality & Sample Approval
Check connection fit, alignment, edges and the specified finish.
Include material, cleaning and traceability requirements in the project documentation.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does an instrument handle quotation cover the complete device?
No. Identify the supplied component and any assembly work; device-level approval remains a separate project requirement.
Why distinguish the hand opening from the mechanical connection?
The opening provides a user interface, while the connection relates the handle to the instrument mechanism. Their edge, location and finish requirements can differ. Defining each separately gives inspection a clearer purpose than one general handle-size description.
What must the sample approval requirements define?
Check connection fit, alignment, edges and the specified finish. Include material, cleaning and traceability requirements in the project documentation.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
