Locking Drive Plates and Keys

A locking key or drive plate engages a mating profile to transfer or restrain movement.

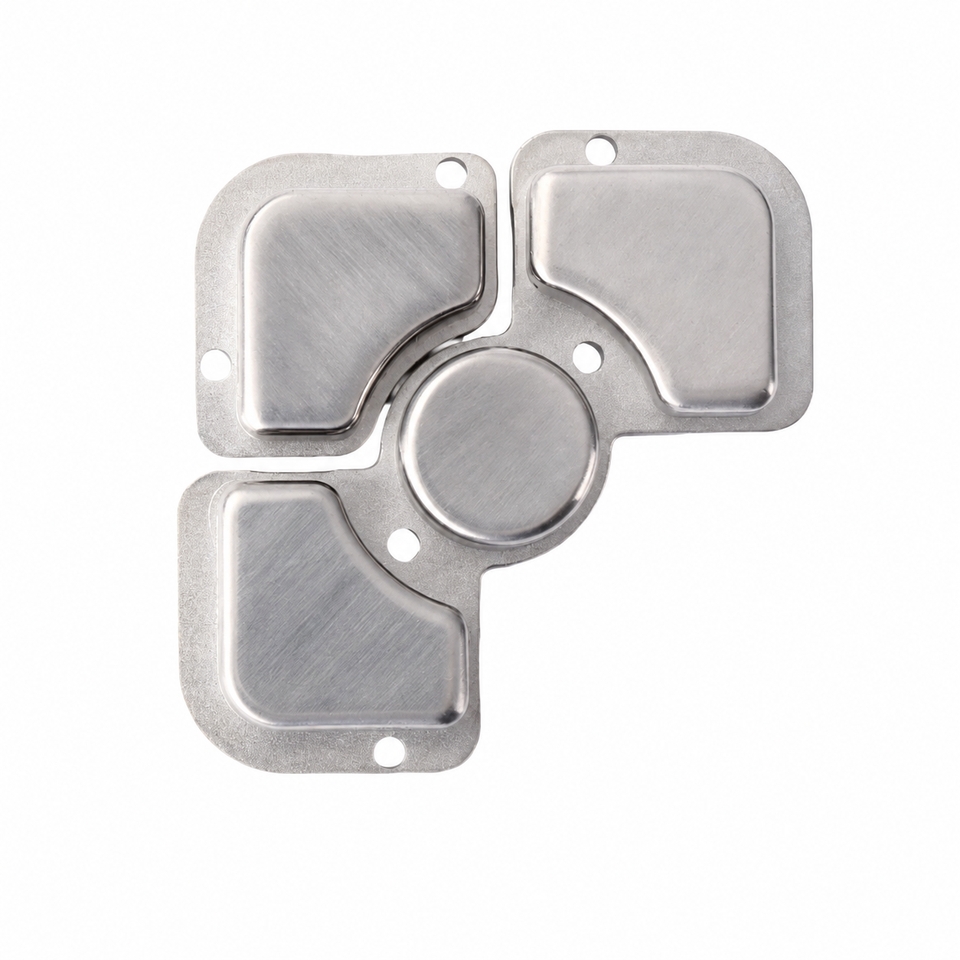

Locking Drive Plates and Keys
Product catalog reference. Dimensions, material and supply scope are confirmed from the project drawing.

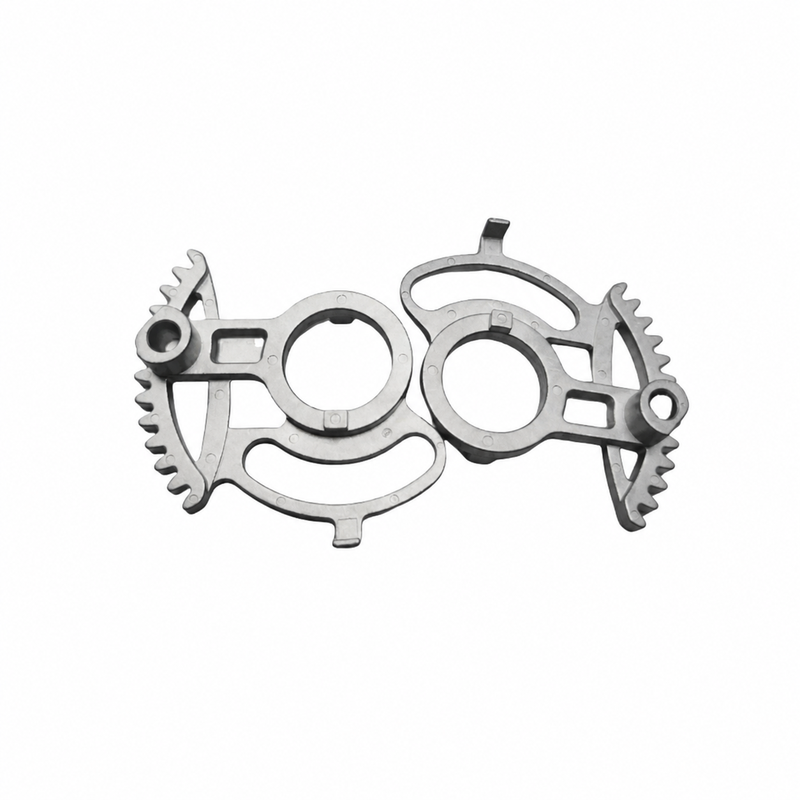

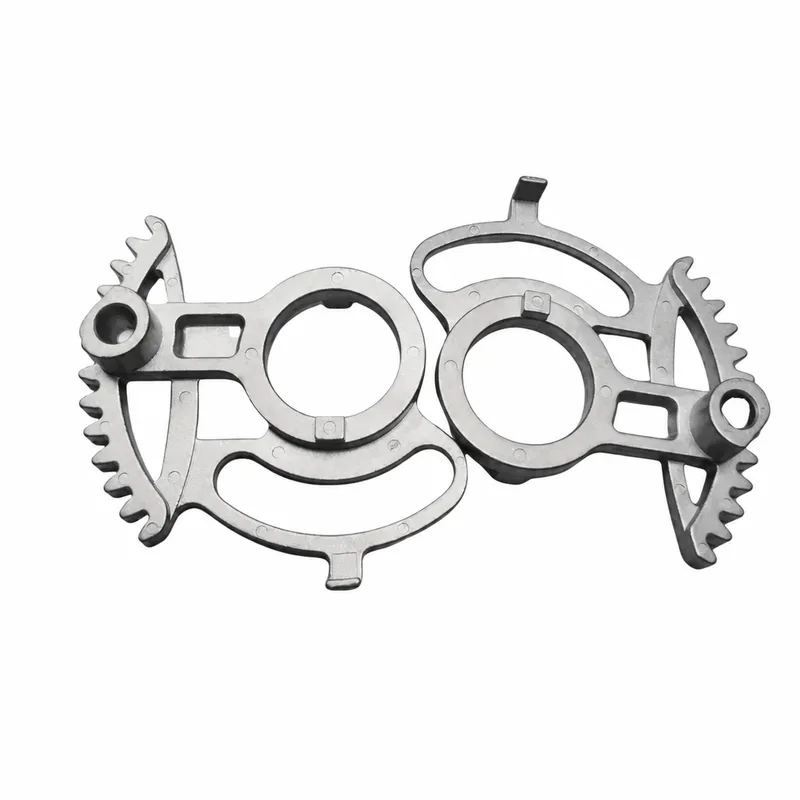

What a locking drive plate does against a mating profile

This catalog entry concerns an internal mechanism part rather than a cut door key.

Central connection, working profile and angular-travel interfaces

Provide the central connection, working profile and angular travel.

Identify whether the part transmits rotation, indexes a position or locks another member.

Why distinguish an internal drive key from a door key?

The internal part is defined by its relationship to the mechanism, whereas an external key has a different scope and interface.

Naming the supplied component precisely avoids ambiguity over profiles, mating hardware and what the quotation actually includes.

Profile forming versus machining for engaging edges

Compare profile forming and machining with final control of engaging edges.

Functional profiles should not be rounded unintentionally during finishing.

Compare manufacturing capabilities →

Drive plates: three routes and the one condition that decides

This entry is an internal mechanism plate, not a cut door key. The distinction is not cosmetic: a door key is a cutter that mates with a cylinder, while a drive plate closes a dimensional chain inside the lock body. The two are made and inspected differently, so they should not be quoted against each other.

Alternative processWhen it wins on this partWhat puts sintering back in front
Fine blankingWins on the flat plate whose outline is the function. One strike gives the full profile with a sheared edge clean enough to work against.The plate then has one thickness everywhere. Any axial boss that has to seat in the lock body needs a separate turned part or a staking step, and that step becomes the weak link in the drive.
Stamping with heat treatmentWins where the shape is simple and the requirement is strength rather than precision, since the hardening can follow the blanking.Quenching distorts the working profile. If the profile is what transmits the torque, distortion has to be removed by grinding or coining, and both are per-piece costs that never amortise.
Wire EDM or laser cuttingWins at prototype and on any irregular outline that would need an expensive die, with no tooling committed before the design settles.Neither process produces a three-dimensional feature. A step in thickness, a chamfer that guides engagement, or a lug that stands off the plate all remain separate operations.
CNC millingWins on the thick plate with a step, where the step has to be square to the profile and both are referenced from one setup.Milling a plate that is mostly a flat outline spends its time removing material that a die would never have added. That is fine for ten pieces and hard to defend for ten thousand.
SinteringWins where an axial boss, a radial locating lug and a change of thickness exist on one plate, because all three come out of the tool and the drive chain loses two joints.It loses on the plain flat plate. There, blanking is faster to tool, cheaper per piece and needs no sizing step afterwards.

We can compare these routes once we know the alloy, tolerances and order quantity.

Before comparing prices, settle which part is being bought. A door key is judged on how it cuts and how it wears; a drive plate is judged on angular play in the assembled lock. A quotation that mixes the two is answering a question nobody asked.

Compare other lock mechanism parts →

Locking key material, treated-surface and corrosion requirements

Specify the base material, final condition and corrosion or appearance requirements.

Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.

Specify any testing required on the assembled lock separately.

Review material-selection information →

Engagement, orientation and mechanism-clearance checks

Check engagement, orientation and clearance against the mating mechanism.

Evaluate the agreed locking and release sequence.

Quality documentation →

What to include in your enquiry

  1. Drawing and mating dimensions.Provide the central connection, working profile and angular travel. Include the drawing revision.
  2. Mating information. Include the assembly references needed to define the interfaces discussed above.
  3. Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
  4. Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
  5. First-sample inspection.Check engagement, orientation and clearance against the mating mechanism. Specify the mating part or inspection fixture.
Send This Component for Review →

Common questions

Is this an externally cut key for a particular lock brand?

No. It is a custom internal drive-component reference; the required profile must come from the customer's drawing.

Why distinguish an internal drive key from a door key?

The internal part is defined by its relationship to the mechanism, whereas an external key has a different scope and interface. Naming the supplied component precisely avoids ambiguity over profiles, mating hardware and what the quotation actually includes.

How should the completed mechanism be checked?

Check engagement, orientation and clearance against the mating mechanism. Evaluate the agreed locking and release sequence.
