Product Overview
Push-button lock components convert a short input motion into release or retention within a lock.

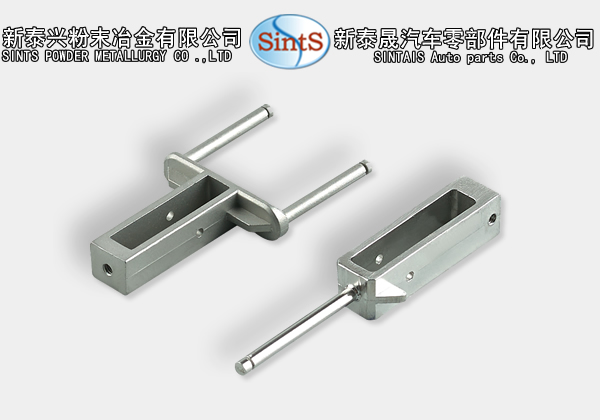

The reference shows compact cylindrical and engaging forms that must be matched to the mechanism.
Structure & Mating Interfaces
Provide button travel, guiding geometry and the connection to the latch or return element.
Identify the surfaces that locate the part and those that engage another member.
Engineering Focus
Why separate guide clearance from release travel?
Guide clearance permits movement, while travel determines whether the mechanism reaches its required positions.
One does not fully specify the other.
The drawing and assembly test should state both so a freely moving button is not mistaken for a correctly releasing lock.
Manufacturing Route & Finishing
Compare MIM and machining for integrated slots and small connection features.
Sliding diameters or engaging surfaces may need finishing after forming.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the base material, final condition and corrosion or appearance requirements.
Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.
The component specification does not establish a security rating for the complete lock.
Review material-selection information →Quality & Sample Approval
Check travel, return, guiding clearance and engagement with the mating lock.
Define the operating test in the assembled condition.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does correct button travel guarantee latch release?
No. The connection, engagement geometry and return arrangement must also be verified with the complete mechanism.
Why separate guide clearance from release travel?
Guide clearance permits movement, while travel determines whether the mechanism reaches its required positions. One does not fully specify the other. The drawing and assembly test should state both so a freely moving button is not mistaken for a correctly releasing lock.
How should the completed mechanism be checked?
Check travel, return, guiding clearance and engagement with the mating lock. Define the operating test in the assembled condition.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
