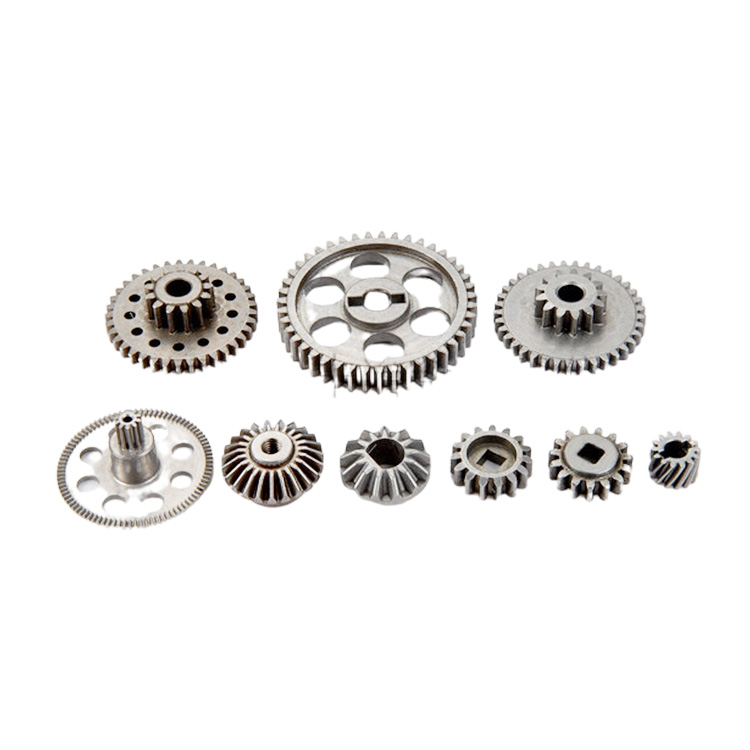

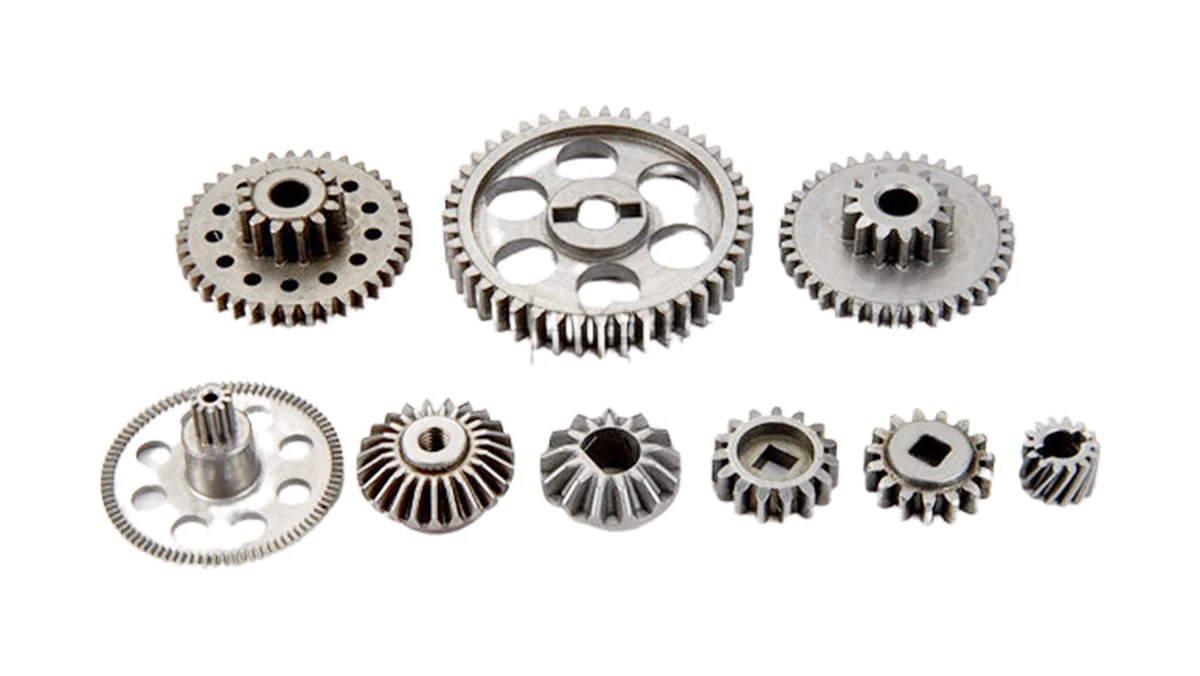

Household Appliance Gears

Appliance mechanisms use several gear forms to transmit movement within limited space.

Household Appliance Gears
Product catalog reference. Dimensions, material and supply scope are confirmed from the project drawing.

What household appliance gears transmit within limited space

The catalog group spans different geometries, each requiring its own mating and duty information.

Tooth data, shaft position and bore-fit interfaces

Define tooth data, shaft position, bore fit and the mating gear.

Separate positional accuracy from any requirement for quiet operation in the appliance enclosure.

Why separate dimensional checks from appliance noise evaluation?

Gear dimensions describe the individual component, whereas noise depends on the assembled drive and operating conditions.

Both can matter, but they answer different questions.

The component drawing and the appliance-level test should state which evidence is required for each.

PM, machining and other routes for each appliance gear form

Compare PM, machining and other gear-production routes for each tooth form and volume.

The process selected for one gear in the group does not establish the route for all the others.

Compare manufacturing capabilities →

Appliance gear grade, wear and quiet-operation requirements

Specify the required grade or performance criteria together with cleaning, wear and appearance requirements.

For any surface that contacts food or beverage, identify the applicable customer documentation and acceptance criteria.

For contact surfaces, specify the stainless grade and finish.

Review material-selection information →

Tooth geometry, mounting interfaces and assembly-behaviour checks

Check tooth geometry, mounting interfaces and the agreed assembly behavior.

Include operating speed, load and any noise evaluation in the brief.

Quality documentation →

Where a home appliance gear drawing makes its own noise

A gear in a coffee grinder or a food processor is judged by ear before it is judged by life. Noise is not a tolerance in itself, but it is the consequence of four things on the drawing that are usually written for something else.

What we flagWhy it bites on this partHow the drawing usually changes
Tooth-to-tooth spacingNoise comes from uneven spacing far more than from profile error. A gear that is dimensionally correct but has uneven pitch will sing at a constant note.Pitch variation is called as its own requirement rather than being assumed inside a general profile tolerance.
The mateA gear and a pinion are a pair. Tolerancing the gear alone and buying the pinion elsewhere produces two parts that each pass inspection and do not run quietly together.The pair is drawn and quoted together, with the centre distance and the backlash named on the drawing.
Bore and shaft fitA loose bore lets the gear run eccentric, and eccentricity shows up as once-per-revolution noise that no tooth refinement can fix.The bore is toleranced against the actual shaft, and if the shaft is the customer s part, its tolerance is written on our drawing.
Density and dampingPressed and sintered gears absorb vibration better than machined steel because of the residual porosity. That advantage disappears if the density is pushed very high for strength.The density is chosen for the noise target where noise is the driver, and the strength check is done at that density rather than the other way round.
Hub and web sectionA thin web flexes under load and the gear deflects out of mesh on one side, which reads as noise and wears the teeth unevenly.The web thickness is set from the torque rather than from the space available.

Confirm any proposed change against your assembly requirements.

If quiet running is the primary requirement, the most useful thing a buyer can send is not a tighter drawing, it is a recording of the target noise and the speed it occurs at. That tells us whether the problem is pitch, eccentricity or resonance, and only one of those is fixed by tightening a tolerance.

Gear and transmission component range →

What to include in your enquiry

  1. Drawing and mating dimensions.Define tooth data, shaft position, bore fit and the mating gear. Include the drawing revision.
  2. Mating information. Include the assembly references needed to define the interfaces discussed above.
  3. Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
  4. Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
  5. First-sample inspection.Check tooth geometry, mounting interfaces and the agreed assembly behavior. Specify the mating part or inspection fixture.
Send This Component for Review →

Common questions

Can all gears in an appliance use the same manufacturing route?

Not necessarily. Tooth geometry, load, size and production quantity can favor different processes within one transmission.

Why separate dimensional checks from appliance noise evaluation?

Gear dimensions describe the individual component, whereas noise depends on the assembled drive and operating conditions. Both can matter, but they answer different questions. The component drawing and the appliance-level test should state which evidence is required for each.

How should fit and operating behavior be approved?

Check tooth geometry, mounting interfaces and the agreed assembly behavior. Include operating speed, load and any noise evaluation in the brief.
