Product Overview

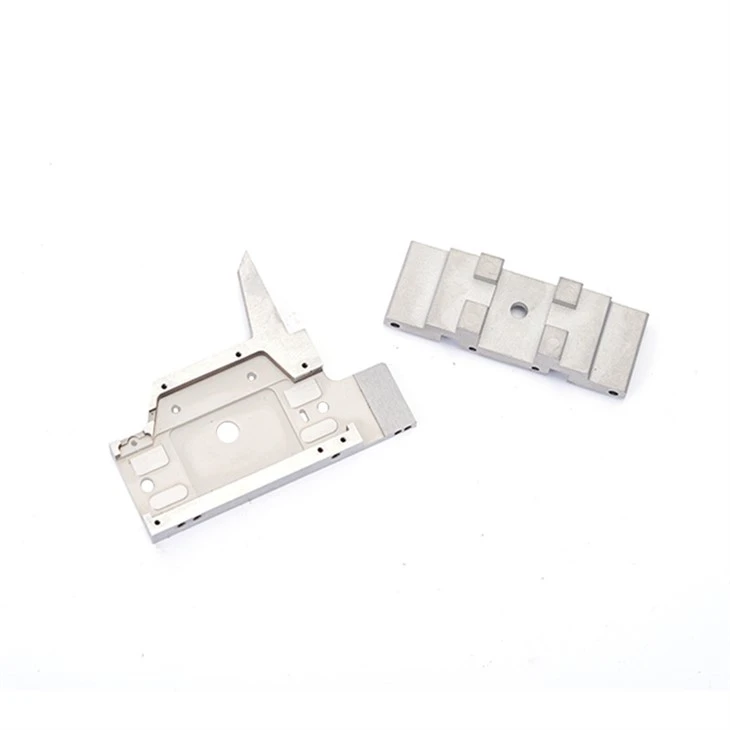

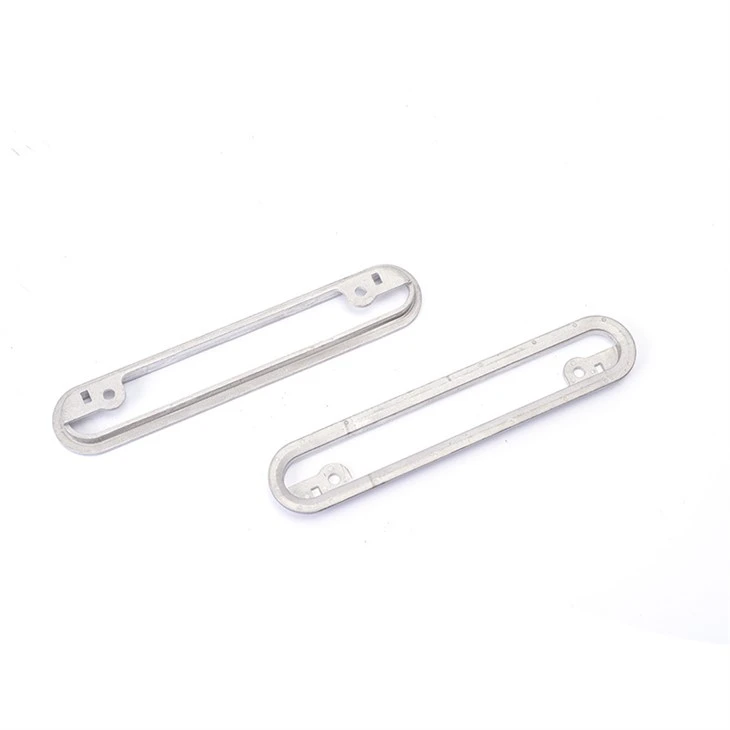

Bathroom hardware can use metal mounting plates, supports and locating features behind the visible fitting.
This catalog reference is for component review rather than a finished bathroom fixture.
Structure & Mating Interfaces
Define wall or fixture attachment, hole positions and the load-bearing contact surfaces.
Note which faces are visible and which are concealed after installation.
Engineering Focus
Why define concealed mounting faces carefully?
The visible fitting may conceal the surfaces that actually determine its position.
A small change at a concealed seat can alter the assembled gap or alignment.
The drawing should prioritize the interfaces that position the hardware, then define the separate appearance requirements.
Manufacturing Route & Finishing
Compare machining and near-net forming for the plate, recess and mounting geometry.
Flat mounting faces and threads may require secondary operations to meet the assembly drawing.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the required grade or performance criteria together with cleaning, wear and appearance requirements.
For any surface that contacts food or beverage, identify the applicable customer documentation and acceptance criteria.
A stainless label is not a complete contact specification.
Review material-selection information →Quality & Sample Approval
Check attachment fit, seating, edge condition and final finish.
Specify cleaning agents, moisture exposure and the required corrosion evaluation for the project.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can the surface finish be selected only for appearance?
No. The cleaning environment, underlying material and mounting interfaces should also be considered when choosing the finish.
Why define concealed mounting faces carefully?
The visible fitting may conceal the surfaces that actually determine its position. A small change at a concealed seat can alter the assembled gap or alignment. The drawing should prioritize the interfaces that position the hardware, then define the separate appearance requirements.
How should fit and operating behavior be approved?
Check attachment fit, seating, edge condition and final finish. Specify cleaning agents, moisture exposure and the required corrosion evaluation for the project.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
