Sewing Machine Cover and Guide Parts

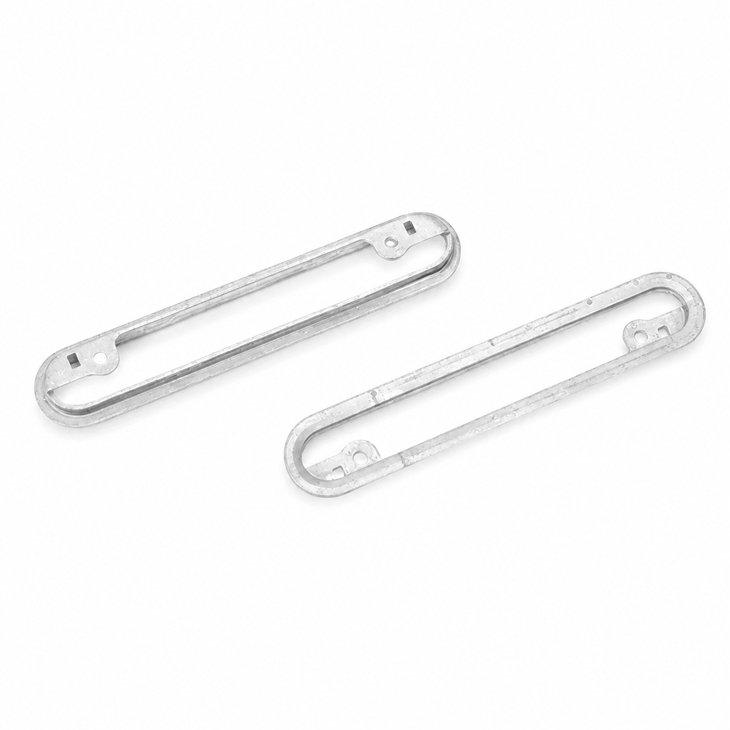

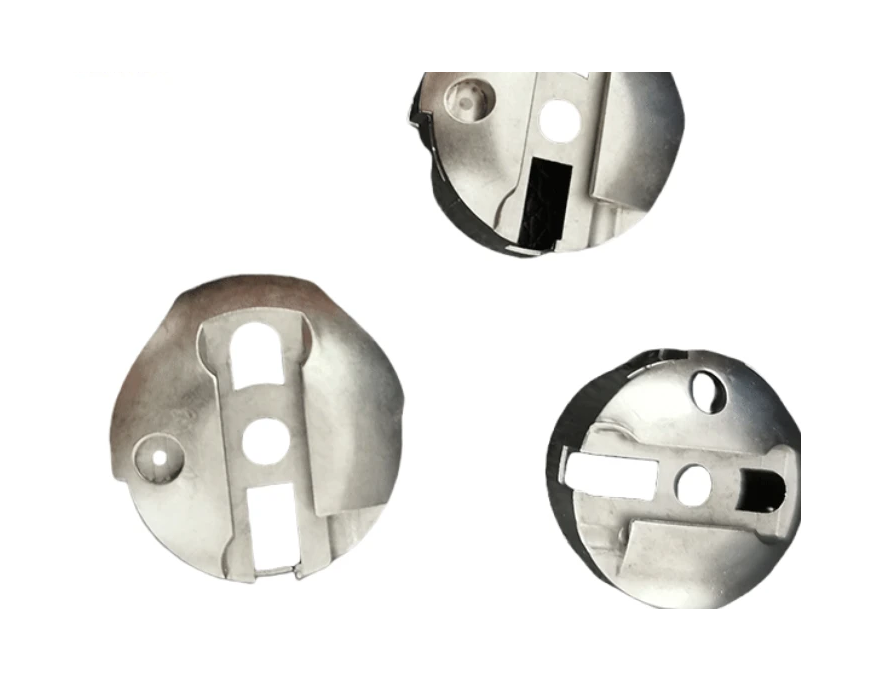

Rounded cover and guide forms in sewing machinery can combine clearance openings with surfaces that position or shield a moving element.

Drawing-based supply · Material and finish review · Agreed sample inspection

Sewing Machine Cover and Guide Parts
Product catalog reference. Dimensions, material and supply scope are confirmed from the project drawing.

What sewing-machine covers and guides do around moving elements

Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

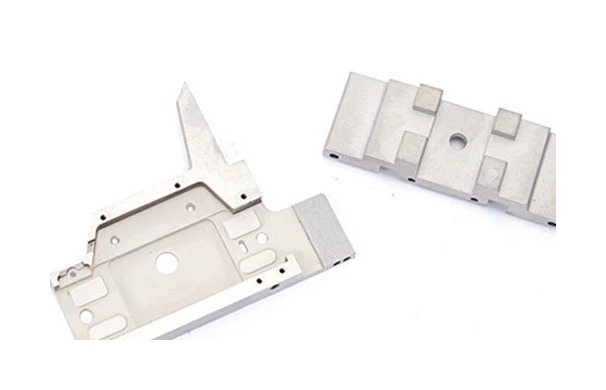

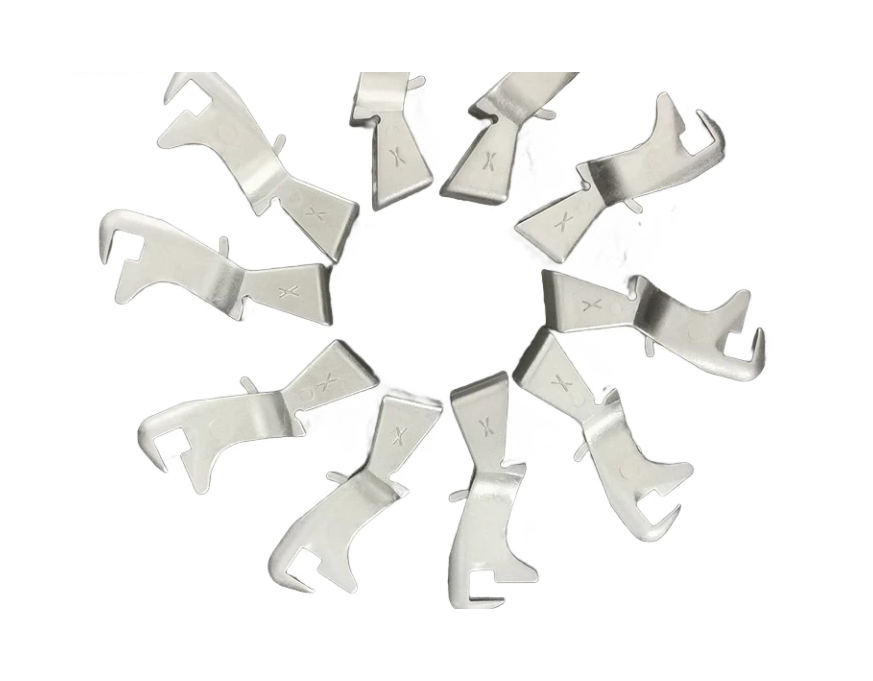

The catalog contains several related shapes.

Clearance slots versus locating features

Mark clearance slots separately from features that locate the part.

Thin curved sections and openings need to be assessed in the assembled condition.

Why distinguish a clearance opening from a guide slot?

A clearance opening prevents interference; a guide slot helps control movement.

Their size, edge and position requirements therefore serve different purposes.

Identifying the role of each opening prevents unnecessary precision on free space while overlooking a working interface.

Forming versus machining for curved profiles and slots

Compare forming and machining for the curved profile and slots.

The chosen route must preserve mounting geometry while meeting edge and finish requirements around openings.

The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.

Compare manufacturing capabilities →

Covers and guide plates: which route holds the slot

Nearly every argument about a cover plate is actually about one slot. If the slot is clearance, almost any process can make it. If the slot guides something, its side faces are functional, and that changes both the route and the tolerance band by a wide margin.

Alternative processWhen it wins on this partWhat puts sintering back in front
Progressive die stampingWins on the thin cover where the slot is a clearance opening. Blank, pierce and form in one strip at the lowest per-piece cost available.A pierced slot carries a shear taper and a burr on one side. Where the slot side faces guide a moving part, that taper is a functional error, and deburring does not restore the side face.
Laser cutting plus bendingWins at low volume and wherever the slot pattern is still being revised, since a change needs a new program and not a new tool.The cut edge is perpendicular but carries a heat-affected zone and a small taper of its own. On a guide slot that has to run against a pin, the edge condition becomes a wear question.
CNC millingWins where the slot side faces have to be square to the plate and parallel to each other within a narrow band.Milling a thin plate distorts it unless the stock is supported, and the support is a fixture per geometry. The setup cost repeats for every variant, which is where the low-volume advantage goes.
Die castingWins on the thicker cover or the frame that surrounds the mechanism, where the section is heavy and the tolerance is moderate.Draft has to be built into the slot if the slot is cast. A drafted slot cannot guide anything, so the slot is either cut afterwards or the casting is not the right route for that feature.
SinteringWins where the slot and a locating boss have to coexist on a part with a change of thickness, because a formed slot has no shear taper and no burr to remove on either side.It loses on the plain flat cover. There, blanking is cheaper, faster and does not need a sizing step after the furnace.

Note. This table is a screening aid, not a recommendation against our own process. Where a row above describes your part better than the sintering route does, we will say so and quote against the route that actually fits; the quantities, alloy and tolerances on your drawing still decide the answer.

Split the drawing before comparing prices: clearance slots as one class, guide slots as another. Merging them into a single tolerance is the most common reason a quotation comes back wrong, and the reason the first samples get rejected for something nobody intended to specify.

Compare other covers, guides and brackets →

Cover and guide grade, edge and finish requirements

Specify the required grade or performance criteria together with cleaning, wear and appearance requirements.

For any surface that contacts food or beverage, identify the applicable customer documentation and acceptance criteria.

A stainless label is not a complete contact specification.

Review material-selection information →

Opening position, seating and moving-part interference checks

Check opening positions, seating and interference with moving parts.

Inspect accessible edges and any surface that contacts thread or another sensitive component.

Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.

Quality documentation →

Prepare a Product-Specific RFQ

  1. Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
  2. Mating information. Include the assembly references needed to define the interfaces discussed above.
  3. Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
  4. Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Send This Component for Review →

Product Questions

Should every slot have the same tolerance?

No. Identify whether each opening locates, guides or simply clears another part; those functions call for different controls.

Why distinguish a clearance opening from a guide slot?

A clearance opening prevents interference; a guide slot helps control movement. Their size, edge and position requirements therefore serve different purposes. Identifying the role of each opening prevents unnecessary precision on free space while overlooking a working interface.

How should fit and operating behavior be approved?

Check opening positions, seating and interference with moving parts. Inspect accessible edges and any surface that contacts thread or another sensitive component.
