Product Overview

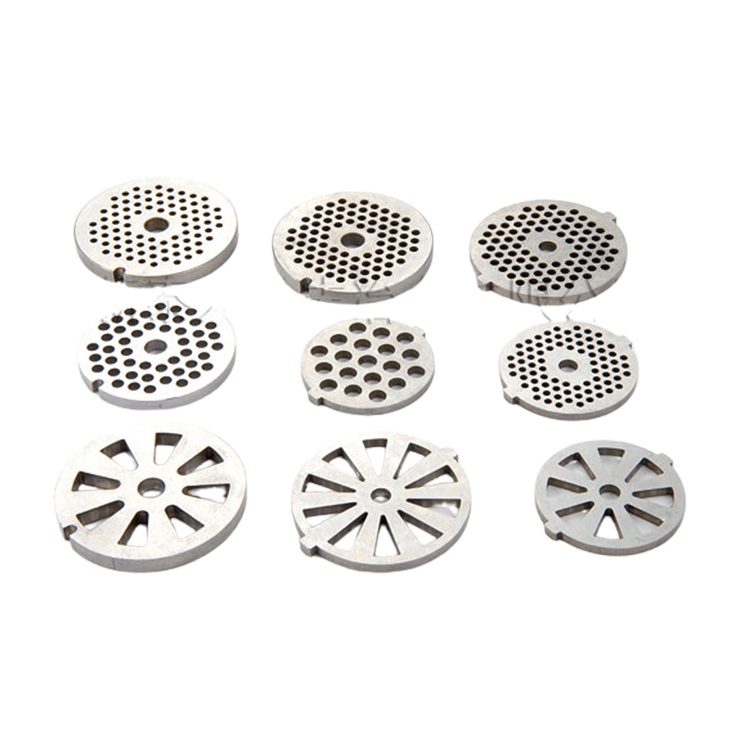

A grinder cutting system combines a moving cutting element with a perforated plate.
The reference group includes different cutting and plate patterns, not a single universal assembly.
Structure & Mating Interfaces
Provide the knife and plate as a mating set, including drive shape, seating and working direction.
Hole pattern and cutting-face contact should be defined separately.
Engineering Focus
Why is knife-to-plate contact a paired requirement?
The working relationship depends on two manufactured surfaces and their mounting.
Inspecting each independently does not fully describe their contact after assembly.
A paired review makes the required relationship explicit and identifies which final surfaces need particular control.
Manufacturing Route & Finishing
Review production of the blank, openings and final cutting surfaces as distinct steps.
Flatness and the working edge may require machining or grinding after forming.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the required grade or performance criteria together with cleaning, wear and appearance requirements.
For any surface that contacts food or beverage, identify the applicable customer documentation and acceptance criteria.
A stainless label is not a complete contact specification.
Review material-selection information →Quality & Sample Approval
Check the mating contact, hole or blade pattern, drive fit and edges.
Include cleaning and any project-specific material or contact documentation.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Why should the knife and plate be reviewed together?
Their contact and relative geometry create the cutting action; reviewing only one part can miss a seating or working-face mismatch.
Why is knife-to-plate contact a paired requirement?
The working relationship depends on two manufactured surfaces and their mounting. Inspecting each independently does not fully describe their contact after assembly. A paired review makes the required relationship explicit and identifies which final surfaces need particular control.
How should fit and operating behavior be approved?
Check the mating contact, hole or blade pattern, drive fit and edges. Include cleaning and any project-specific material or contact documentation.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
