Cylindrical bearing interfaces where bore size, wall section, load, lubrication and wear drive the specification.
PM parts can be sized after sintering when dimensional repeatability on a bore or outside diameter is important, subject to part geometry and specification.

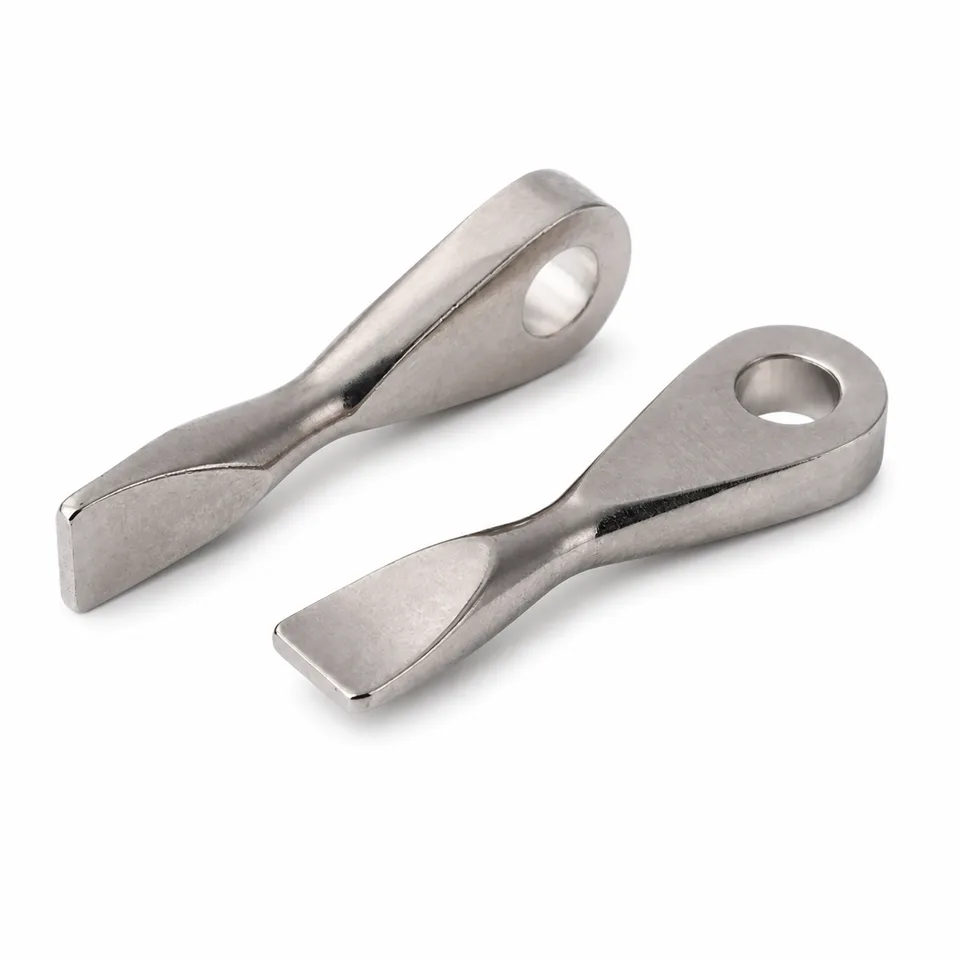

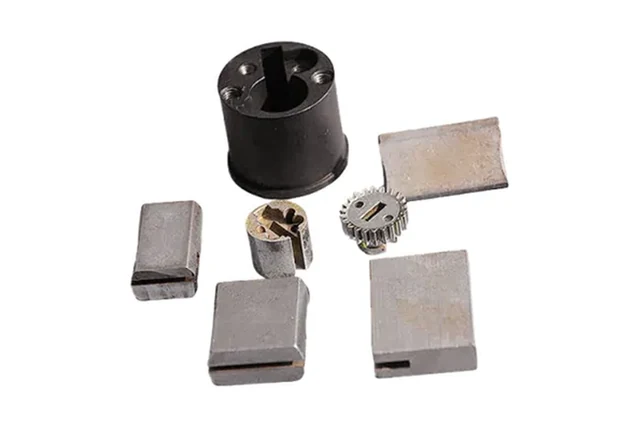

Hubs, blocks, carriers and compact functional shapes that can be pressed along a practical compaction direction.
Near-net-shape PM blanks can keep the bulk geometry economical while machining only threads, cross-holes, sealing faces or precision datums.
Everything on this page is round on the outside or on the inside, which is why they get quoted together. What separates them is not the shape but which surface the specification is written around: a bearing interface is a wear specification, a structural form is a load specification. Below is the boundary between the forms that look closest on a drawing.
| Form in this group | The form it is nearest to | What decides between them |
|---|---|---|
| Plain sleeve | Flanged bushing | The flange decides it. As a locating shoulder it sets the installed height and has to be one pressed part; as a spring seat or a cover it can be a separate washer, and the sleeve stays simple and cheaper. |
| Flanged bushing | Thrust washer beside a plain sleeve | A shared datum decides it. Once the bore axis and the flange face are called out relative to each other, pressing them as one part is what makes that control possible at all; if the two faces are specified independently, one part buys nothing. |
| Sized bore | As-sintered bore | The mating part decides it. Sizing buys repeatability on a surface a shaft actually runs in; on a clearance passage or an oversized hole it buys nothing but still costs a pass, so look at what goes through the bore rather than at the tolerance block. |
| Bushing | Structural PM part | The governing load decides it. A bushing is specified by contact pressure, sliding speed and wear allowance; a structural part by peak stress in the section. Same powder system, different criterion, so a bushing specification cannot simply be inherited by a hub. |
| Near-net blank with machined interfaces | Fully machined part | Where the cost sits decides it. If the body is essentially a turned form and only two features need a second operation, machining is already the shorter route; sintering competes when the bulk itself is the expensive part, not the tolerances. |
Note. These are functional boundaries, not process recommendations. A part that sits close to one is usually the one worth sending with an assembly view, because the surrounding parts decide which side of the line it belongs on.
| Review area | Information to define | Manufacturing decision |
|---|---|---|
| Bearing interface | Housing fit, shaft tolerance, running clearance, bearing length and installation method. | Assess whether sizing, bore finishing or final assembly checks are required. |
| Load & motion | Radial/axial load, speed, oscillating motion, duty cycle and allowable wear. | Review contact pressure and material condition in the actual operating context. |
| Lubrication | Lubricant, temperature, contamination and maintenance expectations. | Oil impregnation is specified and validated when needed; not every PM bushing is self-lubricating. |
| Structural geometry | Pressing direction, wall sections, flanges, transverse holes and density targets. | Identify features that need secondary machining and define critical inspection locations. |
Material & final condition. Iron- or copper-based powder systems are reviewed against bearing duty, density, lubrication and corrosion requirements. Structural PM parts require their own load and material review rather than inheriting a bushing specification. Review material data →
| Part condition | PM fit | What to review |
|---|---|---|
| Simple bushing / sleeve | Often a strong PM screening candidate at repeat volume. | Bore/OD, wall thickness, flange features, load, wear, lubrication and any sizing requirement. |
| Press-friendly structural part | Strong when major features align with compaction direction. | Tool access, density distribution, ejection, unsupported thin sections and transverse features. |
| Cross-holes / undercuts / complex 3D features | May need machining, special tooling, MIM or another route. | Do not force conventional PM if secondary operations or tooling complexity remove the economic benefit. |
| High precision on selected surfaces | PM blank + sizing/machining/grinding may be appropriate. | Identify only the interfaces that truly require tighter control. |
| Low-volume prototype | Direct machining may be more practical. | Tooling economics and qualification cost should be weighed against projected program life. |
Required density and mechanical performance depend on material, geometry, compaction, sintering and load. SINTS reviews these requirements against your drawing and application.
Review geometry, material and volume, identify critical features and clarify the proposed tooling and secondary operations.
Define trial parts, dimensional checks, material confirmation and any customer-required functional approval.
Confirm the approved route, control plan, packaging and repeat-supply requirements for the program.
Drive and pivot support interfaces exposed to dust, moisture and repeated duty.
Application guide →Pivot and gearbox support bushings where wear and clearance affect mechanism feel.
Application guide →Bearing or locating-adjacent components where fit and cycle life matter.
Application guide →Bushings and drive-support parts where wear, filler abrasion and chemical exposure may matter.
Application guide →The retained bushing detail page focuses on bore/OD, load, lubrication, wear, sizing and secondary-machining decisions for sleeve and flanged forms.
Send mating shaft/housing dimensions, load, motion, lubrication, environment, density or material targets and annual quantity.
Practical answers from the drawing review, not from a brochure.
When its acceptance is written as wear, clearance and surface rather than as section strength. The two are reviewed against different specifications, and the drawing usually indicates which one governs the part.
Within a range set by the die, the material and the wall section, and sizing may be needed to reach it. The bore requirement is checked during review and the sizing operation is quoted when it is required.
Density or strength, the bore and its fit, the flange or shoulder relationship, the lubrication arrangement and the load direction. Missing items change the route more often than the outer geometry does.
