What a tool accessory body combines across connection directions
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

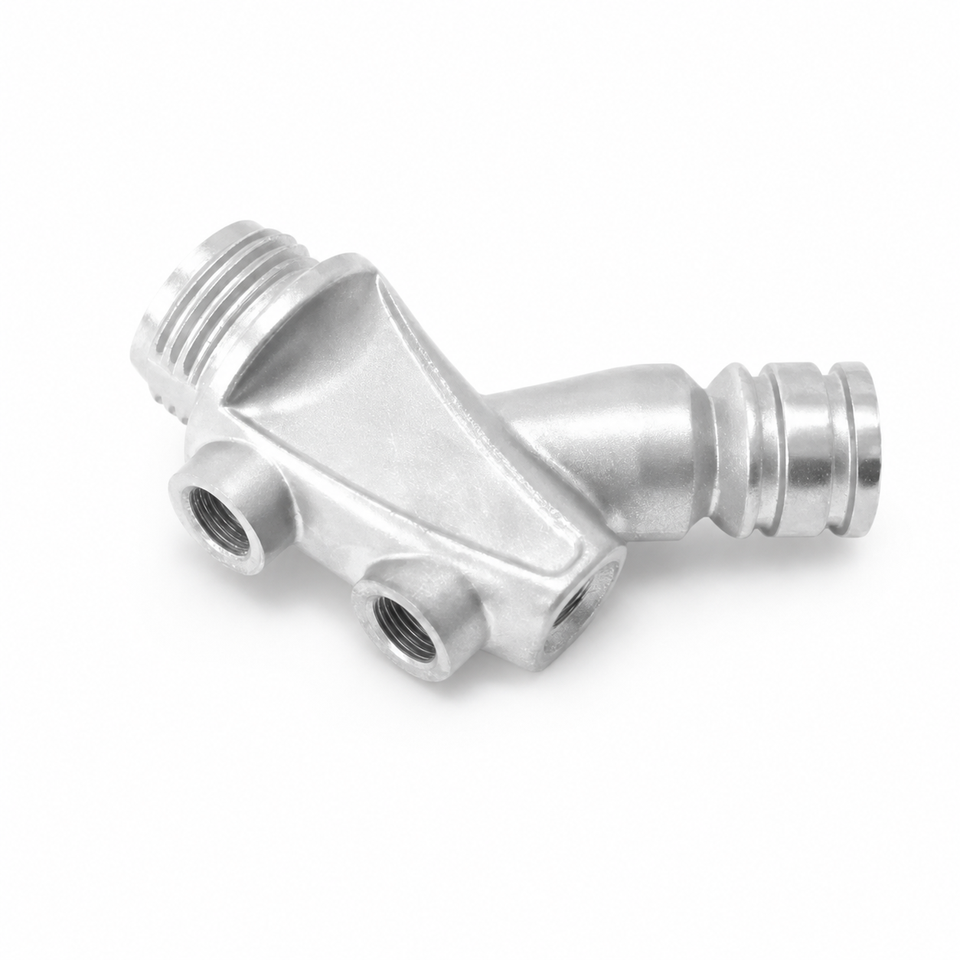

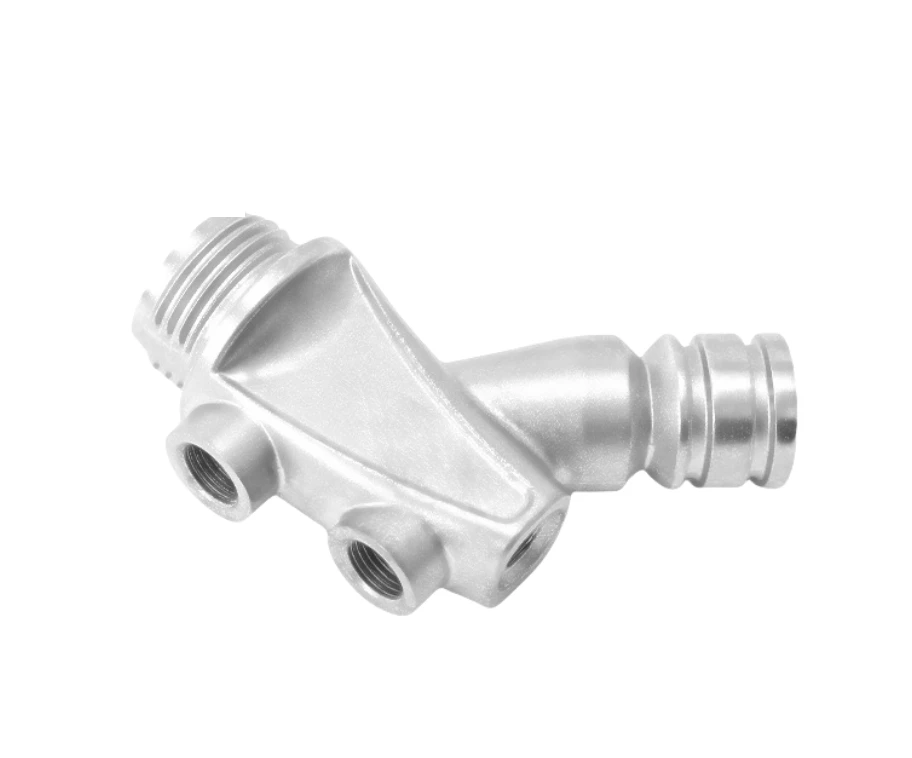

The reference shows an intersecting body whose openings and mounting features need a complete assembly definition.
Connection identity, relative axes and seating interfaces
Identify each connection and its purpose.
Specify their relative axes, seating surfaces and any separate sealing or fastening requirement.
Why specify each connection's function on a multi-port body?
A connection may fasten, locate or carry a specified fluid-related interface.
Similar-looking openings can therefore need different controls.
Identifying the role of each port or bore makes the finishing and inspection requirements clearer than a generic body description.
Near-net body production versus machining of connections
Compare near-net body production with machining of the connection interfaces.
Openings and intersecting features need review for access, inspection and removal of internal burrs.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Tool accessory body material, wear treatment and environment requirements
Define material and final treatment against load direction, wear and the operating environment.
Mark surfaces whose fit or contact changes after finishing.
Rated loads, pressure limits and operating life require their own agreed design and acceptance requirements.
Review material-selection information →Connection location, thread fit and internal-cleanliness checks
Check connection location, thread or fit requirements and any project-defined internal cleanliness.
Verify sealing only where the drawing assigns that function.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →What makes a multi-port accessory body expensive
A body with intersecting connections carries cost in two places at once: the tool that forms the ports, and the machining that makes them true to each other. Both are fixed by the geometry, not by the order size.
| Cost element | Why a small order costs more per piece | Why a large order stops getting cheaper |
|---|---|---|
| The tool, with one core per port | Each port needs a core, and intersecting ports need cores that meet without interfering. Tool cost rises with the number of directions, not with the number of parts produced. | Tooling is one-off. Adding a port later means a tool change, so the port layout should be final before the tool is cut. |
| Machining of port faces and threads | Formed ports are close to final, but sealing faces and threads are cut. Each port is its own set-up and its own per-part time. | Multi-axis machines and combined tools reduce the time per part, but every port still has to be cut. Port count is a permanent multiplier. |
| Leak or pressure testing, where a port carries fluid | A test is per part and takes time regardless of quantity. This line is often underestimated in a first quotation. | Test benches can be automated, but the test itself does not shorten. This is the line where volume helps least on a fluid body. |
| Internal cleaning before packing | Intersecting passages trap machining debris. Cleaning is a batch operation whose time depends on how accessible the passages are. | Batching helps up to the capacity of the cleaning equipment. Accessibility does not improve with volume. |
| Position and angle verification | Checking the relationship between ports needs a fixture or a CMM programme. Small orders still carry the full set-up. | The fixture is reused on repeat orders, so this is a first-order line. Its absence from a later quotation is normal. |
Note. The split below describes cost structure, not prices. What a specific part costs depends on its geometry, material, finish and the quantity you can commit; this page explains which of those you can move and which you cannot.
The port count is the number to argue about before the tool is cut. Every port adds a core, a machined face, a test connection and an inspection relationship. Removing one port that is not needed saves more than any quantity discount, and it is a decision the drawing can still make.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does every connection body need a pressure test?
Only when the component and project requirements establish a pressure or sealing function; it should not be inferred from the outside shape.
Why specify each connection's function on a multi-port body?
A connection may fasten, locate or carry a specified fluid-related interface. Similar-looking openings can therefore need different controls. Identifying the role of each port or bore makes the finishing and inspection requirements clearer than a generic body description.
How should the part be checked in the tool or mechanism?
Check connection location, thread or fit requirements and any project-defined internal cleanliness. Verify sealing only where the drawing assigns that function.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
