Power Tool Gear Components

Power-tool gears transmit motion under a duty that may include starts, reversals or shock.

Sintered planet gears for power tool gearboxes
Product catalog reference. Dimensions, material and supply scope are confirmed from the project drawing.

What power tool gears transmit under varying duty

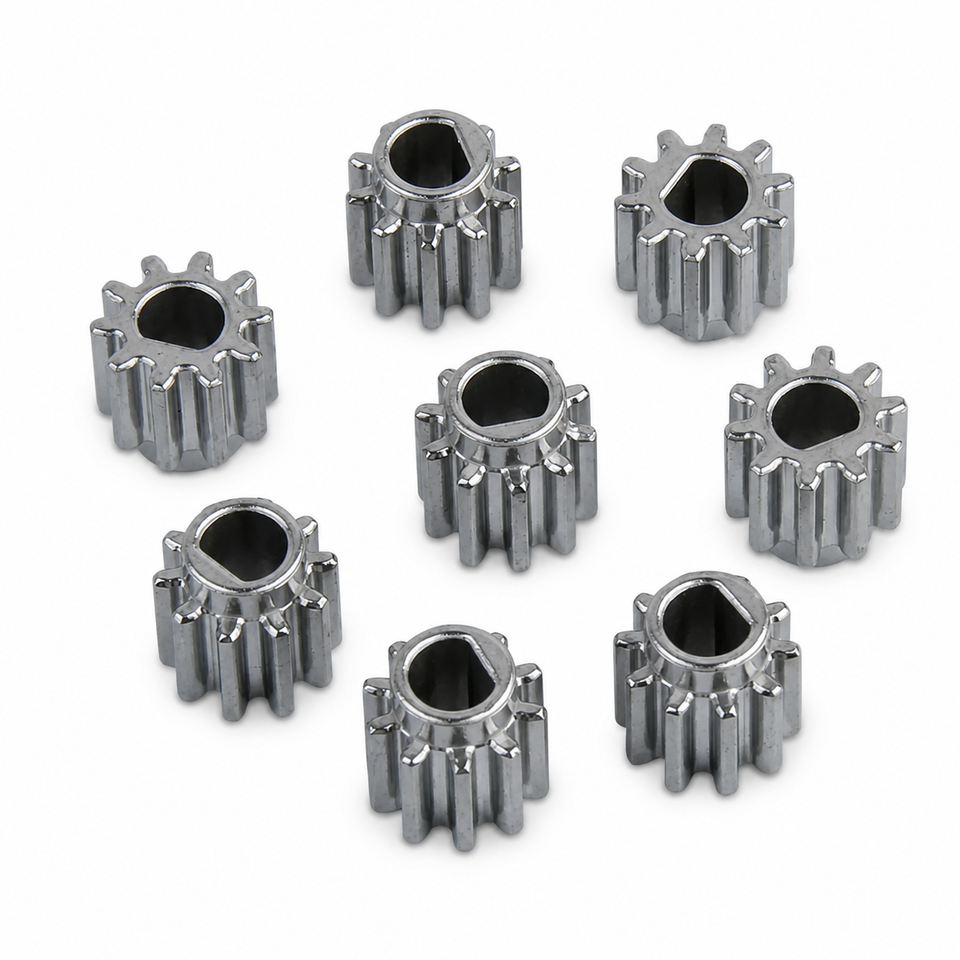

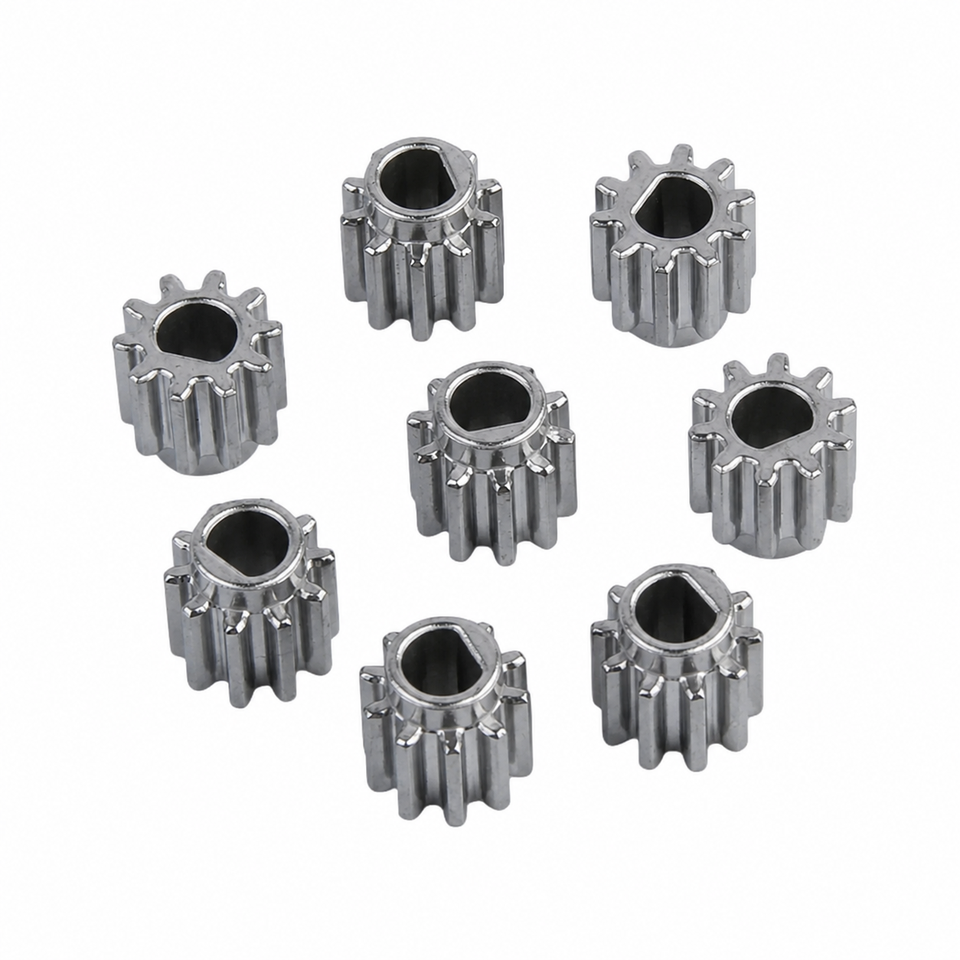

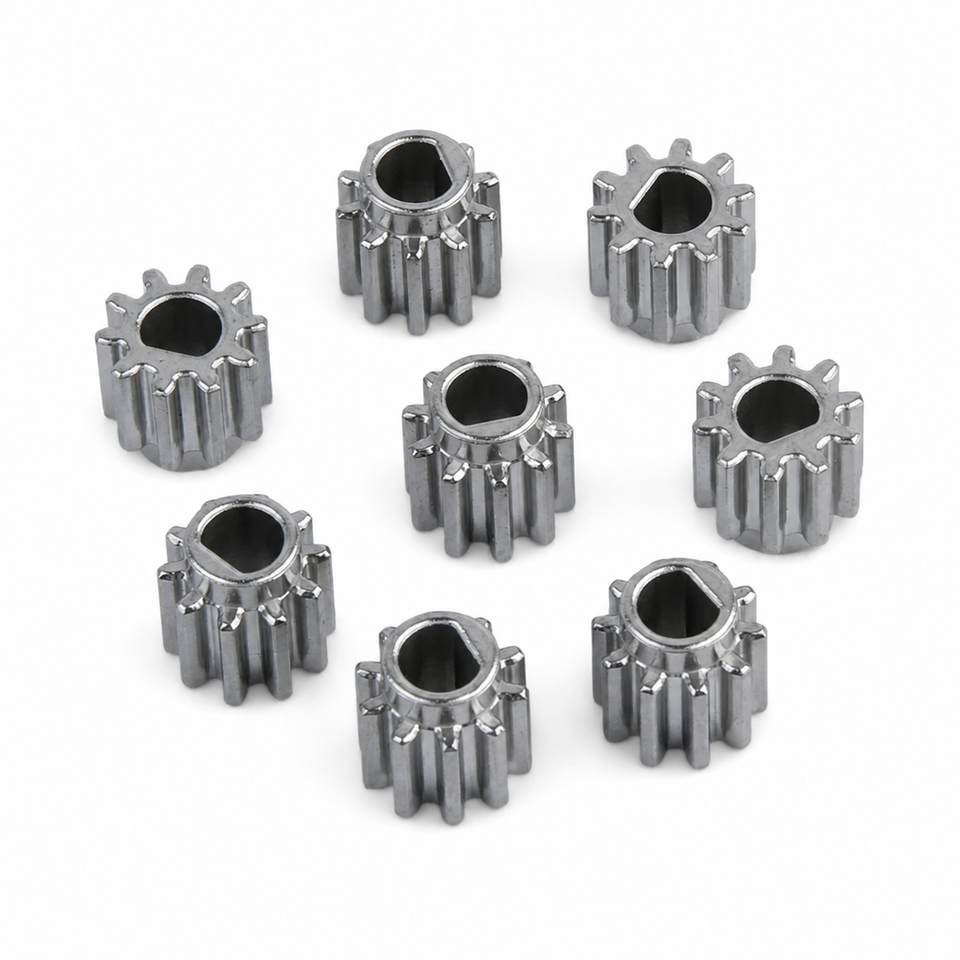

The reference group shows different hub and bore configurations for separate drawing review.

Tooth data, mating gear and operating-duty interfaces

Specify tooth data, mating gear, mounting fit and operating duty.

Include any stops or impact events that affect the required design.

Why describe the duty rather than only the motor size?

The gear sees the transmission's actual operating sequence, including any specified starts, reversals and stops.

A motor description alone leaves those conditions incomplete.

The engineering brief should connect the gear to its mating arrangement and agreed operating requirements.

PM versus gear machining for power tool gears

Compare PM and gear machining for the profile, material and quantity.

Final tooth and bore requirements may call for additional operations after the blank is formed.

Compare manufacturing capabilities →

Power tool gear material, wear treatment and duty requirements

Define material and final treatment against load direction, wear and the operating environment.

Mark surfaces whose fit or contact changes after finishing.

Rated loads, pressure limits and operating life require their own agreed design and acceptance requirements.

Review material-selection information →

Tooth geometry, mounting and operating-test checks

Check tooth geometry, mounting interfaces and the agreed operating test.

Material and treatment records should match the final delivered condition.

Quality documentation →

Power tool gears: the duty cycle sets the material call

A power tool gear is chosen by its load history, not by its drawing alone. Intermittent duty with frequent starts, a stall event or a clutch slip all load the tooth root in ways a steady torque figure does not describe. The material and treatment decision follows from that history.

FeatureWhat it governsHow it is specified and verified
Duty cycle and load peaksWhether the gear needs hardening at all, and whether the root or the flank is the limiting feature.Load case described in the RFQ: continuous torque, peak torque and how often the peak occurs. Material choice follows from it.
Root density after sinteringBending fatigue at the fillet, which is where impact-loaded gears usually fail.Local density target for the root; metallographic section, taken at the fillet rather than the flank.
Bore and shaft fitWhether the gear runs true at speed, and whether it frets on the shaft.Bore diameter and fit class; CMM, with the mating shaft diameter stated so the fit is checked as a pair.
Hub or clutch interfaceTorque transfer without slip, and whether the interface survives a stall.Interface dimensions and any feature that limits slip; functional check on an assembled drive.
Heat treatment distortionWhether the teeth stay inside tolerance after hardening, which is the usual surprise at first article.Distortion allowance agreed before treatment; dimensional check after hardening on the same features that were checked before.

Use the dimensions and acceptance criteria on the project drawing.

Where the duty is continuous and moderate, an unhardened sintered gear is often the cheapest correct answer and should not be over-specified. The case turns against the route when peak torque drives the root stress high enough to need full density, or when the gear is large with a thick rim, where a cut blank with a hardened tooth zone is easier to control than a moulded body.

Compare manufacturing routes →

What to include in your enquiry

  1. Drawing and mating dimensions.Specify tooth data, mating gear, mounting fit and operating duty. Include the drawing revision.
  2. Mating information. Include the assembly references needed to define the interfaces discussed above.
  3. Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
  4. Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
  5. First-sample inspection.Check tooth geometry, mounting interfaces and the agreed operating test. Specify the mating part or inspection fixture.
Send This Component for Review →

Common questions

Can a gear from a steady-running tool be reused in an impact application?

Do not assume so. The changed load history and assembly requirements need a fresh design and manufacturing review.

Why describe the duty rather than only the motor size?

The gear sees the transmission's actual operating sequence, including any specified starts, reversals and stops. A motor description alone leaves those conditions incomplete. The engineering brief should connect the gear to its mating arrangement and agreed operating requirements.

How should the part be checked in the tool or mechanism?

Check tooth geometry, mounting interfaces and the agreed operating test. Material and treatment records should match the final delivered condition.

Process and material references

Manufacturing and material references →

Application and quotation details

  1. Provide tooth definition, shaft connection and locating surfaces.
  2. Distinguish continuous duty from peaks, stalls and impact events.
  3. Agree the final material condition, secondary operations and assembly-level validation responsibilities.

Related guide: Powder Metallurgy Gears: What to Define Before Requesting a Quote

Submit your drawing for a manufacturing-route review →
