PM only when tooling and compaction support the geometry
Some helical gear geometries can be produced by powder metallurgy, but tool design, ejection and density distribution must be assessed rather than assumed.

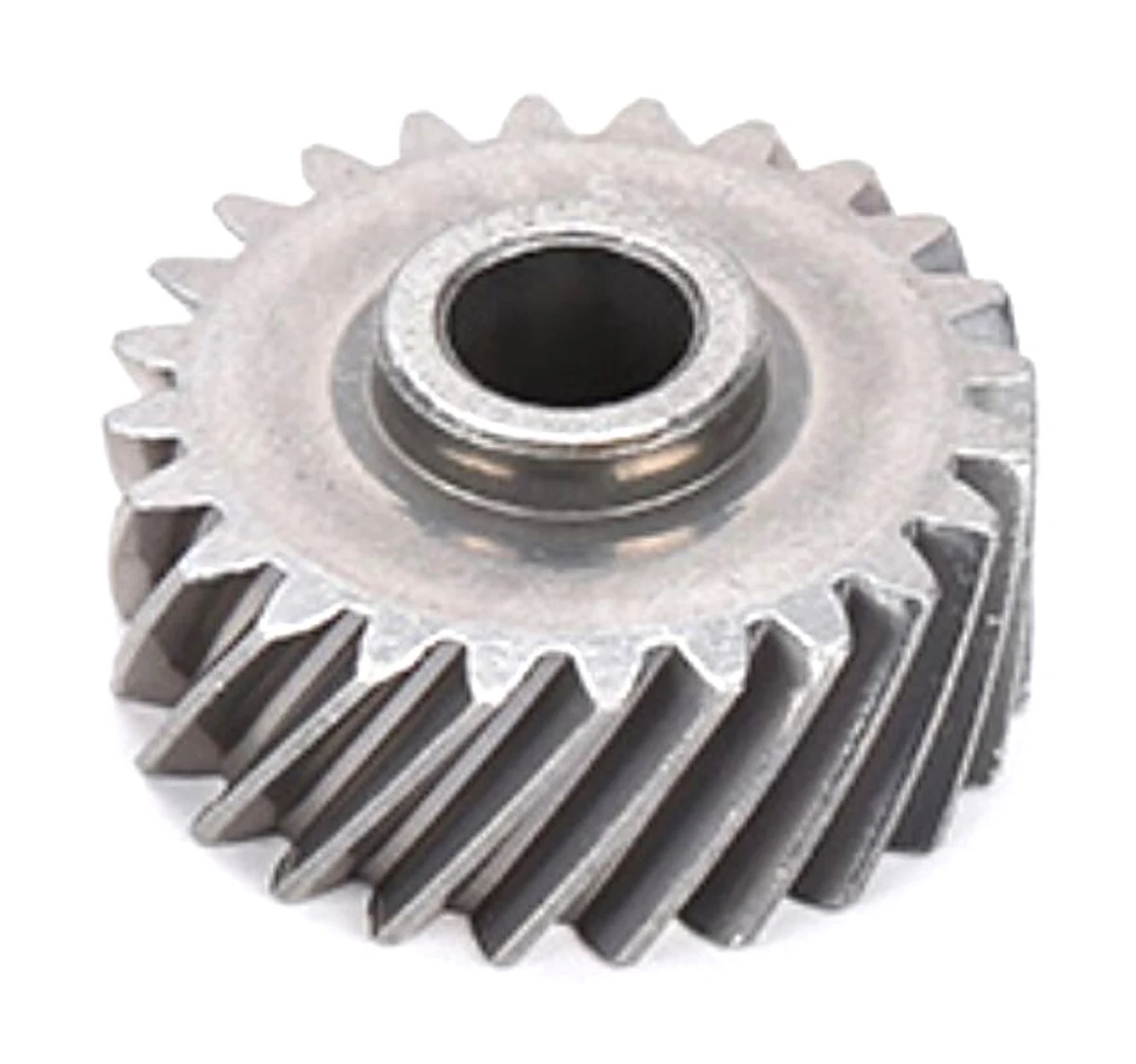

Helical gears add axial force, more complex tooth geometry and tighter alignment considerations than a basic spur gear. SINTS evaluates the drawing, load case and volume before deciding whether a powder route is realistic or machining should remain part of the process.
A helical gear is not simply a spur gear with angled teeth. Helix angle, face width, thrust load, bore-to-tooth alignment and the mating gear all affect manufacturing feasibility. For powder-based routes, the pressing or molding direction and post-sinter distortion also matter. SINTS therefore treats helical gears as engineering-review components rather than off-the-shelf PM parts.
Some helical gear geometries can be produced by powder metallurgy, but tool design, ejection and density distribution must be assessed rather than assumed.
MIM may be relevant when gear geometry is combined with 3D features that would otherwise require multiple machining operations.
When helix, runout, flank accuracy, noise or load requirements exceed sintered capability, machining, hobbing, shaving, grinding or a hybrid route may be required.
For a helical-gear RFQ, SINTS first checks whether the requested geometry and accuracy are compatible with press-and-sinter or molding, then identifies the features that should be sized, machined or otherwise finished. Gear accuracy is defined from the drawing and functional requirement; it is not inferred from a generic PM tolerance.
For a useful first review, send the drawing or 3D model, material target, annual volume, mating-part information, critical dimensions, load or wear conditions, heat-treatment requirements and any surfaces that must be machined or ground.
