Product Overview

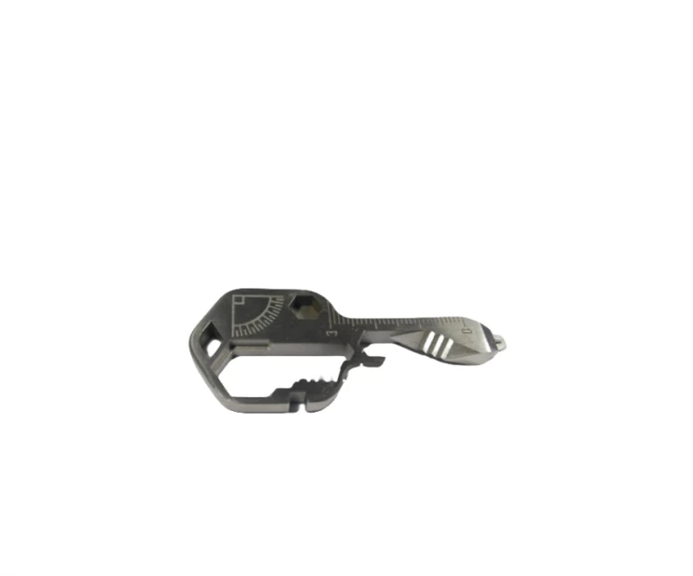

A multi-function tool component can integrate an exterior grip with several engaging profiles.
Each working opening or edge needs its own relationship to the tool's intended tasks.
Structure & Mating Interfaces
Define the functional profiles and their mating fasteners or hardware.
Distinguish working edges from cosmetic contours and any attachment opening.
Engineering Focus
Why inspect each working profile separately?
A multi-function component has several interfaces to different mating items.
Conformity of the outside outline does not verify every engagement.
Listing the working profiles makes their separate geometry and test requirements explicit within one component drawing.
Manufacturing Route & Finishing
Compare MIM, machining and other forming methods for the combined geometry.
Finishing must preserve the working profiles rather than simply smoothing the whole part.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Define material and final treatment against load direction, wear and the operating environment.
Mark surfaces whose fit or contact changes after finishing.
Rated loads, pressure limits and operating life require their own agreed design and acceptance requirements.
Review material-selection information →Quality & Sample Approval
Check each specified engagement, accessible edges and material condition.
Any torque or retention requirement needs an agreed test for the intended function.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can a general outside-profile inspection verify all tool functions?
No. Each working opening or edge must be checked against its specified mating geometry and acceptance requirement.
Why inspect each working profile separately?
A multi-function component has several interfaces to different mating items. Conformity of the outside outline does not verify every engagement. Listing the working profiles makes their separate geometry and test requirements explicit within one component drawing.
How should the part be checked in the tool or mechanism?
Check each specified engagement, accessible edges and material condition. Any torque or retention requirement needs an agreed test for the intended function.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
