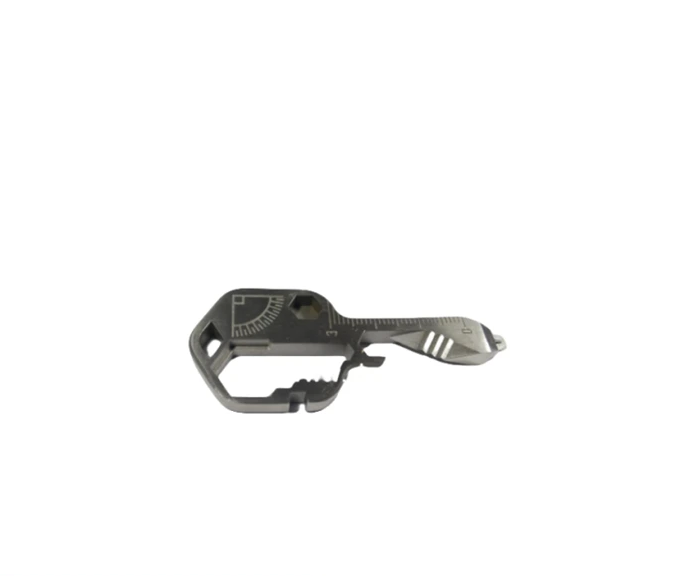

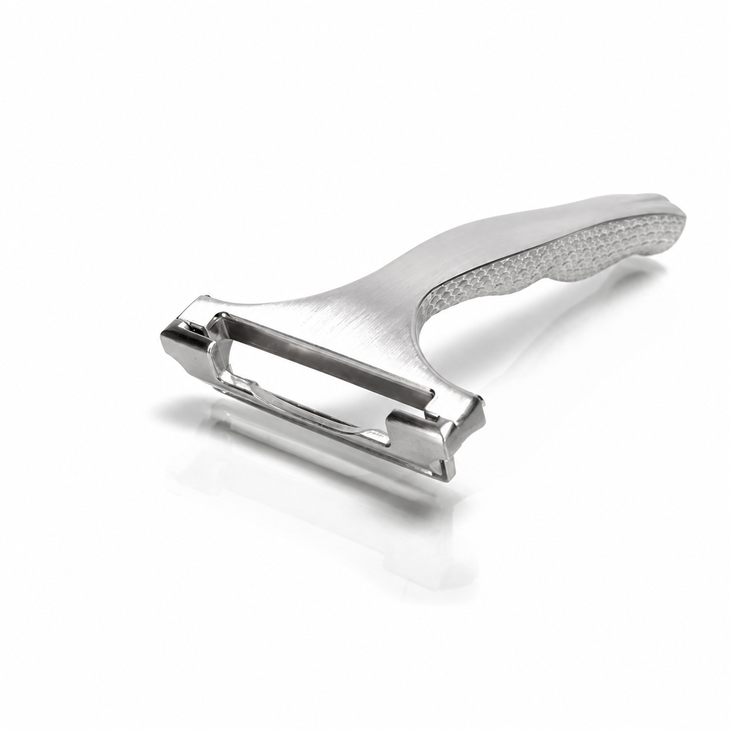

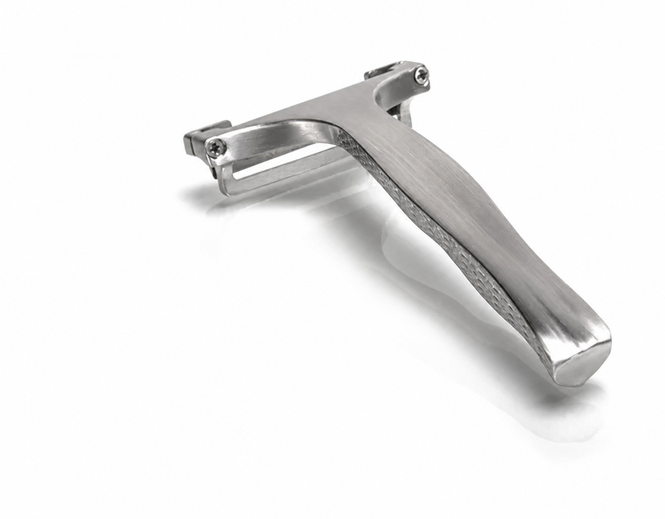

What a multi-function tool component integrates in one body
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
Each working opening or edge needs its own relationship to the tool's intended tasks.
Functional profiles, mating fasteners and hardware interfaces
Define the functional profiles and their mating fasteners or hardware.
Distinguish working edges from cosmetic contours and any attachment opening.
Why inspect each working profile separately?
A multi-function component has several interfaces to different mating items.
Conformity of the outside outline does not verify every engagement.
Listing the working profiles makes their separate geometry and test requirements explicit within one component drawing.
MIM versus machining for combined tool geometry
Compare MIM, machining and other forming methods for the combined geometry.
Finishing must preserve the working profiles rather than simply smoothing the whole part.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Multi-function tool material, wear treatment and environment requirements
Define material and final treatment against load direction, wear and the operating environment.
Mark surfaces whose fit or contact changes after finishing.
Rated loads, pressure limits and operating life require their own agreed design and acceptance requirements.
Review material-selection information →Engagement, accessible-edge and material-condition checks
Check each specified engagement, accessible edges and material condition.
Any torque or retention requirement needs an agreed test for the intended function.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →What sets cost on a multi-function tool part
A part that performs several jobs carries one tool but several finishing requirements. The tool is paid once; the working edges are paid on every part, and each one is a separate operation.
| Cost element | Why a small order costs more per piece | Why a large order stops getting cheaper |
|---|---|---|
| The forming tool | Several working profiles in one body mean several tool details, and each needs its own clearance and its own polish. Tool cost reflects the number of functions, not the number of parts. | Tooling is one-off. Adding a function later is a tool change, so the function set should be closed before the tool is cut. |
| Stainless feedstock | Stainless feedstock costs more than iron-based and needs a sintering cycle suited to the grade. Both raise the material line before any feature is made. | Material tracks the alloy market. A cheaper grade is a design decision, not a volume decision, and it has to be checked against the corrosion requirement. |
| Grinding or honing of each working edge | Every working edge is finished separately, either on a machine or by hand. This is the line that multiplies with the number of functions. | Automation is possible per edge, but the count stays. A part with three working edges will always cost more to finish than a part with one. |
| Heat treatment | Hardening runs as a batch. A small order shares a load and waits for the right companion work, which affects lead time as much as price. | The cycle is fixed. A full load is the cheapest state, and it is reached quickly at any reasonable volume. |
| Verification per function | Each function is checked against a different mating item, so the inspection plan is a set of checks rather than one. | The checks are quick once fixtures exist. What does not shrink is the number of checks, which is why a multi-function part stays a documentation-heavy part at any volume. |
Note. The split below describes cost structure, not prices. What a specific part costs depends on its geometry, material, finish and the quantity you can commit; this page explains which of those you can move and which you cannot.
The number of functions is the cost driver, and the drawing controls it. Merging two functions into one edge, or dropping a function that the user never employs, removes a tool detail, a finishing operation and an inspection item at the same time. That is a larger saving than any quantity break.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can a general outside-profile inspection verify all tool functions?
No. Each working opening or edge must be checked against its specified mating geometry and acceptance requirement.
Why inspect each working profile separately?
A multi-function component has several interfaces to different mating items. Conformity of the outside outline does not verify every engagement. Listing the working profiles makes their separate geometry and test requirements explicit within one component drawing.
How should the part be checked in the tool or mechanism?
Check each specified engagement, accessible edges and material condition. Any torque or retention requirement needs an agreed test for the intended function.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
