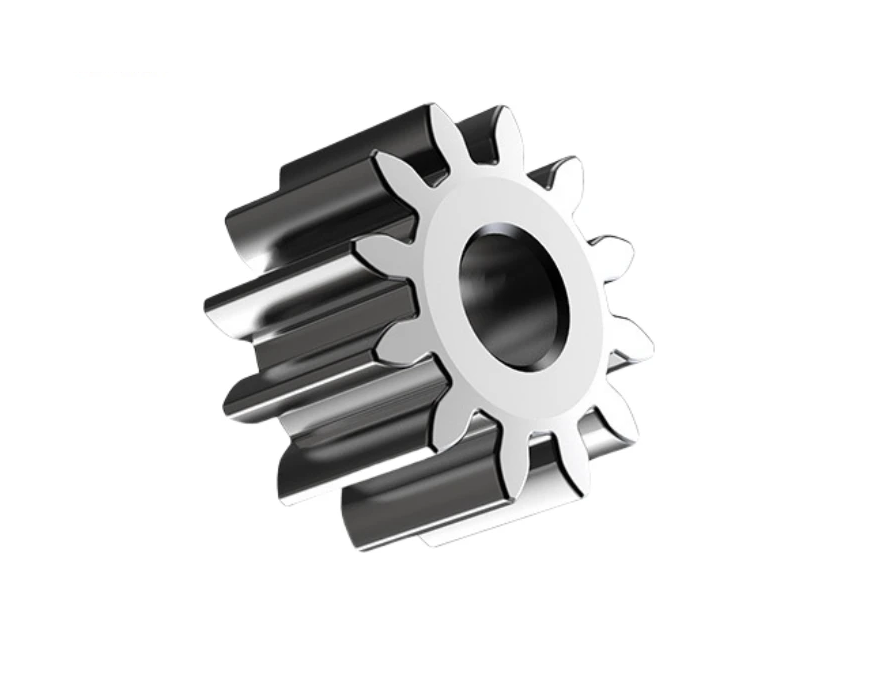

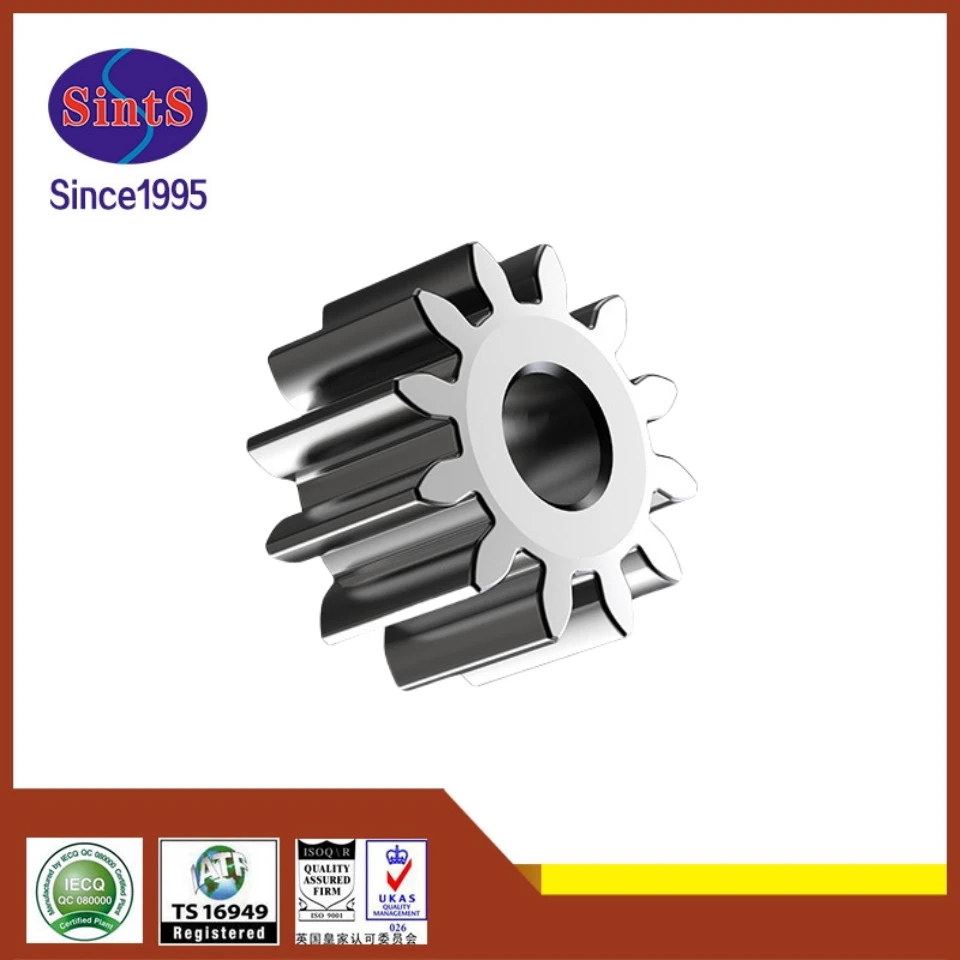

Why an iron-based gear needs a defined material system
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
Tooth and mounting data remain essential.
Full gear geometry, mating arrangement and load interfaces
Provide the full gear geometry, mating arrangement and load conditions.
State the material specification or the property requirements used for route selection.
Why specify more than a broad iron-based material description?
The material family does not identify a single composition or delivered condition.
A clear specification is needed to compare production routes and inspect the resulting part.
This prevents different technical proposals from being treated as equivalent on name alone.

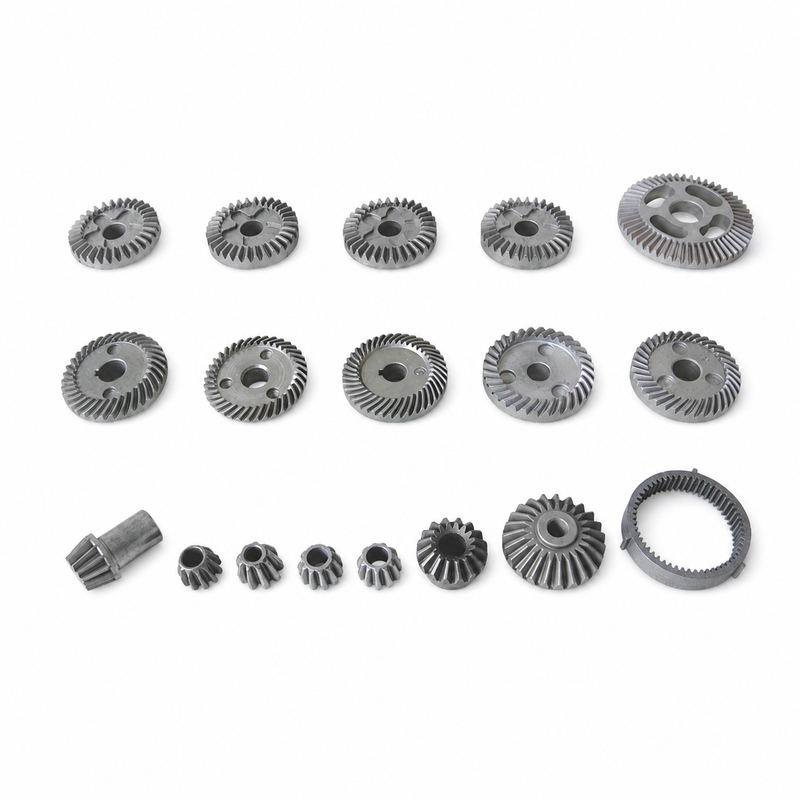

PM versus other gear-production methods by section
Compare PM and other gear-production methods for the actual section and volume.
Density or heat-treatment requirements, where applicable, must be agreed with the selected process.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Iron-based gear material, density and treatment requirements
Define material and final treatment against load direction, wear and the operating environment.
Mark surfaces whose fit or contact changes after finishing.
Rated loads, pressure limits and operating life require their own agreed design and acceptance requirements.
Review material-selection information →Gear chain: centre distance first, then tooth form
An iron-based gear description is a material family, not a specification. Before the tooth geometry can mean anything, the chain has to start from the centre distance it has to run at, because that is the link that decides whether the pair meshes correctly.
| Link in the assembly chain | What it adds to the stack | Where to take it out of the chain |
|---|---|---|
| Centre distance in the pair | This is the link that matters most and is most often missing. A gear made perfectly to its own drawing will still run badly if the centre distance it is mounted at does not match the one the tooth form was cut for. | State the centre distance and the mating gear on this drawing. Tooth geometry without it describes a part but not a mesh, and a mesh is what the customer is buying. |
| Tooth geometry | Profile, lead and index errors each act on a different part of the contact. Index error shows as transmission noise; lead error shows as edge loading. | Decide which of the two the application punishes, and specify that one explicitly. A general gear quality callout covers both at a level neither may need. |
| Bore and hub relationship | The bore is the axis reference and the teeth are the output. Their relationship is the link that converts rotation into motion without runout. | Reference the tooth form to the bore, never the reverse. Boring from the teeth re-establishes the datum after the fact and leaves the runout in the wrong place. |
| Material specification | Iron-based covers a range of compositions and densities with different strength and wear behaviour. Two parts made to the same drawing under two interpretations are not the same gear. | State the specification or the required properties, not the family name. The family name is a starting point for a conversation and not an instruction to a press. |
| Density and treatment | Density sets what the tooth root can carry and how much the part moves during sintering. Treatment then changes both dimensions and strength. | Specify density as a range against the tooth region, and sequence the treatment after any sizing. Reversing that order is how a gear measures well and then changes after heat treatment. |
Note. The links below describe how error accumulates in an assembly, not how to allocate tolerance for a specific drawing. Which link should carry the accumulation is a design decision that belongs to whoever owns the assembly; the supplier can only hold what the drawing names. Nothing here states an achievable tolerance for any dimension.
For a gear the shortest path to a usable quotation is a drawing that names the mating gear and the centre distance. Without those two facts every tooth dimension is a shape description, and shape descriptions cannot be checked against a function.
Tooth, bore and face-relationship checks
Inspect teeth, bore and face relationships along with the specified material evidence.
Verify the agreed gear or assembly acceptance requirements.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does iron-based specify one standard gear material?
No. It is a broad description; define the material grade, final condition or required properties for the project.
Why specify more than a broad iron-based material description?
The material family does not identify a single composition or delivered condition. A clear specification is needed to compare production routes and inspect the resulting part. This prevents different technical proposals from being treated as equivalent on name alone.
How should the part be checked in the tool or mechanism?
Inspect teeth, bore and face relationships along with the specified material evidence. Verify the agreed gear or assembly acceptance requirements.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
