What power tool gears transmit under varying duty
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

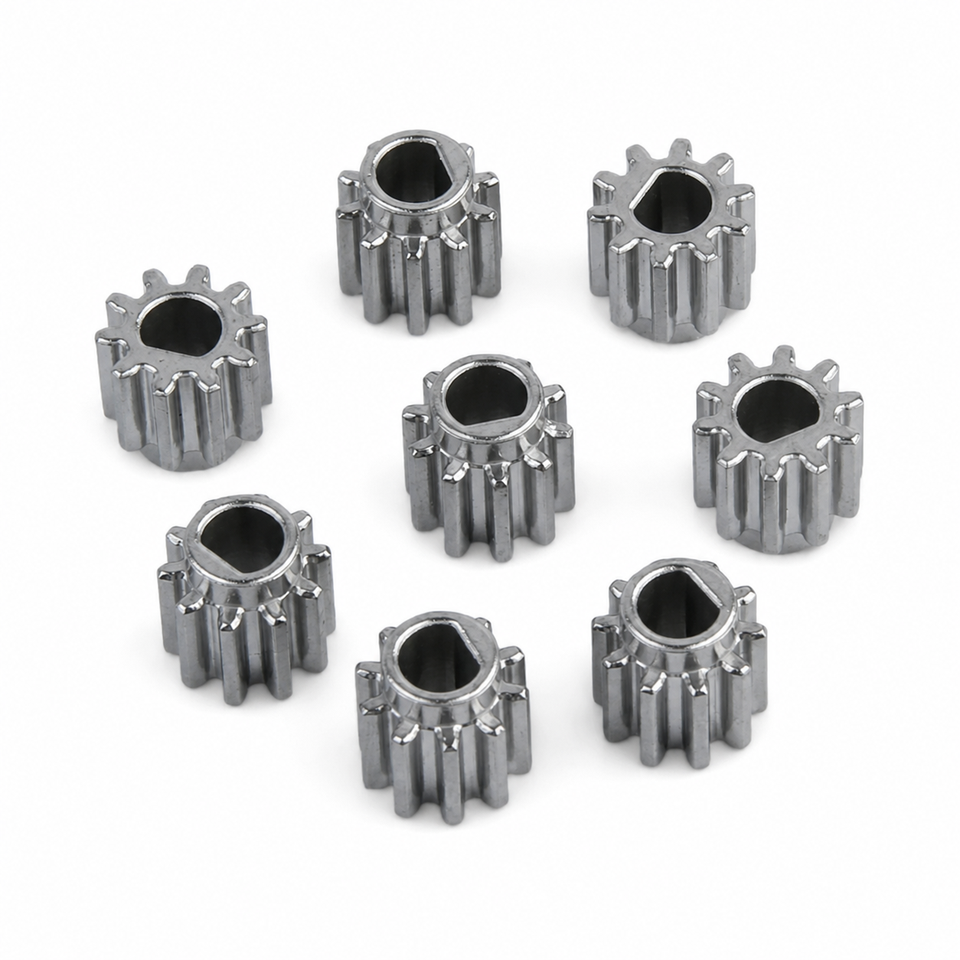

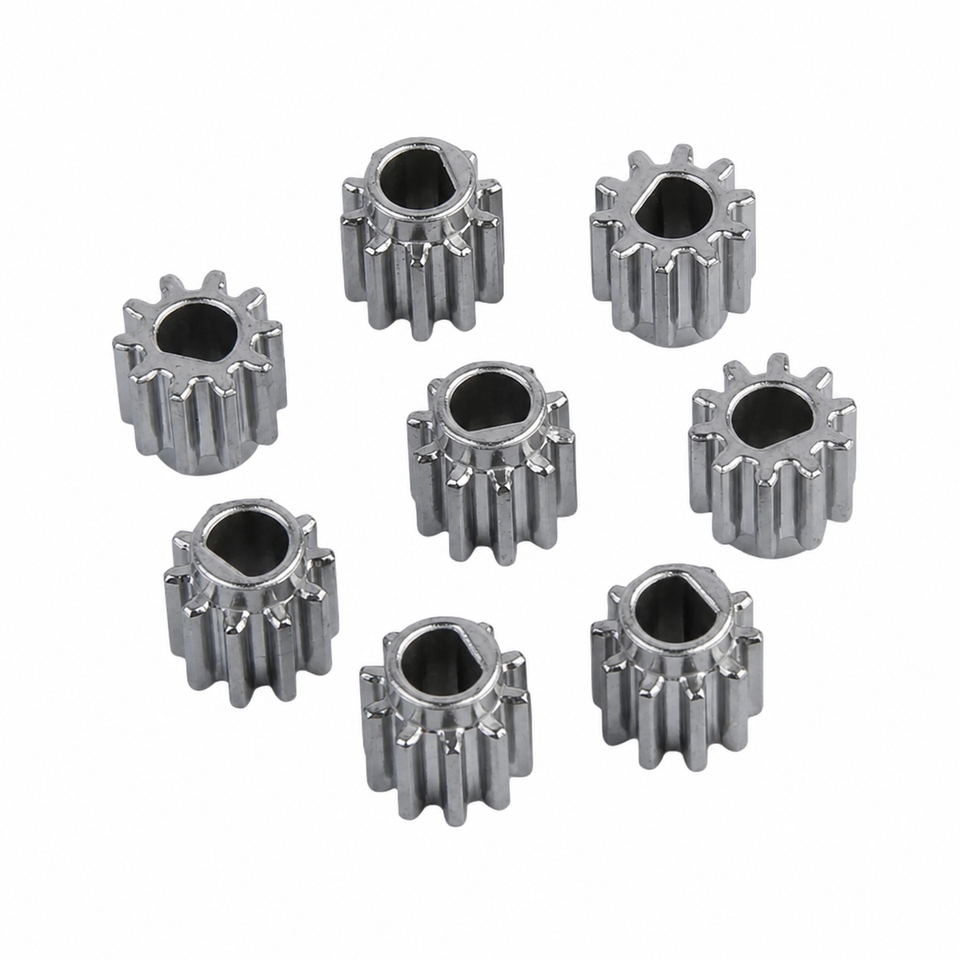

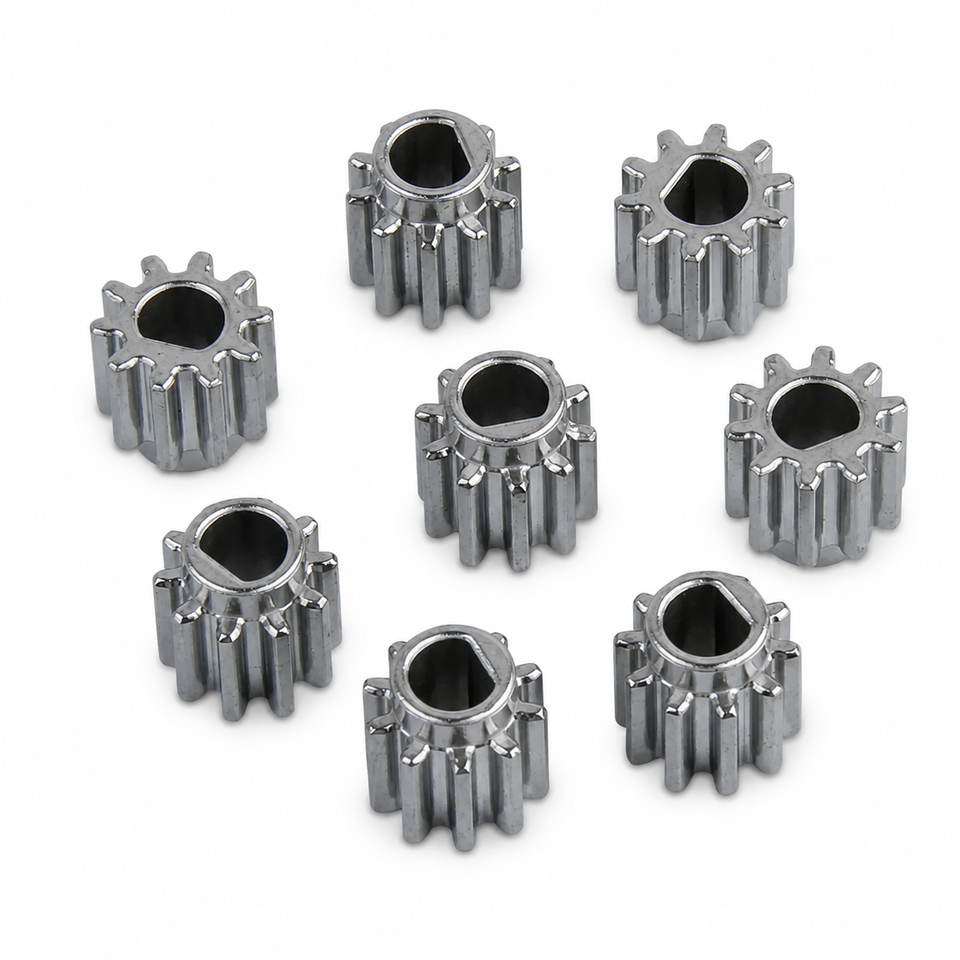

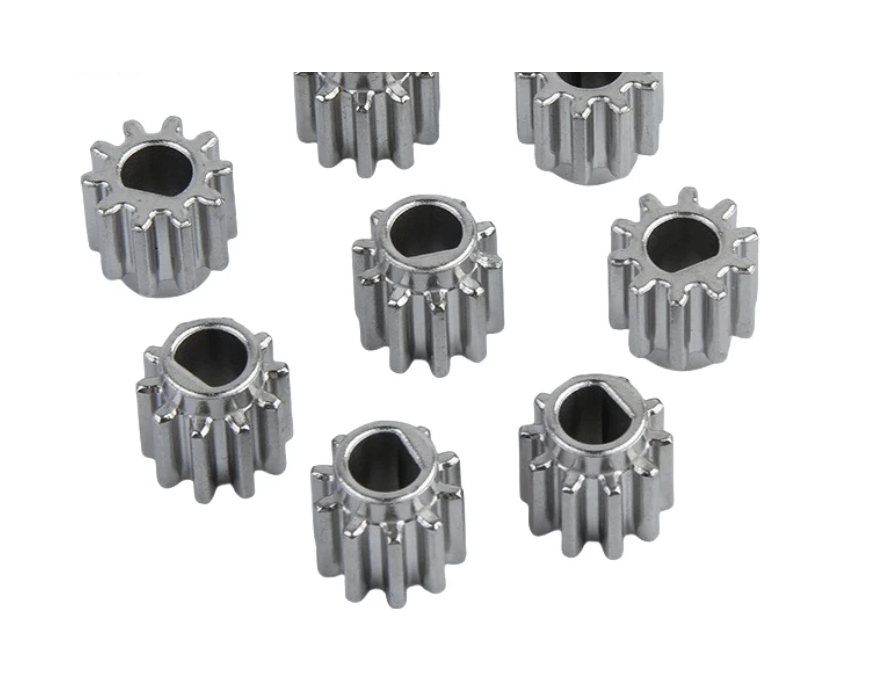

The reference group shows different hub and bore configurations for separate drawing review.
Tooth data, mating gear and operating-duty interfaces
Specify tooth data, mating gear, mounting fit and operating duty.
Include any stops or impact events that affect the required design.
Why describe the duty rather than only the motor size?
The gear sees the transmission's actual operating sequence, including any specified starts, reversals and stops.
A motor description alone leaves those conditions incomplete.
The engineering brief should connect the gear to its mating arrangement and agreed operating requirements.
PM versus gear machining for power tool gears
Compare PM and gear machining for the profile, material and quantity.
Final tooth and bore requirements may call for additional operations after the blank is formed.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Power tool gear material, wear treatment and duty requirements
Define material and final treatment against load direction, wear and the operating environment.
Mark surfaces whose fit or contact changes after finishing.
Rated loads, pressure limits and operating life require their own agreed design and acceptance requirements.
Review material-selection information →Tooth geometry, mounting and operating-test checks
Check tooth geometry, mounting interfaces and the agreed operating test.
Material and treatment records should match the final delivered condition.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Power tool gears: the duty cycle sets the material call
A power tool gear is chosen by its load history, not by its drawing alone. Intermittent duty with frequent starts, a stall event or a clutch slip all load the tooth root in ways a steady torque figure does not describe. The material and treatment decision follows from that history.
| Feature | What it governs | How it is specified and verified |
|---|---|---|
| Duty cycle and load peaks | Whether the gear needs hardening at all, and whether the root or the flank is the limiting feature. | Load case described in the RFQ: continuous torque, peak torque and how often the peak occurs. Material choice follows from it. |
| Root density after sintering | Bending fatigue at the fillet, which is where impact-loaded gears usually fail. | Local density target for the root; metallographic section, taken at the fillet rather than the flank. |
| Bore and shaft fit | Whether the gear runs true at speed, and whether it frets on the shaft. | Bore diameter and fit class; CMM, with the mating shaft diameter stated so the fit is checked as a pair. |
| Hub or clutch interface | Torque transfer without slip, and whether the interface survives a stall. | Interface dimensions and any feature that limits slip; functional check on an assembled drive. |
| Heat treatment distortion | Whether the teeth stay inside tolerance after hardening, which is the usual surprise at first article. | Distortion allowance agreed before treatment; dimensional check after hardening on the same features that were checked before. |
Note. All dimensions and acceptance criteria are taken from the project drawing. The table lists the points that get reviewed; it does not fix values.
Where the duty is continuous and moderate, an unhardened sintered gear is often the cheapest correct answer and should not be over-specified. The case turns against the route when peak torque drives the root stress high enough to need full density, or when the gear is large with a thick rim, where a cut blank with a hardened tooth zone is easier to control than a moulded body.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can a gear from a steady-running tool be reused in an impact application?
Do not assume so. The changed load history and assembly requirements need a fresh design and manufacturing review.
Why describe the duty rather than only the motor size?
The gear sees the transmission's actual operating sequence, including any specified starts, reversals and stops. A motor description alone leaves those conditions incomplete. The engineering brief should connect the gear to its mating arrangement and agreed operating requirements.
How should the part be checked in the tool or mechanism?
Check tooth geometry, mounting interfaces and the agreed operating test. Material and treatment records should match the final delivered condition.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →Application, manufacturing and RFQ review
Use these points to prepare a review of a similar component. The illustration does not define a standard supply specification.
- Provide tooth definition, shaft connection and locating surfaces.
- Distinguish continuous duty from peaks, stalls and impact events.
- Agree the final material condition, secondary operations and assembly-level validation responsibilities.
Related guide: Powder Metallurgy Gears: What to Define Before Requesting a Quote
Submit your drawing for a manufacturing-route review →
