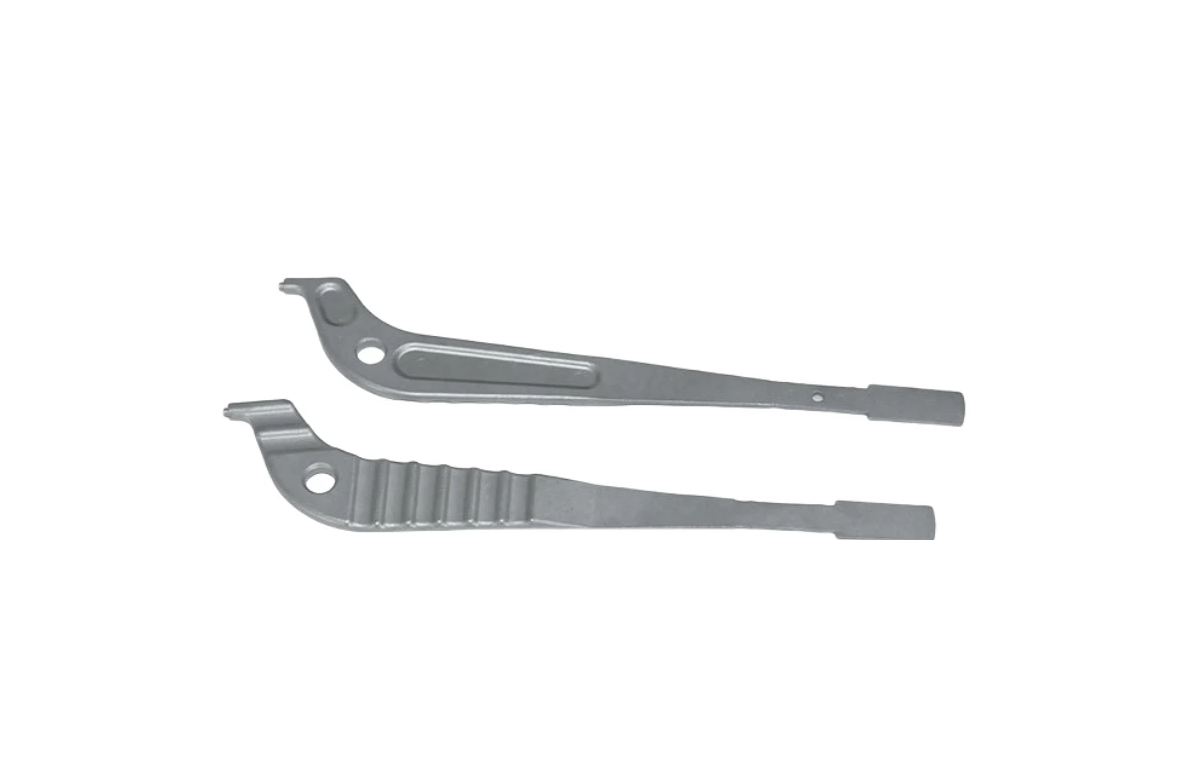

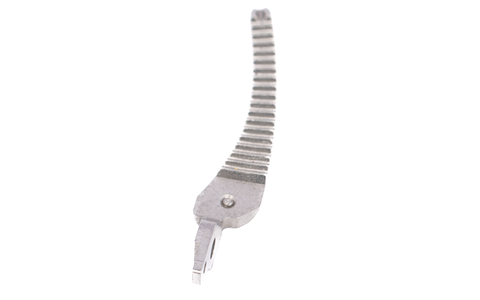

316L-Specified Surgical Knife Handle Parts

A surgical-knife handle component supports a blade connection and a hand-contact body.

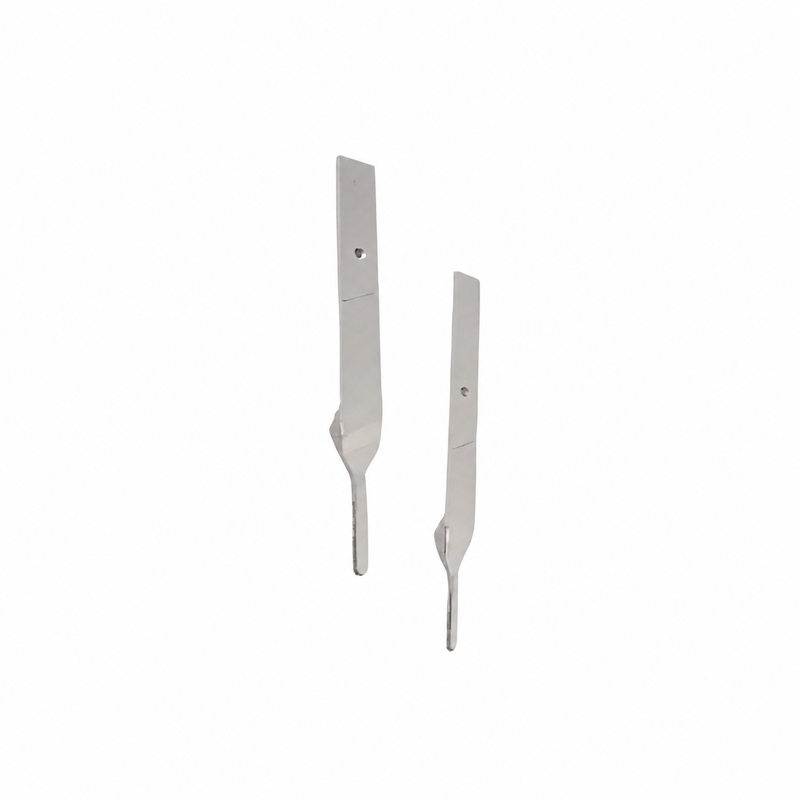

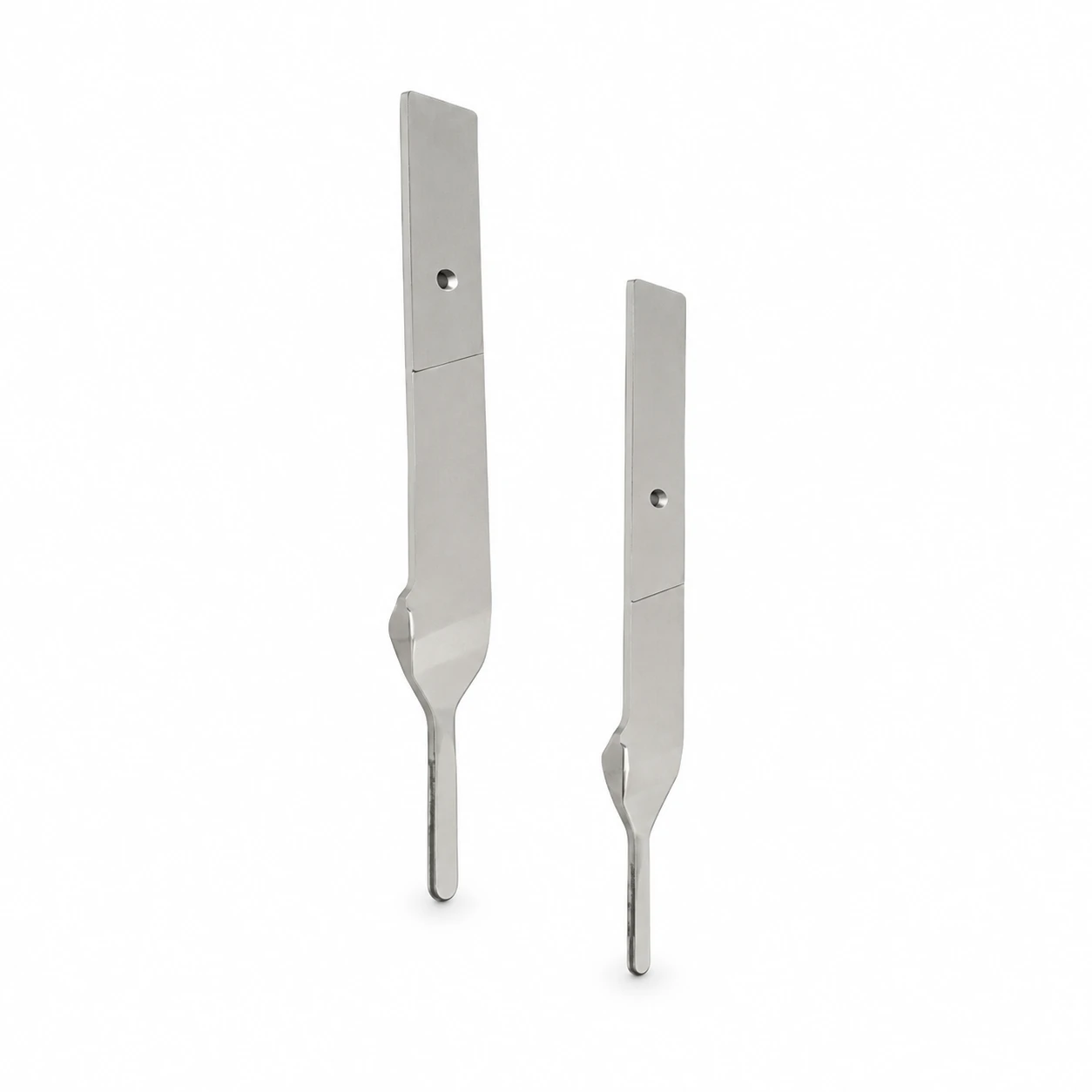

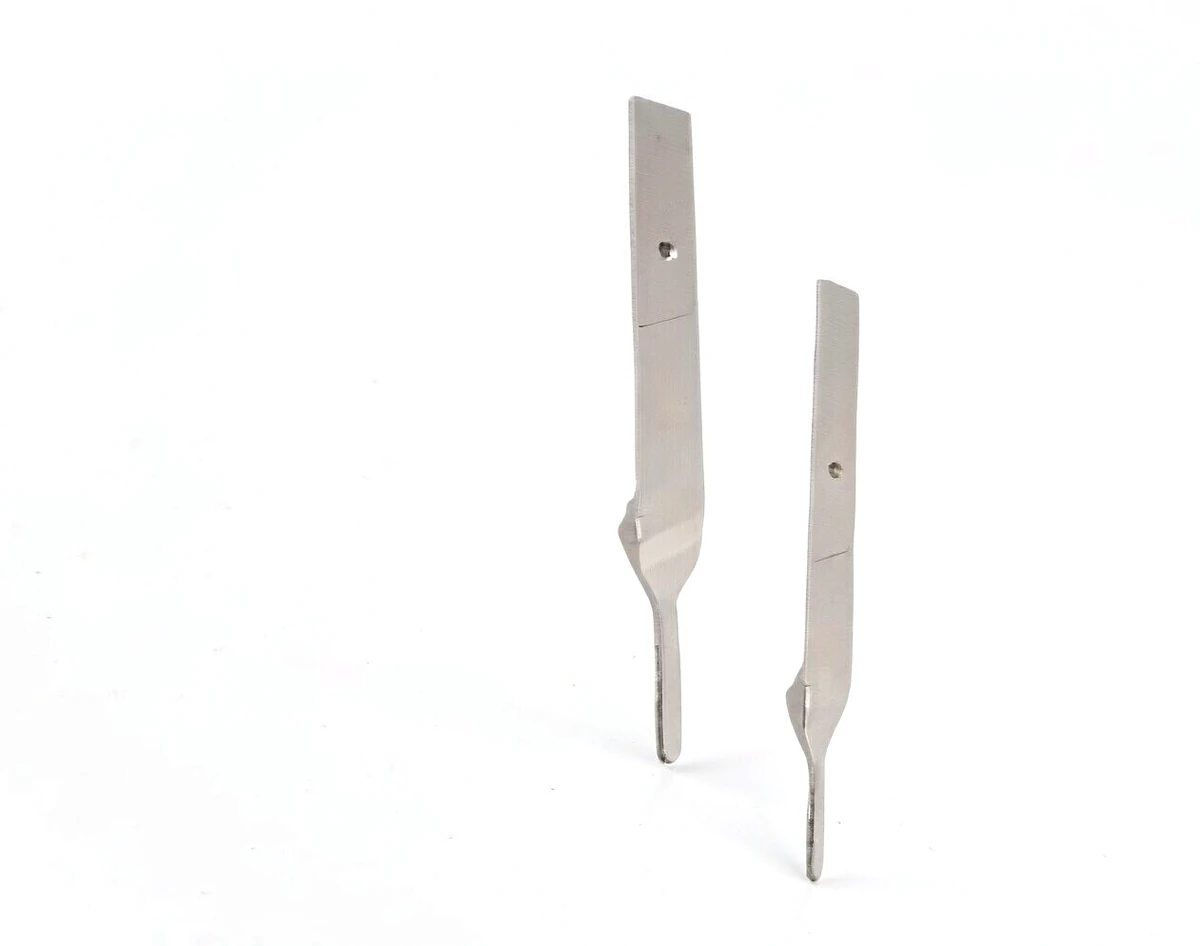

316L stainless steel surgical scalpel handles with blade mounting slots
Product catalog reference. Dimensions, material and supply scope are confirmed from the project drawing.

What a surgical knife handle supports between blade and hand

The page concerns the metal handle drawing, not a supplied blade or an approved complete device.

Blade interface, retaining geometry and handle-profile interfaces

Specify the blade interface, retaining geometry and handle profile.

Mark user-contact edges and the surfaces that control blade position or retention.

Why define the blade interface separately from the handle body?

The hand-contact body and blade connection serve different purposes.

The mating blade reference establishes the required retention and position, while exterior criteria address handling and finish.

A complete component drawing should make both sets of requirements visible.

Machining and forming with explicit blade-connection finishing

Compare machining and forming for the body with explicit finishing of the blade connection.

Confirm the material specification and any surface requirements independently of the catalog label.

Compare manufacturing capabilities →

316L handle material, surface and traceability requirements

Provide the material specification, final surface requirements and documentation needed for the component.

Include your cleaning and traceability requirements and the checks you need us to document.

Tell us which component records your device qualification requires.

Review material-selection information →

Blade-interface fit, handle-edge and final-finish checks

Check blade-interface fit using the specified mating reference, handle edges and final finish.

Include the required material, cleaning and traceability documentation.

Quality documentation →

Surgical knife handles: the blade interface is the whole part

A knife handle is mostly a shape to hold, but the part is accepted or rejected at the blade slot. If the blade rocks, if the retention tab relaxes, or if the slot sits out of plane, the instrument fails in the hand regardless of how well the body was made.

FeatureWhat it governsHow it is specified and verified
Blade slot width, depth and spring tabWhether the blade seats without rock and stays seated during use.Slot dimensions and tab geometry on the drawing; go/no-go check with the specified blade, not a gauge alone.
Tab deflection and retentionWhether the blade can be fitted and released repeatedly without the tab taking a set.Deflection range stated as a functional requirement; fit-and-release cycling on a sample before approval.
Flatness across the blade regionBlade plane alignment, and whether the cutting edge tracks as intended.Flatness over the blade region specifically, not the whole body; surface plate or CMM.
Edge break and burr limitsHandling safety and cleanability at the slot and along the body.Edge criteria by zone; magnification inspection, with the slot treated as a separate zone.
Passivation and surface roughnessCorrosion resistance and cleaning, both driven by surface condition after finishing.Passivation to the agreed standard plus a roughness callout; both recorded before release.

Use the dimensions and acceptance criteria on the project drawing.

Where the handle is a simple flat profile with a single slot, stamping and a finishing operation is faster and cheaper than moulding. The moulding case appears when the body carries an integrated finger contour, a textured grip and a retention feature in one piece. Where the slot has to hold a very tight blade fit, cutting or coining that feature after sintering is usually the more controllable route.

Compare manufacturing routes →

What to include in your enquiry

  1. Drawing and mating dimensions.Specify the blade interface, retaining geometry and handle profile. Include the drawing revision.
  2. Mating information. Include the assembly references needed to define the interfaces discussed above.
  3. Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
  4. Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
  5. First-sample inspection.Check blade-interface fit using the specified mating reference, handle edges and final finish. Specify the mating part or inspection fixture.
Send This Component for Review →

Common questions

Is the blade included with this handle reference?

No. Blade supply and compatibility must be explicitly defined; the component quotation concerns the agreed handle scope.

Why define the blade interface separately from the handle body?

The hand-contact body and blade connection serve different purposes. The mating blade reference establishes the required retention and position, while exterior criteria address handling and finish. A complete component drawing should make both sets of requirements visible.

What must the sample approval requirements define?

Check blade-interface fit using the specified mating reference, handle edges and final finish. Include the required material, cleaning and traceability documentation.
