What grip and connection parts join in a medical instrument
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

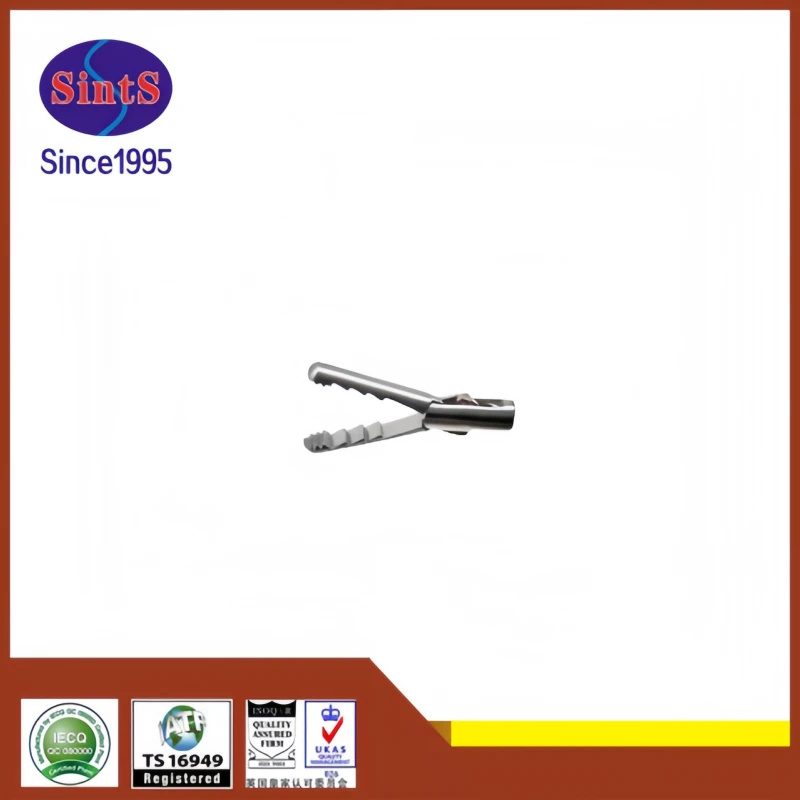

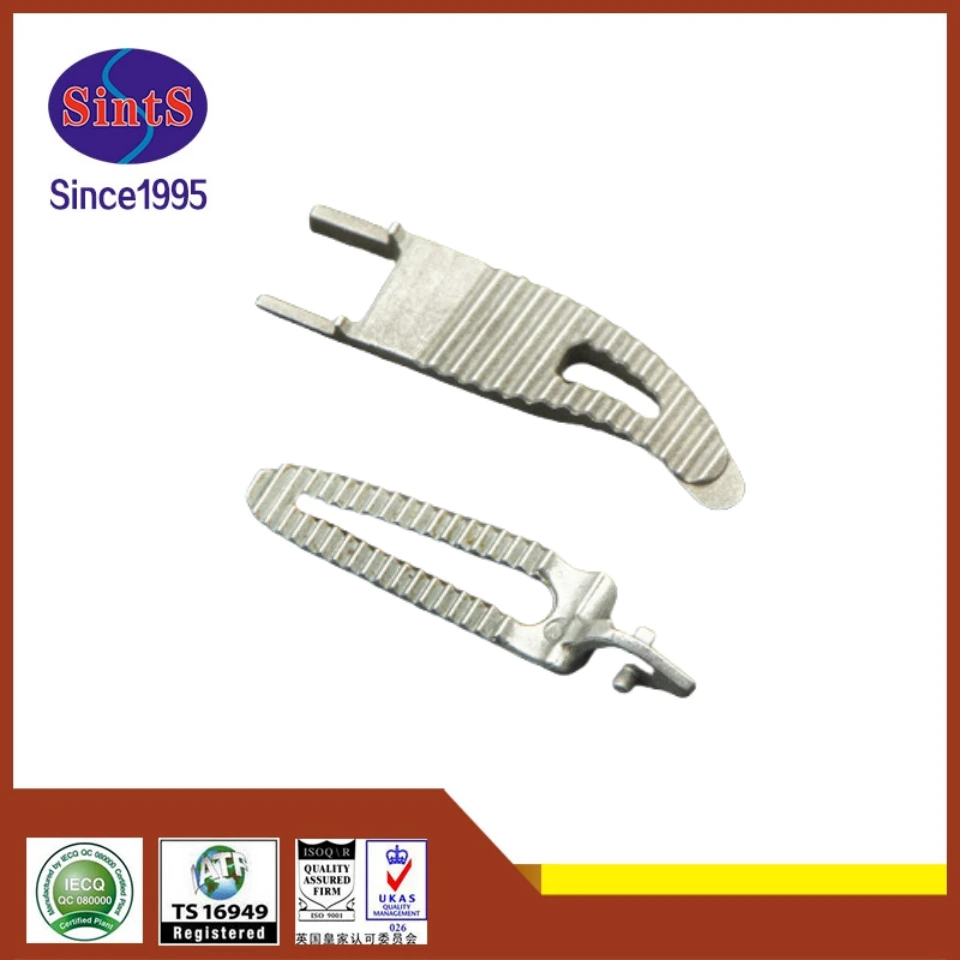

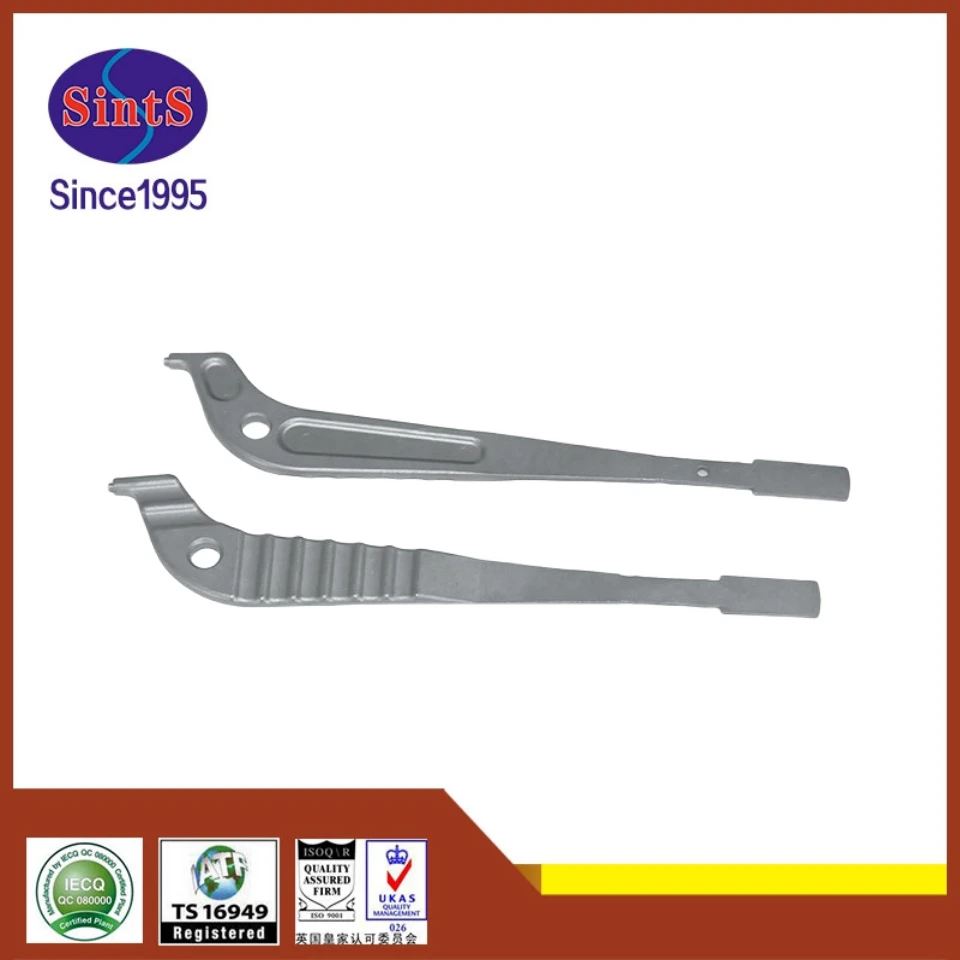

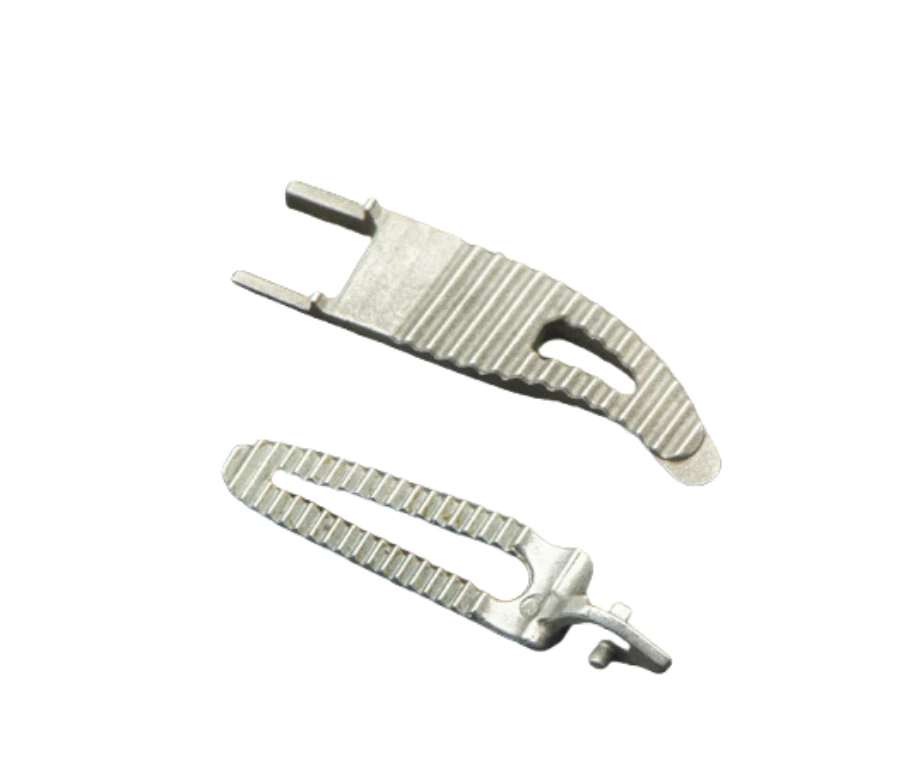

The reference group shows different slender profiles with openings and contact details.
Exact part, mating member and intended-movement interfaces
Specify the exact part, its mating member and the intended movement.
Mark joint locations, contact surfaces and the edges or slots requiring particular finishing.
Why specify individual instrument accessories within a group?
A grip, link and connecting part can have different moving contacts and finishing needs.
Their shared application does not make them one specification.
Individual drawings connect each part's function to the required material, surface and acceptance documentation.
MIM versus machining for slender instrument details
Compare MIM and machining for the integrated details, considering how slender sections are supported.
Critical interfaces may need finishing after the basic form is produced.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Instrument grip part material, surface and traceability requirements
Provide the material specification, final surface requirements and documentation needed for the component.
Cleaning, traceability and device-related validation must follow the customer project.
The catalog reference does not establish medical compliance or an intended clinical use.
Review material-selection information →Joint alignment, movement clearance and edge checks
Check joint alignment, movement clearance, edge condition and the specified surface.
Material records and project-defined cleaning or inspection documentation should be agreed.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can all instrument accessories share one surface specification?
No. A user-contact grip, sliding joint and functional tip can have different requirements within the same instrument.
Why specify individual instrument accessories within a group?
A grip, link and connecting part can have different moving contacts and finishing needs. Their shared application does not make them one specification. Individual drawings connect each part's function to the required material, surface and acceptance documentation.
What must the sample approval requirements define?
Check joint alignment, movement clearance, edge condition and the specified surface. Material records and project-defined cleaning or inspection documentation should be agreed.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
