What covers, rings and hardware do around RF assemblies
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

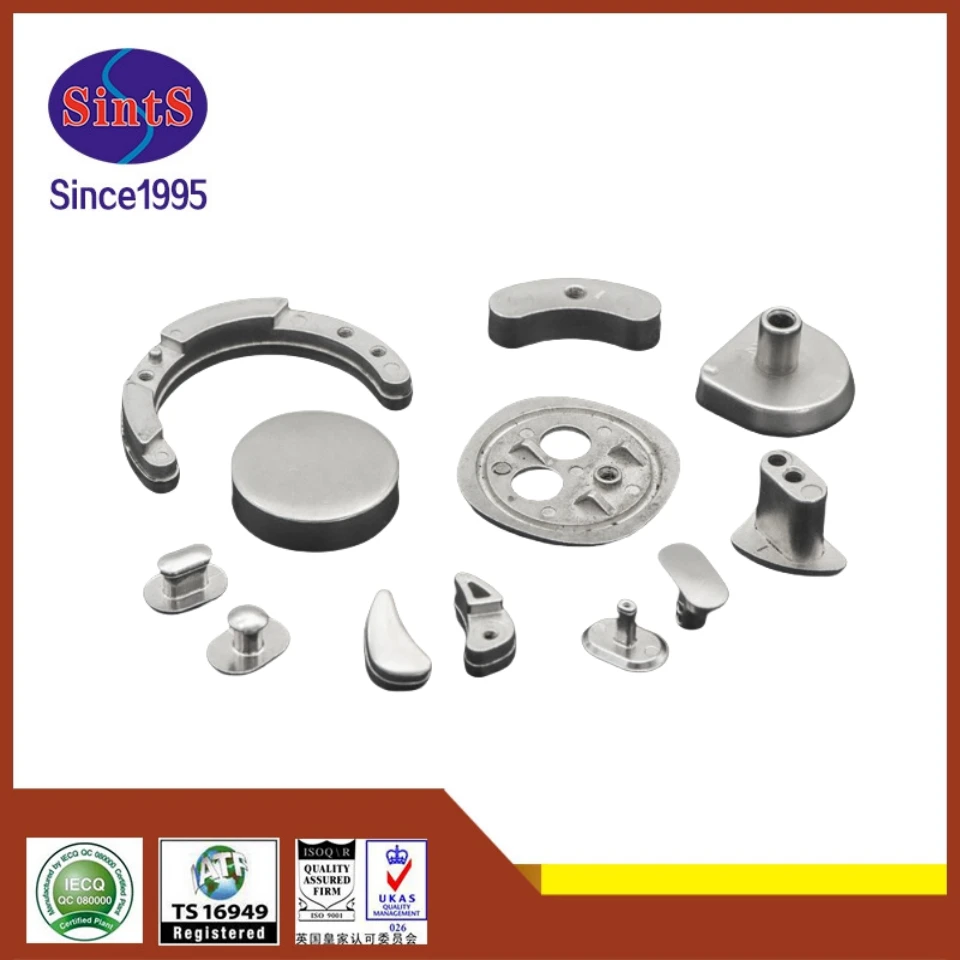

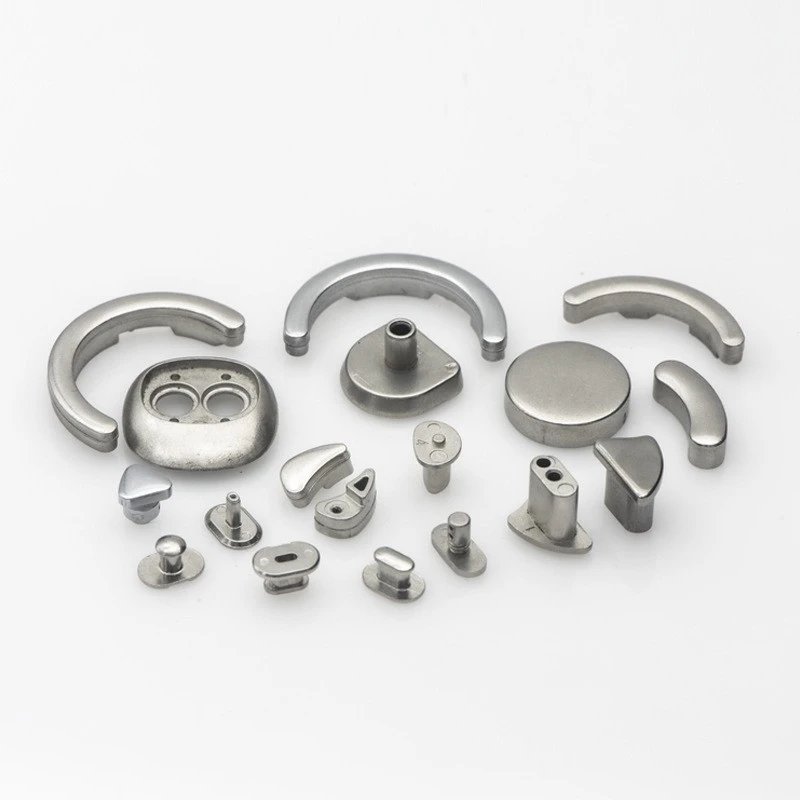

The reference group shows mechanical forms; RF performance requirements must be supplied separately.
Mechanical-role versus electrical-function interfaces
Identify whether the part has only a mechanical role or also carries a specified electrical function.
Define enclosure interfaces, fastening and relevant contact surfaces.
Why define contact surfaces in RF hardware?
Some interfaces only locate mechanical parts, while others may have a specified electrical role.
A finish selected for appearance does not automatically define the latter.
The system requirements must identify the contacts and the acceptance evidence expected for them.
Forming and machining for rings, covers and supports
Review forming and machining for the individual ring, cover or support.
Contact faces that affect assembly or electrical connection need explicit finish requirements.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →RF hardware material, contact and finish requirements
Define base material, final condition and cosmetic finish separately.
Identify visible faces, permitted edge rounding and the dimensions that must be met after finishing.
Any magnetic, electrical or acoustic requirement needs its own specification.
Review material-selection information →Mechanical fit and final-surface checks
Inspect mechanical fit and the agreed final surface.
Any shielding, grounding or frequency-related acceptance belongs to a defined customer test.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can RF performance be judged from the component shape?
No. Electrical behavior depends on material, contacts and the full system; it needs a separate specification and validation.
Why define contact surfaces in RF hardware?
Some interfaces only locate mechanical parts, while others may have a specified electrical role. A finish selected for appearance does not automatically define the latter. The system requirements must identify the contacts and the acceptance evidence expected for them.
How are appearance and functional fit checked?
Inspect mechanical fit and the agreed final surface. Any shielding, grounding or frequency-related acceptance belongs to a defined customer test.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
