Product Overview
Beverage equipment uses small metal supports and connection parts around mechanisms and dispensing assemblies.

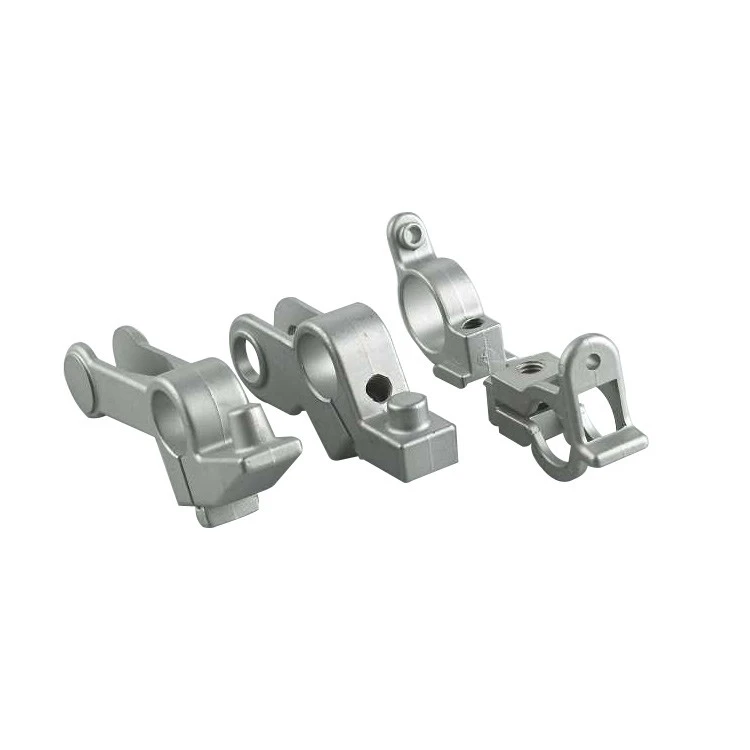

The reference shows several bracket-like forms with mounting features.
Structure & Mating Interfaces
State whether the requested part supports a mechanism or directly contacts a beverage.
Define connection holes, contact faces and the mating arrangement before specifying cleaning requirements.
Engineering Focus
Why identify direct-contact surfaces individually?
A beverage machine contains both dry-side mechanisms and parts in the fluid path.
Their cleaning, surface and documentation requirements need not be identical.
Marking the actual role of each surface allows the project requirements to follow function rather than the broad machine category.
Manufacturing Route & Finishing
Evaluate integrated bosses and supports for near-net forming, retaining machining where a bore or seating face controls the assembly.
A bracket and a fluid-contact fitting need separate process reviews.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the required grade or performance criteria together with cleaning, wear and appearance requirements.
For any surface that contacts food or beverage, identify the applicable customer documentation and acceptance criteria.
A stainless label is not a complete contact specification.
Review material-selection information →Quality & Sample Approval
Inspect hole relationships, bracket seating and the final surface condition.
Agree any fluid-contact, cleaning or assembly verification from the actual component role.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Do all beverage-machine metal parts contact the beverage?
No. Supports and actuation hardware may be outside the fluid path; identify direct-contact surfaces on the drawing.
Why identify direct-contact surfaces individually?
A beverage machine contains both dry-side mechanisms and parts in the fluid path. Their cleaning, surface and documentation requirements need not be identical. Marking the actual role of each surface allows the project requirements to follow function rather than the broad machine category.
How should fit and operating behavior be approved?
Inspect hole relationships, bracket seating and the final surface condition. Agree any fluid-contact, cleaning or assembly verification from the actual component role.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
