What flat burrs do in a paired grinding arrangement
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
Their mounting and centering features must preserve the intended relationship between the grinding faces.
Seating face, locating feature and fastener-pattern interfaces
Identify the seating face, central locating feature, fastener pattern and rotation direction.
Define whether a feature locates the burr or merely provides clearance for installation.
Why separate the locating feature from the fixing holes?
A fastener can clamp the burr without precisely locating its center.
If the assembly relies on another diameter or seat for location, the drawing should make that distinction clear.
This avoids assigning the same control to clearance holes and functional centering surfaces.
Near-net body production versus final tooth-pattern machining
Compare near-net body production and machining against the final tooth pattern.
Cutting edges, flatness and locating surfaces may require separate finishing and inspection operations.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Material and coating requirements for both grinding members
Define the material and final condition of both grinding members.
State whether coatings or other surface treatments are required, and which seating and cutting surfaces must retain their dimensions afterward.
The required wear, cleaning and contact criteria must be agreed for the actual grinder application.
Review material-selection information →Mounting-face flatness, locating diameter and tooth-profile checks
Review mounting-face flatness, locating diameter, tooth profile and edge condition.
Include a matched grinding check under the intended assembly and cleaning conditions.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Flat burr sets: face flatness, tooth zones and paired delivery

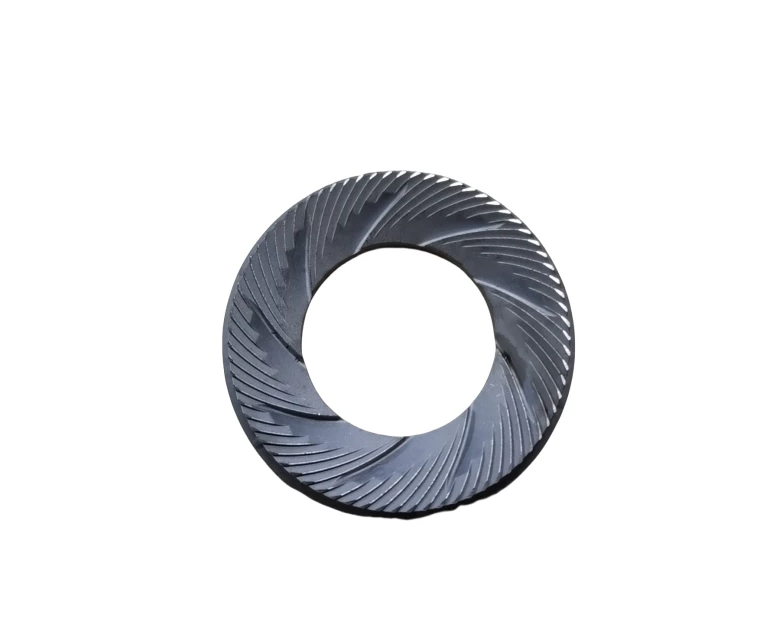

Two flat burrs face each other, and the gap between them is the grind setting. Everything that matters therefore lives on one annular surface: how flat it is, how the teeth are arranged across it, and how well its centre matches the other member of the pair.
| Feature | What it governs | How it is specified and verified |
|---|---|---|
| Annular face flatness | Whether the burr-to-burr gap stays consistent across the full face or opens on one side. | Flatness stated over the annular band rather than the whole blank; surface plate or CMM, after hardening. |
| Tooth zone progression | The pre-break, cut and finish behaviour that shapes the particle distribution. | Zone angles and land widths dimensioned zone by zone; profile projector check against the drawing. |
| Centering bore to the tooth circle | Concentric running, and whether wear stays even or concentrates on one side. | Coaxiality of the bore to the tooth annulus; CMM. A matching outside diameter alone proves nothing. |
| Fastener holes versus locating feature | Whether the screws clamp the burr or also try to locate it, which decides which feature carries the control. | Role of each hole stated on the drawing: clearance, clamp or locate. This is a drawing question before it is a manufacturing one. |
| Pairing and marking | Whether the delivered set is matched and can be identified after installation. | Pairing mark on both parts; matched grind check recorded and traceable to the delivery. |
Note. All dimensions and acceptance criteria are taken from the project drawing. The table lists the points that get reviewed; it does not fix values.
Where a burr is a plain disc with a simple radial tooth pattern and no locating feature, stamping or fine blanking plus a grind is usually cheaper. Moulding pays off when the tooth pattern is complex, the body needs a locating boss and the volumes justify tooling. A very large disc with a wide flat annulus is also difficult to hold flat through sintering, and a turned blank is easier to control.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does a matching outside diameter make two flat burrs interchangeable?
No. The tooth pattern, rotation direction, centering and mounting arrangement also need to match the grinder design.
Why separate the locating feature from the fixing holes?
A fastener can clamp the burr without precisely locating its center. If the assembly relies on another diameter or seat for location, the drawing should make that distinction clear. This avoids assigning the same control to clearance holes and functional centering surfaces.
How should fit and operating behavior be approved?
Review mounting-face flatness, locating diameter, tooth profile and edge condition. Include a matched grinding check under the intended assembly and cleaning conditions.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
