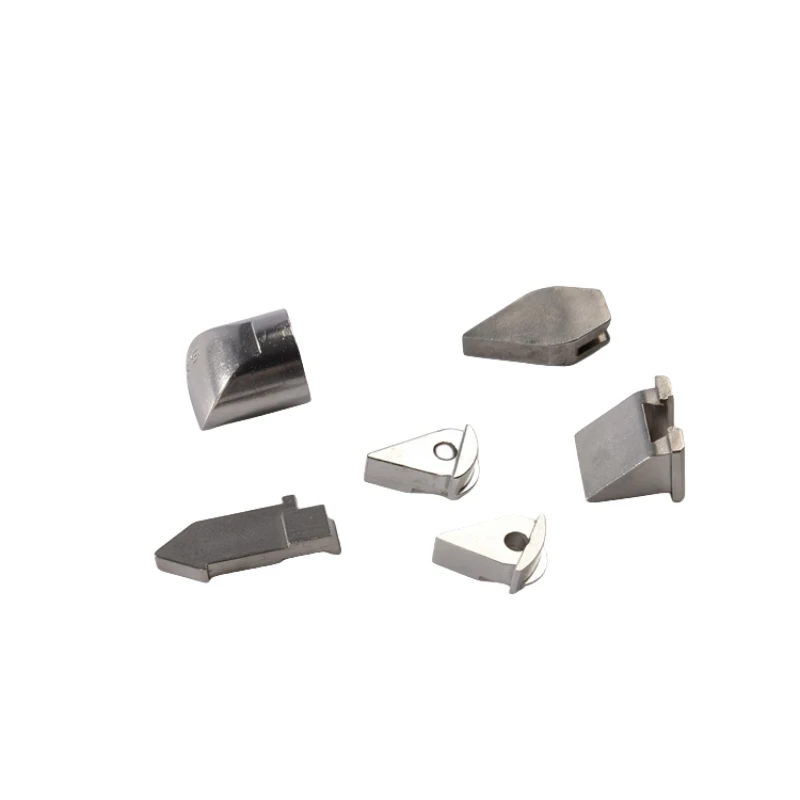

What a 316L spring bolt request combines beyond the grade
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
The grade and final condition must be confirmed for the particular drawing.

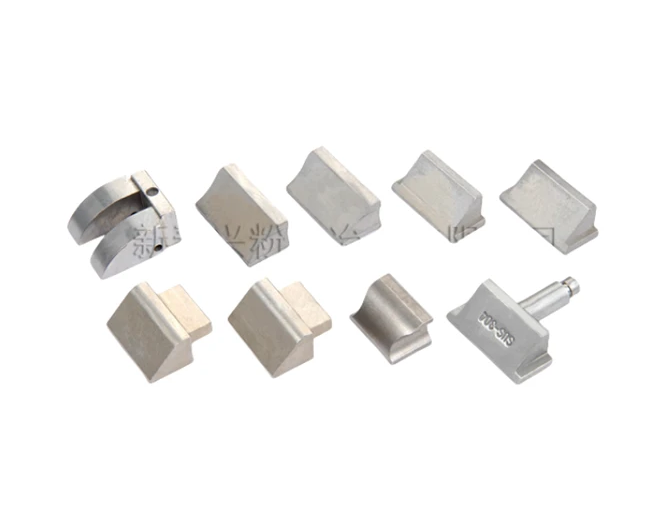

Bolt guide, contact face and actuator interfaces
Define the bolt's guide, contact face and actuator connection.
State the reason for the material choice and the expected environment or cleaning exposure.
Why assess the material and mating contact together?
The grade request does not define how the latch interacts with its partner.
Geometry, surface and operating conditions remain separate requirements.
Considering them together avoids treating a material designation as a complete durability or fit specification.

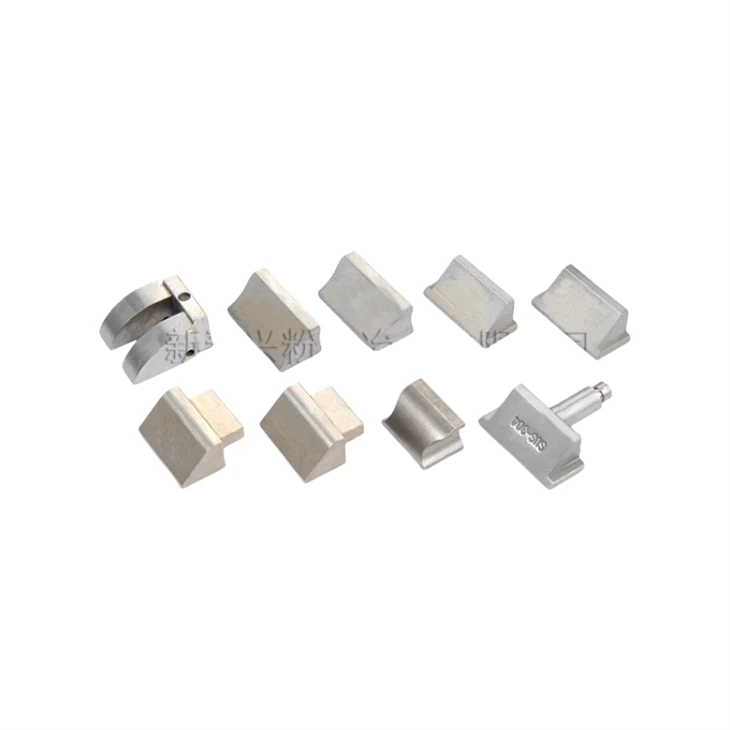

Powder-based versus machining routes for the 316L bolt
Review powder-based and machining routes with the specified grade and function.
Material selection should be considered with the contact and wear requirements, not as a substitute for them.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →316L grade, treated-surface and corrosion requirements
Specify the base material, final condition and corrosion or appearance requirements.
Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.
The component specification does not establish a security rating for the complete lock.
Review material-selection information →Guide dimension, material record and operating-test checks
Check the guide and connection dimensions, material records and the required operating test.
Any additional treatment must be compatible with the agreed specification.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Where a 316L spring bolt drawing usually has to give
A spring bolt does two jobs at once: it locates, and it stores energy. On a pressed 316L part the second job is what limits the design, and most of the changes below come back to it. None of them are mistakes in the drawing. They are places where the drawing asks the process for something a sintered stainless part cannot hold.
| What we flag | Why it bites on this part | How the drawing usually changes |
|---|---|---|
| The spring slot radius | 316L sinters to 6.6 to 6.8 g/cm³, so the slot root carries the highest stress in a part that has little ductility to redistribute it. A sharp corner there is where the first fatigue crack starts. | R0.2 becomes R0.5 or larger, or the slot moves to a machined feature so it is cut from solid rather than sintered. |
| Straightness over the full length | Sinter shrink is not the same along the pressing direction as across it, so a long bolt drifts more at the ends than a short one does. | The tolerance is split: tight on the locating sections at both ends, open across the middle that never touches anything. |
| Hardness on the face the latch rides | Sintered 316L is austenitic and does not harden by heat treatment. A wear face specified at 45 HRC is not a tolerance problem, it is a different alloy. | The wear face moves to 17-4PH, or it stays soft and the wear allowance is written into the stated service life instead. |
| Threads formed in the tool | As-sintered threads lose shear area to porosity and the crests chip under torque, which is exactly the load a lock bolt sees. | The thread is called as a post-sinter tapping operation, with the pilot hole sized for it and the thread class checked after tapping. |
| Passivation after sintering | Open porosity traps acid and plating solution. A part passivated without a proper rinse and neutralise bleeds it out weeks later, on the customer side. | The note specifies the cleaning and neutralisation sequence, not only the passivation standard. |
Note. These are the changes we most often ask for on this class of part, not a review of any particular drawing. They describe how the process behaves; dimensions, tolerances and acceptance values come from the project drawing.
The one suggestion we do not make is thinner walls to take weight out. On a part that stores energy the wall is the spring, and thinning it to reach a price turns "bends a little" into "snaps". If the weight is genuinely over budget, the answer is titanium or a redesign, not a lighter section.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does a 316L requirement alone define latch durability?
No. Geometry, mating materials, surface condition and the operating duty also need to be defined and verified.
Why assess the material and mating contact together?
The grade request does not define how the latch interacts with its partner. Geometry, surface and operating conditions remain separate requirements. Considering them together avoids treating a material designation as a complete durability or fit specification.
How should the completed mechanism be checked?
Check the guide and connection dimensions, material records and the required operating test. Any additional treatment must be compatible with the agreed specification.
