Fingerprint Lock Connecting Levers

Connecting levers transfer movement between parts of a fingerprint-lock mechanism.

Fingerprint Lock Connecting Levers
Product catalog reference. Dimensions, material and supply scope are confirmed from the project drawing.

What connecting levers transfer between lock mechanism parts

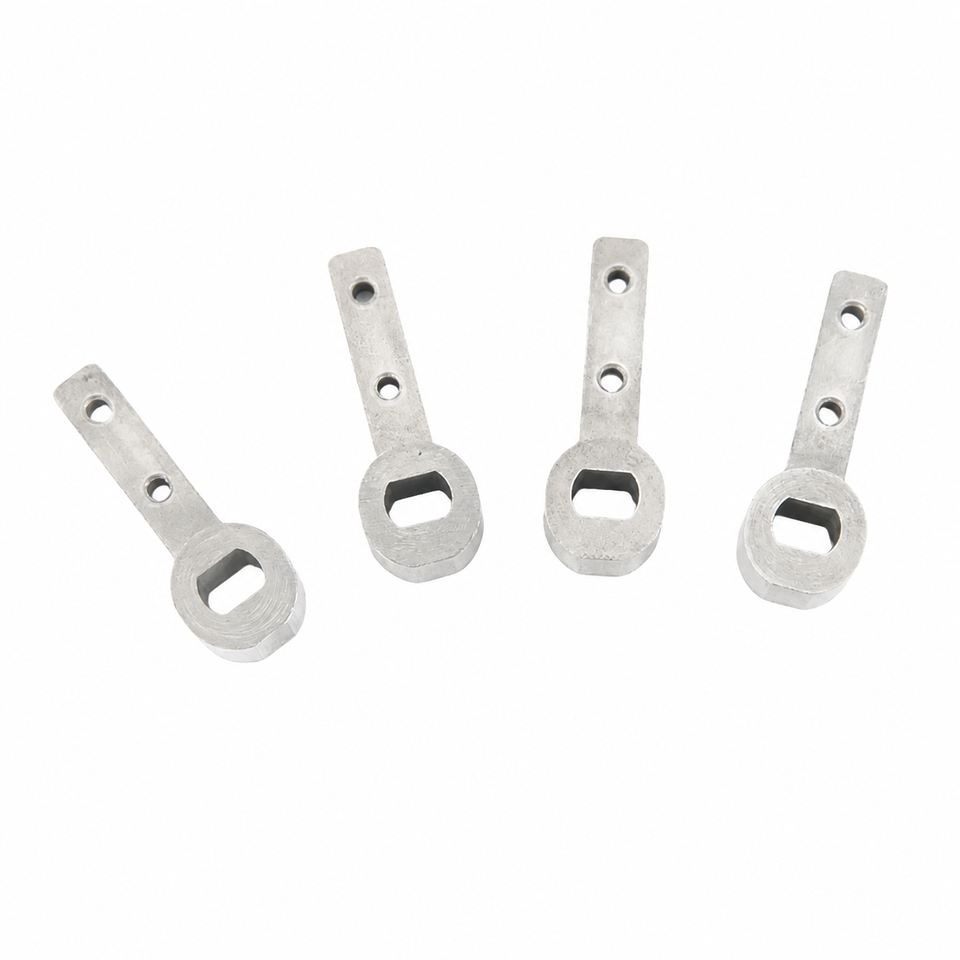

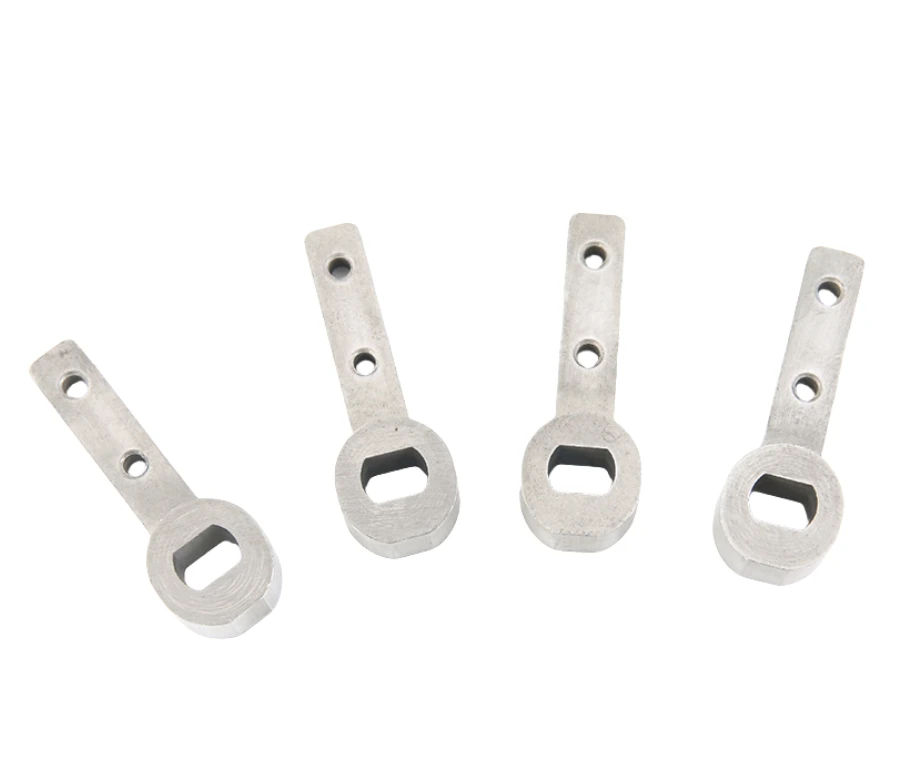

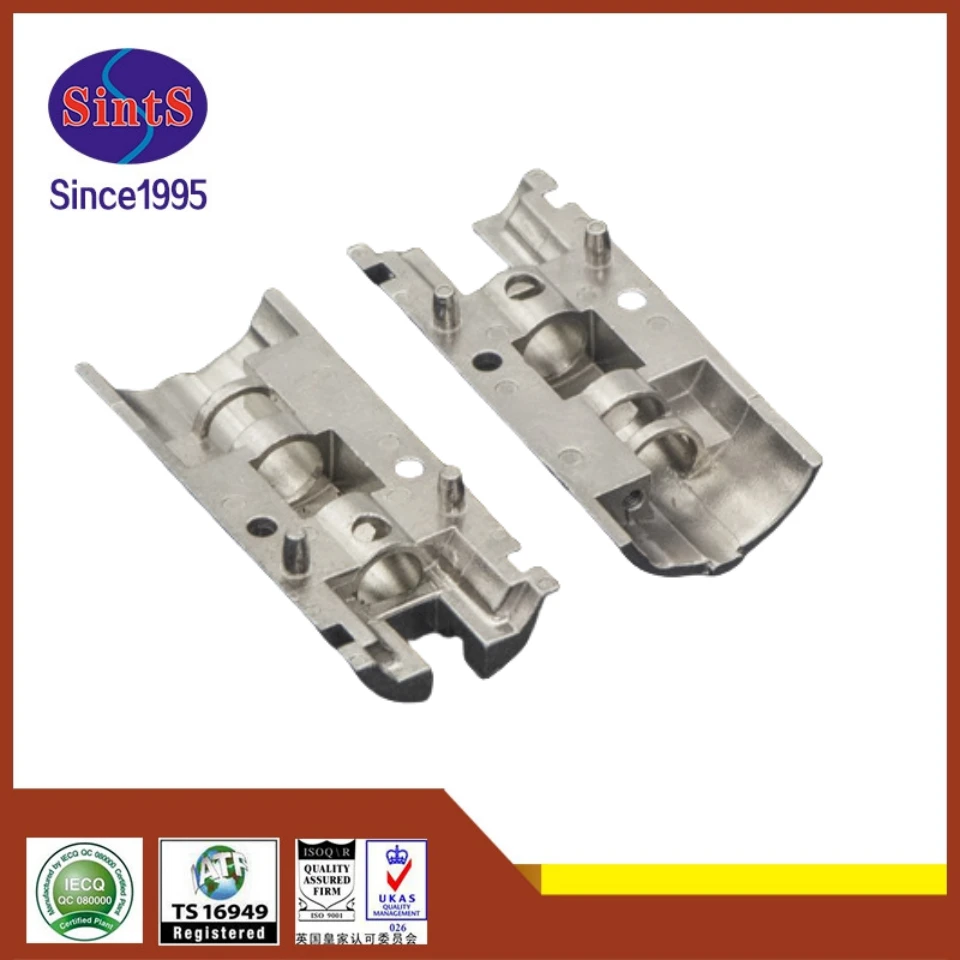

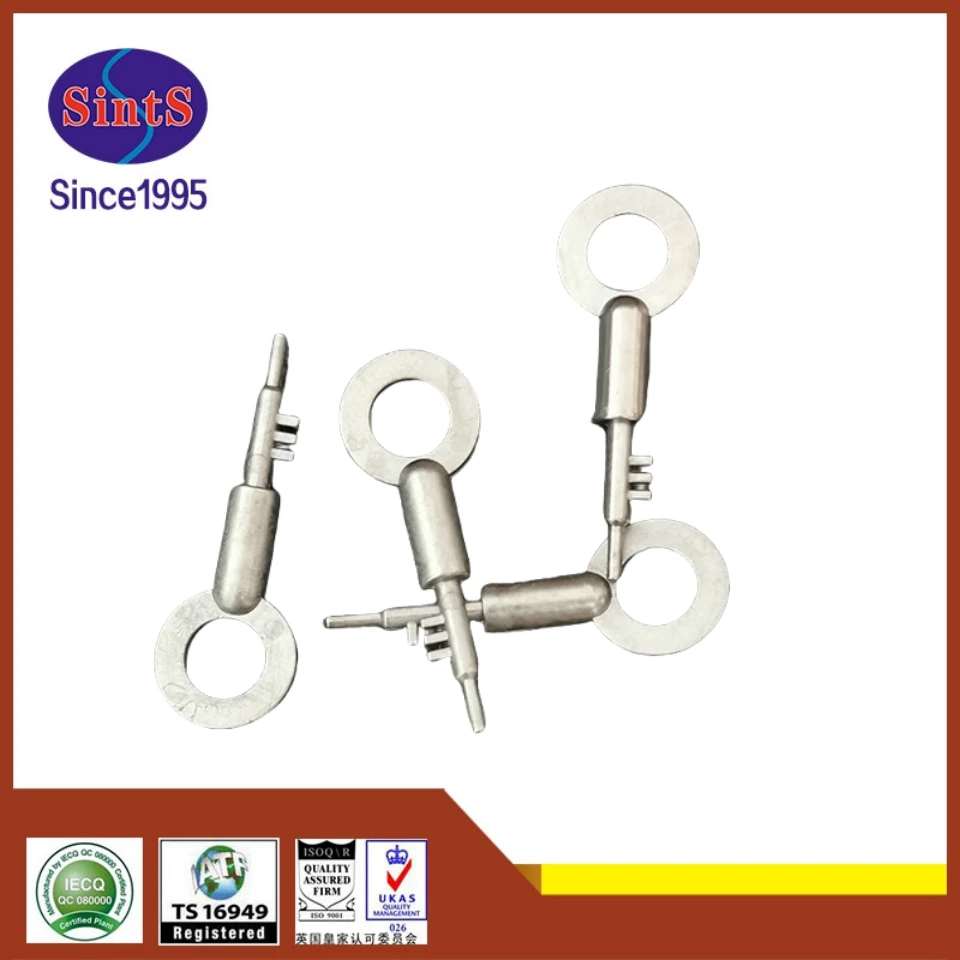

The reference shows elongated forms with connection holes or shaped openings.

Hole spacing, opening geometry and mechanism-datum interfaces

Specify hole spacing, opening geometry and the contact profile relative to the mechanism datums.

Include the load direction and travel limits.

Why prioritize connection spacing over the lever outline?

The linkage acts through its connections, not through an arbitrary exterior dimension.

Defining those centers and working contacts establishes how motion is transferred.

The surrounding outline can then be controlled according to clearance and appearance rather than assumed to be the main datum.

Forming versus machining for lever sections and openings

Compare forming and machining for the lever section and openings.

Working holes or edges may need finishing while nonfunctional surfaces retain the formed condition.

Compare manufacturing capabilities →

Connecting lever material, treated-surface and corrosion requirements

Specify the base material, final condition and corrosion or appearance requirements.

Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.

Specify any testing required on the assembled lock separately.

Review material-selection information →

Connection fit, spacing and travel-clearance checks

Check connection fits, spacing and clearance throughout the travel.

Approve the lever in the intended mechanical linkage.

Quality documentation →

Where the money goes on a thin connecting lever

A connecting lever is a small part whose cost is set by how hard it is to keep straight and how hard it is to hang on a plating rack. Neither is a volume problem, which is why these parts do not get much cheaper in larger runs.

Cost elementWhy a small order costs more per pieceWhy a large order stops getting cheaper
The forming toolA thin lever needs a tool with good support at the ends and a controlled gate position, otherwise the part fills unevenly and distorts.Tooling is recovered quickly. Repair and re-polishing of the tool is the recurring cost, and it scales with the number of strokes rather than falling with them.
Straightening after sinteringThin levers come out of the furnace with a bend. Straightening is done part by part, and how much is needed depends on how the parts sat in the load.A better load arrangement or a design change that adds stiffness removes the operation. Volume alone does not make straightening cheaper.
Choice of process for the blankWhere the section allows it, a stamped blank can be cheaper than a formed one, but thickness and feature depth limit that option. The choice is made once, at quotation.If stamping is viable, it scales better than forming because the blank is cut from strip in one stroke. That is a process decision, not a discount.
Plating rack densityThin levers hang at low density on a rack to avoid distortion, so a rack carries fewer parts than its area suggests.Rack density is limited by the part, not the tank. More volume means more racks and more handling.
Hole spacing measurementHole spacing is quick with a fixture and slow without one. The fixture is a one-off, the measurement is per part.Once the fixture exists this line is small. It is also the line most often left out of a first quotation and then discovered.

For a price comparison, use the same material, finish, order quantity and inspection requirements.

The cheapest lever is a slightly stiffer lever. Adding a rib or a small increase in thickness usually removes the straightening step, which is the largest per-part line here. Discounting a part that has to be straightened is difficult; designing one that does not is not.

Thin-section MIM behaviour →

What to include in your enquiry

  1. Drawing and mating dimensions.Specify hole spacing, opening geometry and the contact profile relative to the mechanism datums. Include the drawing revision.
  2. Mating information. Include the assembly references needed to define the interfaces discussed above.
  3. Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
  4. Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
  5. First-sample inspection.Check connection fits, spacing and clearance throughout the travel. Specify the mating part or inspection fixture.
Send This Component for Review →

Common questions

Is overall lever length the main functional dimension?

Often the connection spacing and contact geometry matter more; dimension the part from its actual mechanism interfaces.

Why prioritize connection spacing over the lever outline?

The linkage acts through its connections, not through an arbitrary exterior dimension. Defining those centers and working contacts establishes how motion is transferred. The surrounding outline can then be controlled according to clearance and appearance rather than assumed to be the main datum.

How should the completed mechanism be checked?

Check connection fits, spacing and clearance throughout the travel. Approve the lever in the intended mechanical linkage.
