What camera pivot hardware supports within an assembly
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

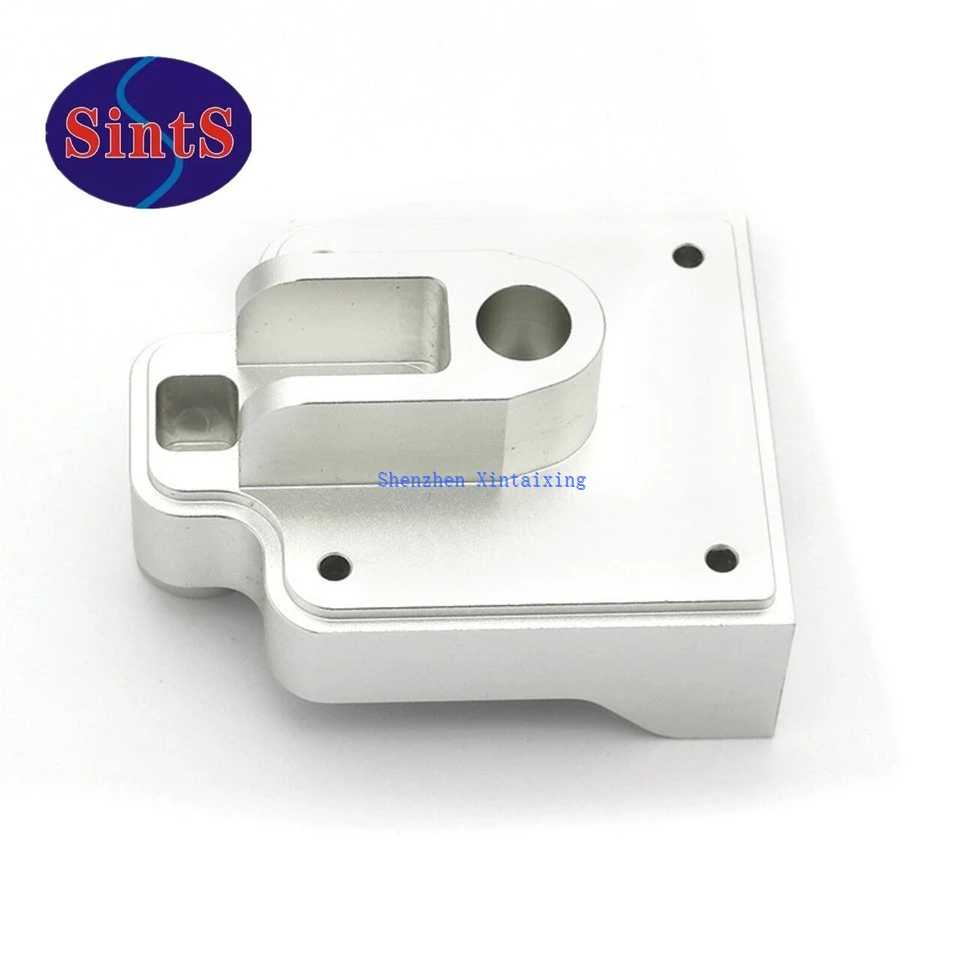

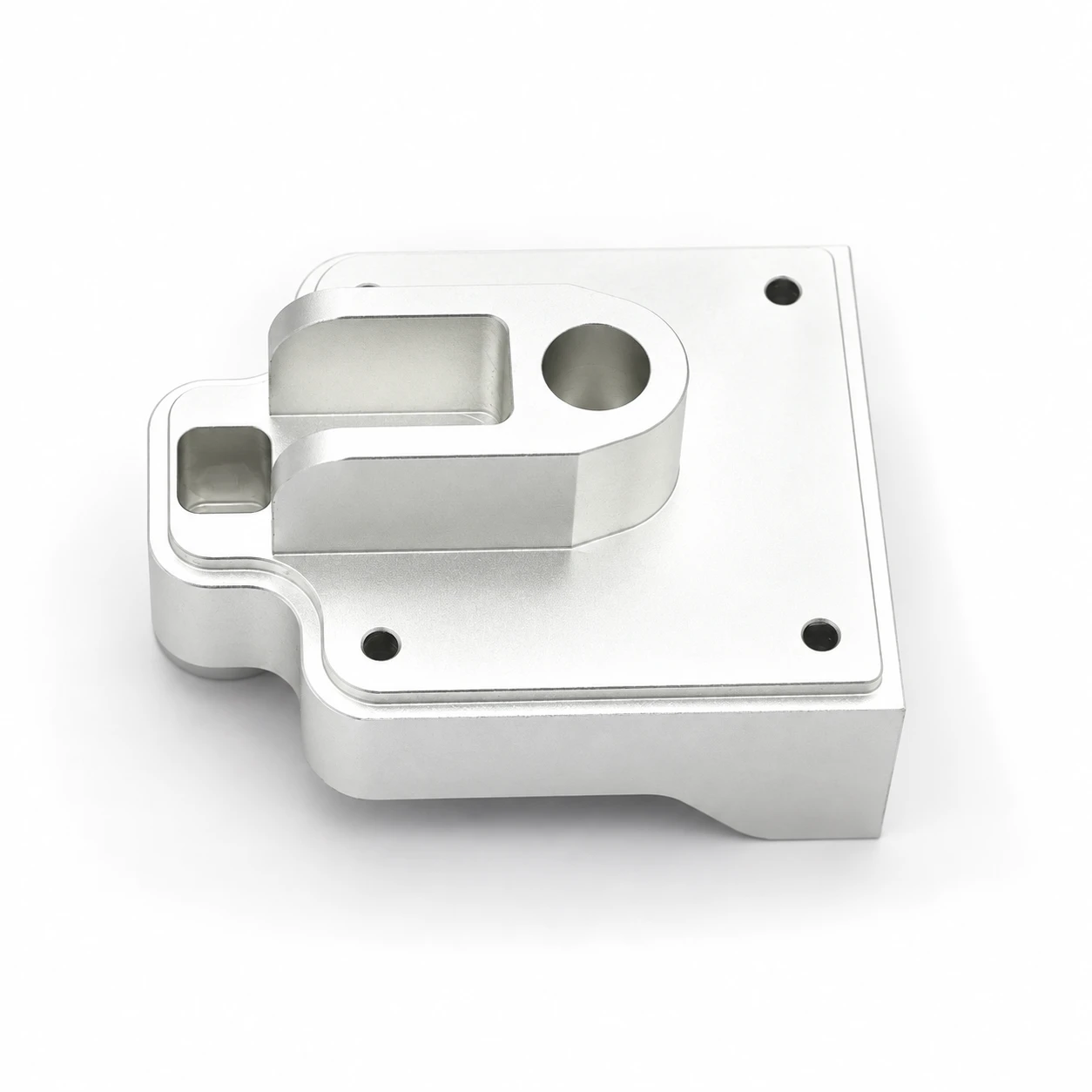

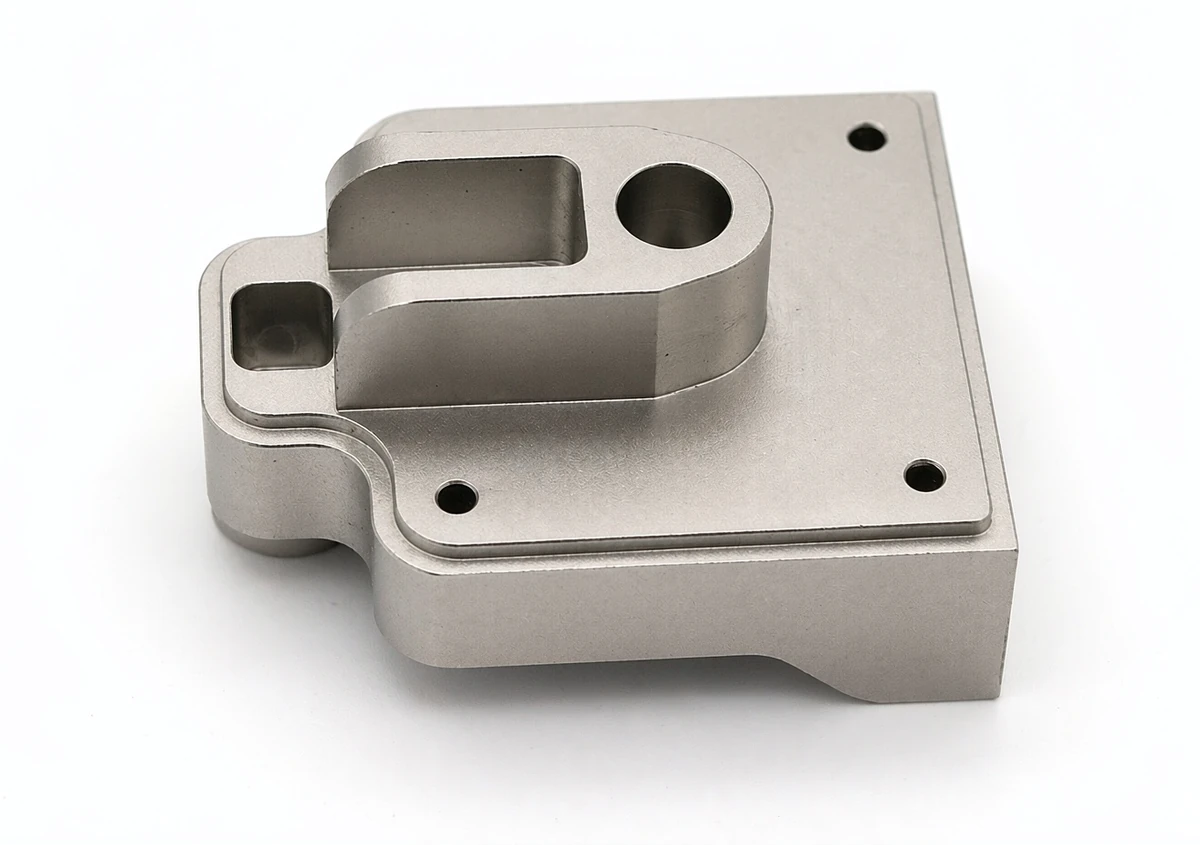

A titanium-related specification requires confirmation; the pictured mounting geometry does not verify alloy or a complete pivot assembly.
Pivot axis, mounting hole and camera-structure interfaces
Define the pivot axis, mounting holes and mating camera structure.
Identify the requested metal part and any moving pin or bearing supplied separately.
Why confirm the alloy before comparing camera-pivot routes?
A material-specific request can change the feasible processing and inspection approach.
The external form does not establish the alloy.
Confirming the specification first avoids building a quotation around an assumed material while leaving the actual mounting requirements unresolved.
Confirming the alloy before comparing pivot routes
Compare machining and suitable forming routes after confirming the required alloy.
A specialty material request needs its own feedstock, processing and inspection review.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Titanium grade, final condition and material-record requirements
Define base material, final condition and cosmetic finish separately.
Identify visible faces, permitted edge rounding and the dimensions that must be met after finishing.
Any magnetic, electrical or acoustic requirement needs its own specification.
Review material-selection information →The pivot chain: axis first, alloy before that
On a camera pivot the chain has an unusual order. Before any dimension can mean anything, the alloy has to be confirmed, because grade decides stiffness and wear behaviour, and both of those decide what the clearance has to be.
| Link in the assembly chain | What it adds to the stack | Where to take it out of the chain |
|---|---|---|
| Alloy confirmation | Titanium covers several grades with different stiffness and wear response. A chain calculated for one grade is not the same chain for another, even at identical geometry. | Confirm the grade and its condition on the drawing. A visual reference or a photograph cannot establish either, and route comparisons made before the grade is fixed are comparisons of geometry only. |
| Pivot axis | The axis is the origin of the whole rotating system. Any error here appears as runout at the camera structure, magnified by the distance from the pivot to the outermost point. | Tolerance the axis from the mounting face rather than from the outer contour. On a rotating part the outer contour is a result, never a datum. |
| Mounting hole positions | Holes carry the axis position plus their own error. In a three-hole pattern the third hole holds the sum of the first two, which is why one hole always seems to be the problem one. | Dimension the pattern as a group from a single datum. Chained hole dimensions are the single most common cause of a pattern that will not start on its fasteners. |
| Radial clearance in the pivot | Clearance sets both freedom and play. On a camera pivot the same clearance is felt as smoothness at one scale and as image movement at another. | Decide which of the two the design is protecting, then state the clearance as a band around that choice. A minimum-only or maximum-only callout hides the decision rather than making it. |
| Shoulder and seat faces | A shoulder that locates the shaft axially is a separate link from the radial fit. When the two are combined into one note, one of them silently absorbs the other. | Separate the axial seat from the radial fit on the drawing. They are produced by different features and they fail in different ways. |
Note. The links below describe how error accumulates in an assembly, not how to allocate tolerance for a specific drawing. Which link should carry the accumulation is a design decision that belongs to whoever owns the assembly; the supplier can only hold what the drawing names. Nothing here states an achievable tolerance for any dimension.
For titanium parts the honest sequence is grade, then geometry, then clearance. Reversing it produces a quotation that is accurate about a part nobody is going to buy, and it is the most common way a titanium enquiry loses a week.
Axis relationship, final fit and material-record checks
Check axis and mounting relationships, final fit and project-defined material records.
Do not infer titanium grade or load capacity from the photograph.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does the catalog name prove that the pictured part is titanium?
No. Confirm the required alloy and material documentation in the project specification before quoting or approval.
Why confirm the alloy before comparing camera-pivot routes?
A material-specific request can change the feasible processing and inspection approach. The external form does not establish the alloy. Confirming the specification first avoids building a quotation around an assumed material while leaving the actual mounting requirements unresolved.
How are appearance and functional fit checked?
Check axis and mounting relationships, final fit and project-defined material records. Do not infer titanium grade or load capacity from the photograph.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
