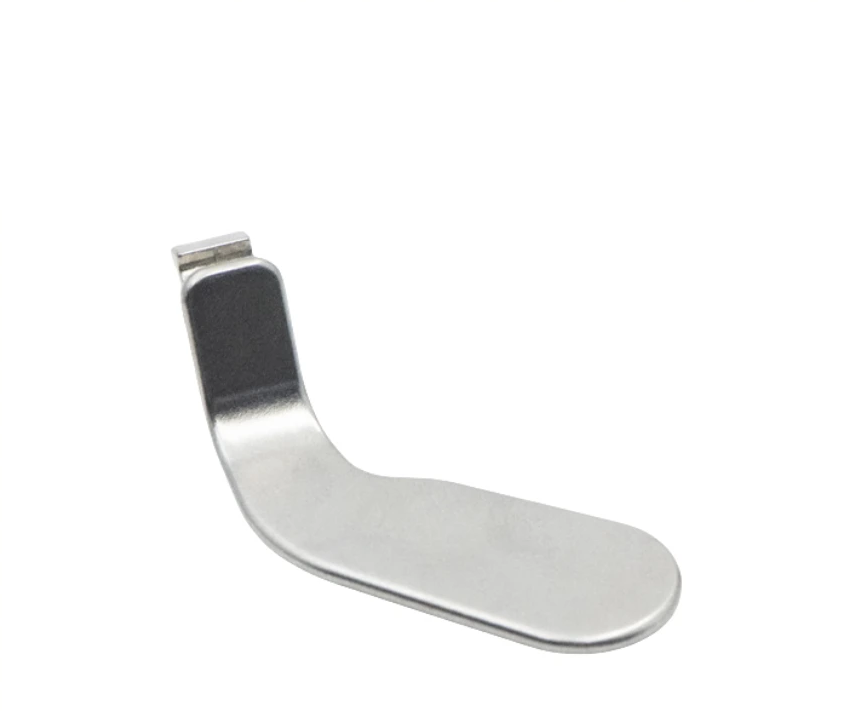

What a controller paddle adds to the operating surface
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
The bent or shaped reference needs a defined attachment and movement relationship.
Controller connection, working travel and switch-contact interfaces
Specify the controller connection, working travel and contact with the switch or actuator.
Separate the finger-contact surface from the attachment datum.
Why does paddle attachment affect its operation?
The attachment establishes how the paddle moves relative to the controller mechanism.
Its visible operating surface alone does not define travel or return.
Reviewing the connection and switch relationship together helps separate appearance requirements from the operating interface.
Forming versus machining for paddle sections and fasteners
Compare forming and machining for the paddle section and fastening features.
Finish should preserve the attachment and avoid sharp user-contact edges.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Paddle base material, edge and finish requirements
Define base material, final condition and cosmetic finish separately.
Identify visible faces, permitted edge rounding and the dimensions that must be met after finishing.
Any magnetic, electrical or acoustic requirement needs its own specification.
Review material-selection information →How paddle travel is built up from four links
A paddle feels wrong before it measures wrong. The feel comes from a chain of four links, and the one that usually gets the blame — the paddle itself — is rarely the one that moved.
| Link in the assembly chain | What it adds to the stack | Where to take it out of the chain |
|---|---|---|
| Attachment clearance at the pivot | The paddle rotates about its attachment. Any clearance there is multiplied by the distance to the contact point, so a small gap at the pivot becomes a visible movement at the switch. | Decide whether the pivot clearance is the designed float or an error. If it is the float, size it deliberately; if it is not, it has to be removed by the attachment geometry, not by tightening the paddle tolerance. |
| Working travel to the switch | Total travel is the paddle angle plus the switch pre-travel plus whatever the attachment absorbs. The three sum, and the switch is the only one with its own published band. | Put the total travel on the drawing as an assembly requirement with the switch pre-travel as a stated input. Otherwise each part is checked against its own drawing and the assembly is checked against nothing. |
| Contact point position on the paddle | Where the paddle meets the switch sets when actuation happens. A contact face that is not referenced to the pivot turns into a timing error that the user feels as a dead or an over-sensitive paddle. | Reference the contact face to the pivot, not to the outer contour. The outer contour is the part the user sees, which is exactly why it should not be the datum. |
| Finger surface against contact face | The relationship between the surface the finger presses and the face that presses the switch is the whole function of the part. Tolerancing the outside shape controls neither. | State that relationship as one dimension between the two functional faces. It is a single line on the drawing and it replaces three dimensions around the outline that were doing nothing. |
| Edge condition at end of travel | A rounded or burred edge at the travel limit changes where the paddle stops. It reads as a small finishing note and behaves as a travel stop. | Keep the travel limit on a machined or formed face, not on a cosmetic edge. If the edge must also be soft for the finger, say which part of it stays sharp. |
Note. The links below describe how error accumulates in an assembly, not how to allocate tolerance for a specific drawing. Which link should carry the accumulation is a design decision that belongs to whoever owns the assembly; the supplier can only hold what the drawing names. Nothing here states an achievable tolerance for any dimension.
On anything that a hand operates, the chain should be closed at the functional faces and left free at the cosmetic ones. Reversing that order is how a part passes inspection and still feels wrong in the hand.
Fit, movement and return-behaviour checks
Check fit, movement, return behavior and appearance with the intended controller mechanism.
A matching visual profile does not establish model compatibility.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does a controller paddle use the same requirements as a keycap?
No. A paddle's attachment, leverage and travel differ from a guided button; supply the actual mechanism and operating requirements.
Why does paddle attachment affect its operation?
The attachment establishes how the paddle moves relative to the controller mechanism. Its visible operating surface alone does not define travel or return. Reviewing the connection and switch relationship together helps separate appearance requirements from the operating interface.
How are appearance and functional fit checked?
Check fit, movement, return behavior and appearance with the intended controller mechanism. A matching visual profile does not establish model compatibility.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
