Product Overview

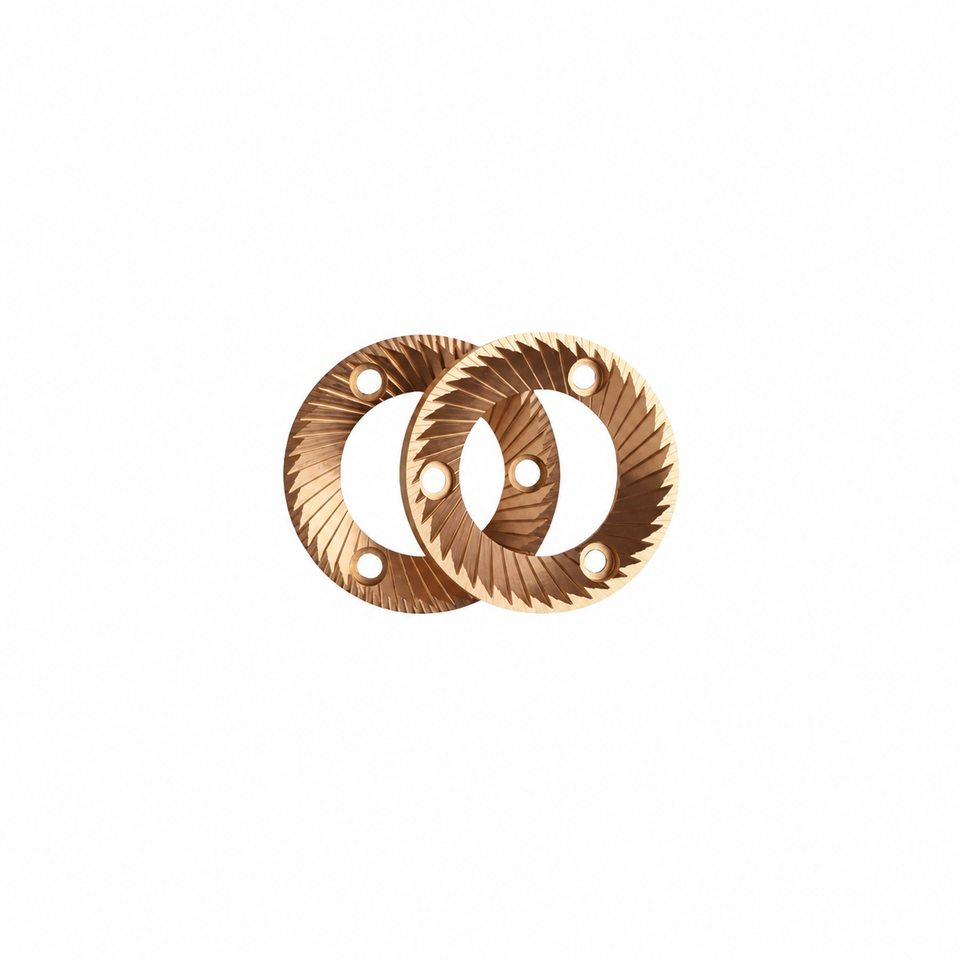

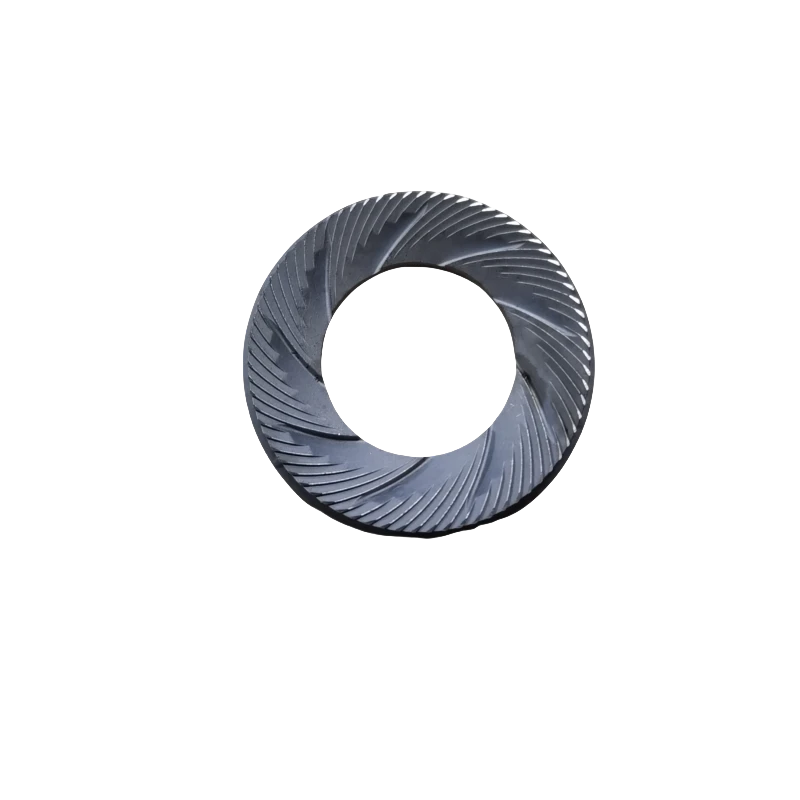

Flat burrs use a patterned annular face within a paired grinding arrangement.
Their mounting and centering features must preserve the intended relationship between the grinding faces.
Structure & Mating Interfaces

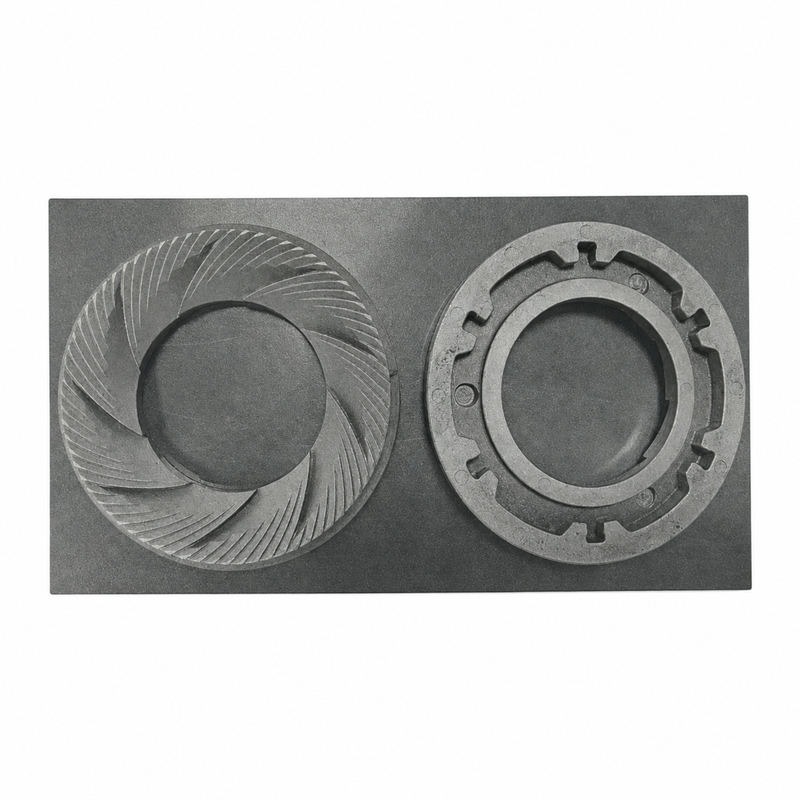

Identify the seating face, central locating feature, fastener pattern and rotation direction.
Define whether a feature locates the burr or merely provides clearance for installation.
Engineering Focus
Why separate the locating feature from the fixing holes?
A fastener can clamp the burr without precisely locating its center.
If the assembly relies on another diameter or seat for location, the drawing should make that distinction clear.
This avoids assigning the same control to clearance holes and functional centering surfaces.
Manufacturing Route & Finishing
Compare near-net body production and machining against the final tooth pattern.
Cutting edges, flatness and locating surfaces may require separate finishing and inspection operations.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Define the material and final condition of both grinding members.
State whether coatings or other surface treatments are required, and which seating and cutting surfaces must retain their dimensions afterward.
The required wear, cleaning and contact criteria must be agreed for the actual grinder application.
Review material-selection information →Quality & Sample Approval
Review mounting-face flatness, locating diameter, tooth profile and edge condition.
Include a matched grinding check under the intended assembly and cleaning conditions.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does a matching outside diameter make two flat burrs interchangeable?
No. The tooth pattern, rotation direction, centering and mounting arrangement also need to match the grinder design.
Why separate the locating feature from the fixing holes?
A fastener can clamp the burr without precisely locating its center. If the assembly relies on another diameter or seat for location, the drawing should make that distinction clear. This avoids assigning the same control to clearance holes and functional centering surfaces.
How should fit and operating behavior be approved?
Review mounting-face flatness, locating diameter, tooth profile and edge condition. Include a matched grinding check under the intended assembly and cleaning conditions.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
