Buyers evaluating small precision metal parts often end up comparing MIM, powder metallurgy, CNC machining, and other routes at the same time. That is normal. The right answer depends less on the process name and more on geometry, annual quantity, material needs, finish expectations, and how much secondary work is acceptable.
This article gives a practical way to think about the choice. The goal is not to rank every process from best to worst. The goal is to help sourcing teams narrow the shortlist before sending drawings for quotation.
Start with the part, Not the process
The most common mistake in sourcing is to ask, "Do we use MIM?" or "Do we use PM?" before fully defining the part. A better starting point is to describe what the part does, what shape it has, what surfaces matter, and how many pieces you expect to buy each year.
Once those facts are clear, process selection becomes much easier. Some parts want the shape freedom of MIM. Some want the geometry logic and cost efficiency of PM. Some are still better suited to CNC machining because the volume is low or the tolerance risk is too high for a formed process.
1. Geometry complexity
If the part has undercuts, thin walls, internal pockets, or multiple three-dimensional features, MIM may become attractive because it can form those details directly in a mold. If the part is more cylindrical, planar, or compaction-friendly, powder metallurgy may fit better. If the part needs deep, sharp, or highly variable machining features, CNC may remain the safer route.
2. Production quantity
Volume matters because tooling-based processes usually become more efficient as annual quantity rises. Low-volume projects often favor machining or hybrid routes. Medium to high volumes often justify MIM or PM if the geometry also suits the method.
3. Material and performance target
Buyers should think about the actual performance target: wear resistance, corrosion resistance, magnetic behavior, density, strength, or cosmetic quality. Different processes can support different material families and post-processing options, so the material requirement is not just a line on the drawing. It affects the route itself.
4. Tolerance and finish
The tighter the tolerance or the more visible the surface, the more likely a secondary operation will be needed. That does not rule out MIM or PM, but it does affect cost and lead time. A good supplier should help separate features that are formed in-process from features that need later machining or finishing.
5. Project stage
Prototype, pilot, and mass production projects are not the same. A route that is ideal for repeat production may be too slow or too expensive for a quick concept sample. Buyers should tell the supplier whether the part is for design validation, first article review, or long-term volume supply.
A simple decision filter
- use MIM when the part is small, detailed, and volume justifies tooling
- use PM when the part suits compaction and the business case depends on repeat volume
- use CNC when the part is lower volume or demands more direct feature control
- ask the supplier to compare options from the drawing, not from the process name alone
What buyers should send first
The fastest way to get a useful recommendation is to send the drawing, expected annual quantity, material preference, finish needs, and a short note about application. That gives the supplier enough context to tell you whether the part should start with MIM, PM, CNC, or a hybrid approach.
See process selection in real mechanisms
The same questions—geometry, load, material, tolerance, annual volume and secondary operations—change by application. Use these engineering guides to see where MIM, PM, CNC, gear manufacturing or a hybrid route may fit.
Robotic Grippers
Wedges, links, pawls, guides and compact mechanism components.
→Robot Tool Changers
Locking, locating, transmission and interface components.
→Solenoids & Fluid Control
Magnetic parts, plungers, valve seats and precision interfaces.
→Electric Pruning Shears
Gears, links, pivots and high-cycle drive components.
→For cross-industry component families, also review Products, Materials and Industries.
Related Component Families
Use these component-family pages to move from general process guidance to drawing-specific DFM questions.

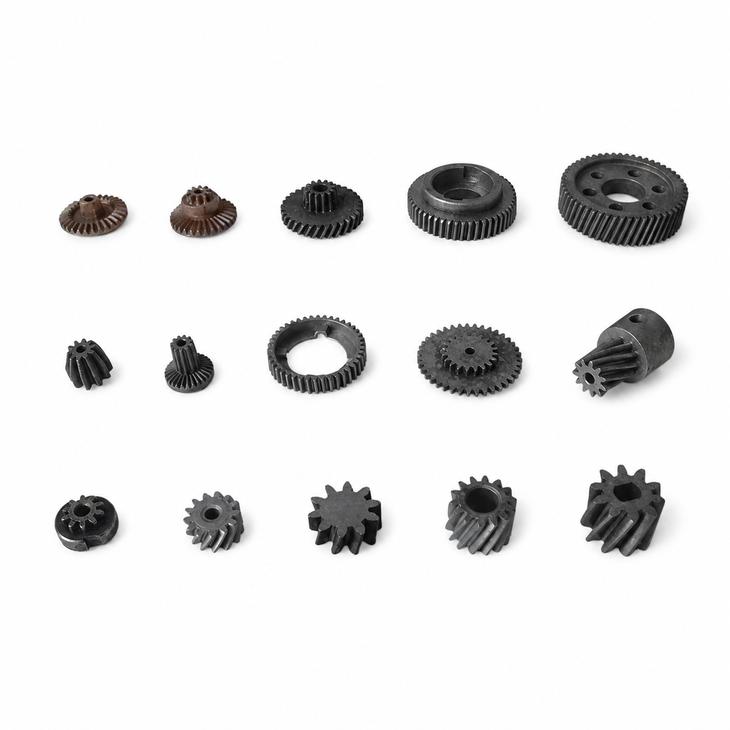

Gears & Transmission Components
Tooth geometry, torque, accuracy and volume can point toward PM, MIM, machining or a hybrid route.

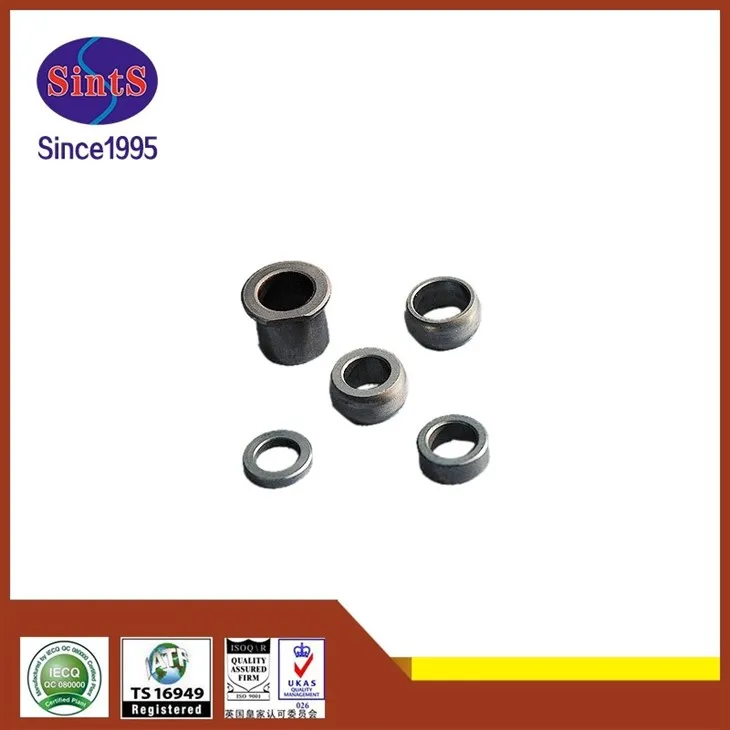

Component guide →Bushings & Structural PM Parts
Compaction direction, density, running fit and wear are central to press-and-sinter decisions.
Component guide →Mechanism Components
Links, levers, pawls, cams and latches are screened from load path, wear and geometry.
Component guide →Shafts, Pins & Plungers
Simple rotational parts often favor turning; integrated 3D features can change the economics.
Component guide →Fluid-Control & Dispensing
Sealing, sliding surfaces, media and cleanliness can dominate the process route.
Component guide →Custom OEM Metal Components
Use this route when the drawing combines functions or does not fit a standard component family.
Component guide →Conclusion
Choosing the right route for small metal parts is mostly about matching the part to the process logic. When the geometry, quantity, and performance goal line up, the quotation becomes more meaningful and the project moves faster.
