Product Overview

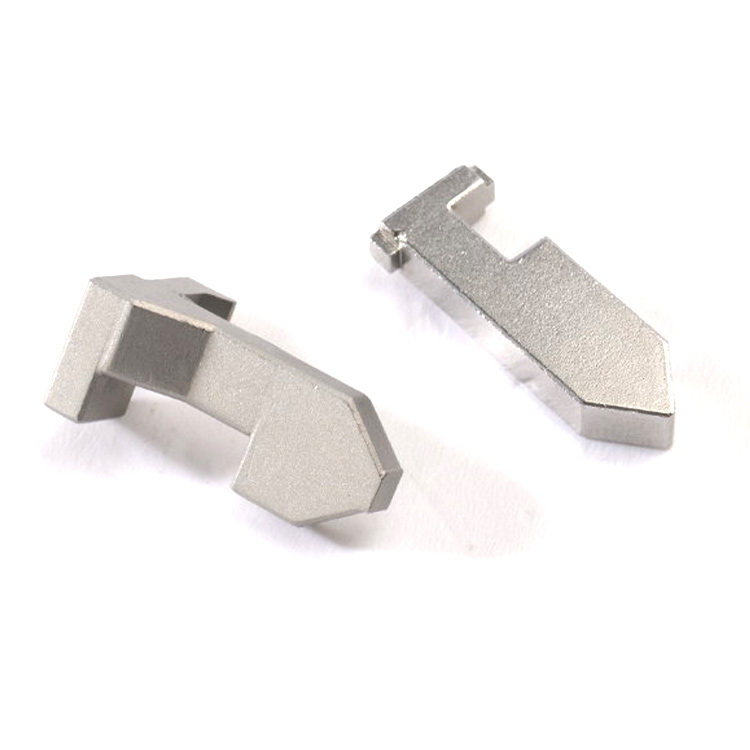

A latch profile engages and releases against a mating member within the lock.
The reference shows shaped contact faces and connecting geometry for a drawing-based review.
Structure & Mating Interfaces
Define engagement depth, working direction, guides and connection to the operating mechanism.
Separate contact faces from surfaces that merely provide clearance.
Engineering Focus
Why check release as well as engagement?
A latch must move between working states within the surrounding mechanism.
A part that engages in a static inspection does not automatically demonstrate correct release.
The acceptance plan should describe the intended action and the mating parts used to evaluate it.
Manufacturing Route & Finishing
Compare near-net forming with machining for the profile and section.
Critical contact and connecting surfaces may require finishing after the body is formed.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the base material, final condition and corrosion or appearance requirements.
Mark drive, guiding and contact surfaces that must meet their dimensions after treatment.
The component specification does not establish a security rating for the complete lock.
Review material-selection information →Quality & Sample Approval
Check engagement, release and guiding clearance in the finished assembly.
Include the agreed material and environmental requirements.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Why should the mating strike or engaging member be included?
It defines the actual contact and clearance, which cannot be established from the latch outline alone.
Why check release as well as engagement?
A latch must move between working states within the surrounding mechanism. A part that engages in a static inspection does not automatically demonstrate correct release. The acceptance plan should describe the intended action and the mating parts used to evaluate it.
How should the completed mechanism be checked?
Check engagement, release and guiding clearance in the finished assembly. Include the agreed material and environmental requirements.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
