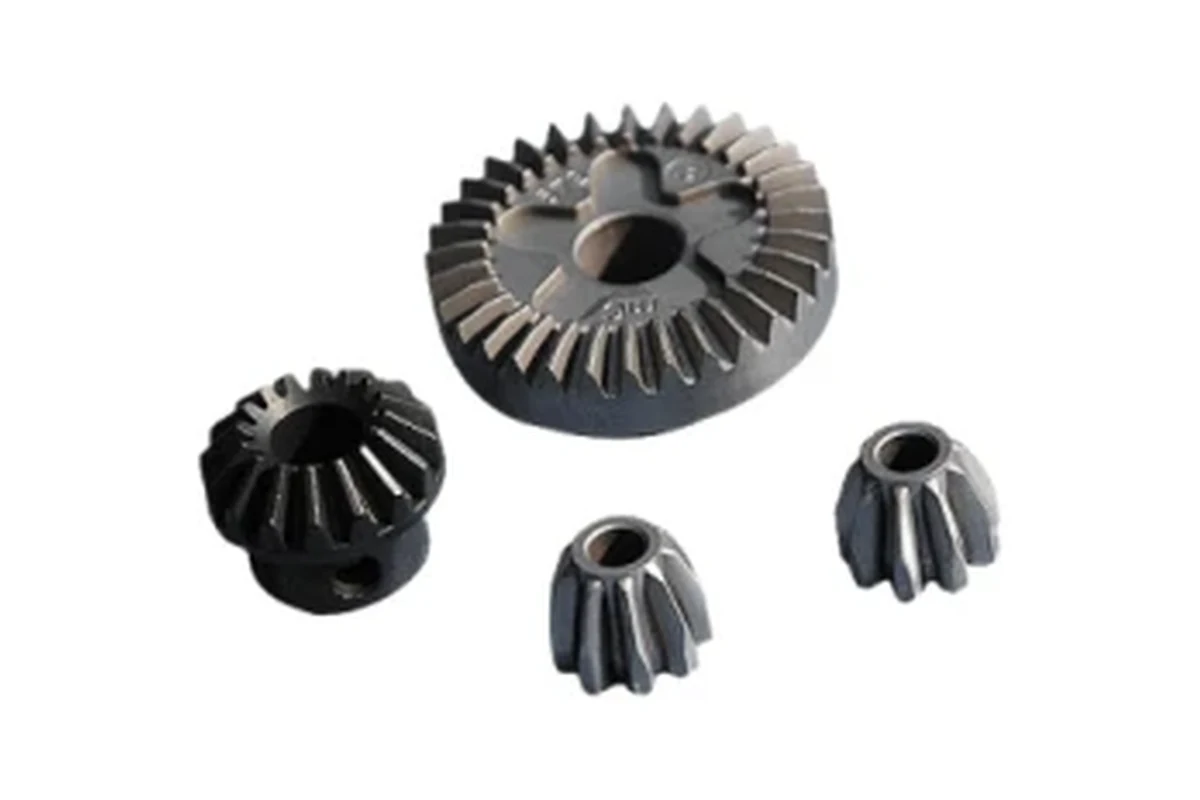

What bevel gears transmit between angled shafts
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
The mating pair and its installation determine the useful tooth and mounting requirements.
Shaft angle, tooth data and mounting-distance interfaces
Provide shaft angle, tooth data, mounting distance and the mating gear drawing.
Bore and face datums need to relate to the designed tooth geometry.
Why does mounting distance belong in bevel-gear review?
The gear's working relationship is established by its position relative to the mating member.
Tooth geometry alone does not describe that installed position.
The assembly dimensions connect the individual gear to the intended contact and backlash requirements.
What an angled axis takes away from a straight pair
A bevel pair has no centre distance, no parallel bores and no shared axial position, so the three quantities that define a spur pair do not exist here. What replaces them sits partly on the gear and partly in the housing, which is why a bevel review needs the assembly and not only the part.
| Angled-axis term | What it forces onto the drawing | What it leaves to the housing |
|---|---|---|
| Shaft angle | Together with the tooth counts it defines the pitch cone of each member, and therefore the cone angle of the part being quoted. | Nothing about the angle is adjustable at assembly. If the housing is built to a different angle, the pair runs off its designed contact. |
| Cone apex | Both pitch cones have to meet at one point, and that common apex is the origin the whole mesh is built from. | The apex usually sits outside the part, so it can only be held indirectly, through the mounting distance from a locating face. |
| Mounting distance | The distance from the locating face to the apex, which is the bevel equivalent of centre distance and the number that positions the member. | It is what the housing actually holds, and it decides where along the tooth face the load is carried. |
| Straight or spiral tooth | A spiral adds overlap and quietness, and adds axial load in the same move that a helix makes on a spur. | It changes which member carries the thrust and whether a bearing or a shoulder has to take it. |
| Backlash and adjustment | On a bevel pair backlash is set by moving one member along its axis, not by changing bore spacing. | So assembly adjustment is part of the design, and the drawing has to say which member moves and by how much. |
Note. A bevel gear is the one form where the part drawing genuinely cannot be reviewed alone. The mounting distance and the shaft angle belong to the housing, and both decide whether the pair uses the flank it was cut with.
Why centre distance works for parallel axes and what replaces it here: mesh geometry in the gear family →
PM versus gear machining for bevel tooth forms
Compare PM and appropriate gear machining for the required tooth form, load and volume.
A near-net blank does not remove the need to define any tooth finishing or mounting-surface operations.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Gear material, density and treatment requirements
Material and final condition must be reviewed against the defined load, wear, lubrication and environment.
Where powder processing is proposed, agree any relevant density and treatment requirements.
A material family or hardness value alone does not specify the gear or bearing duty.
Review material-selection information →Gear geometry, mounting and backlash checks
Inspect gear geometry and mounting interfaces, then verify the agreed contact and backlash in the assembly.
Include the intended load and lubrication conditions.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Angle-axis gears: mounting distance decides whether the pair meshes
A bevel pair only works at one axial position. The gear has to sit at the designed mounting distance from the apex, and every face that sets that position becomes a critical feature. This is the point where bevel gears differ most from spur and helical parts in a drawing review.
| Feature | What it governs | How it is specified and verified |
|---|---|---|
| Mounting distance from the locating face | Whether the pair reaches the designed contact pattern at all. | Mounting distance dimensioned from the face that seats in the housing; checked on a gear tester with the mating part. |
| Pitch angle and cone distance | Where the contact pattern lands on the flank, and how the load spreads. | Pitch angle and cone distance on the drawing; tester trace on a matched pair, not a single gear. |
| Back face flatness and squareness | How the gear is set in the housing, and whether it rocks under load. | Flatness and squareness of the back face; surface plate for flatness, CMM for squareness to the bore. |
| Flank form, straight or spiral | Load distribution, noise and sensitivity to misalignment. | Flank form tolerance stated with the contact pattern requirement; checked as a pair. |
| Net-shape versus cut flanks | Whether the flank can be moulded at all, or has to be generated after sintering. | DFM list splitting moulded flank, sized flank and cut flank, with the finishing operation named for each. |
Note. All dimensions and acceptance criteria are taken from the project drawing. The table lists the points that get reviewed; it does not fix values.
Bevel pairs with a high cone angle and a large outer diameter are poor moulding candidates: the section is thick, density suffers, and distortion shows up directly as a mounting-distance error. Where the pair must carry reversing load, or where the contact pattern is tight, generating the flanks after sintering or buying a cut pair is the safer route.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can one bevel gear be approved without its mounting position?
Dimensional checks are possible, but working engagement depends on the mating gear and installation geometry.
Why does mounting distance belong in bevel-gear review?
The gear's working relationship is established by its position relative to the mating member. Tooth geometry alone does not describe that installed position. The assembly dimensions connect the individual gear to the intended contact and backlash requirements.
Which checks should be included in gear or support approval?
Inspect gear geometry and mounting interfaces, then verify the agreed contact and backlash in the assembly. Include the intended load and lubrication conditions.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →Bevel gear reference library
Component reference and drawing inputs
Bevel gear forms
Define the functional datums, mating interfaces and final condition for this part.
Discuss a similar component →Representative custom component references. Dimensions, material, manufacturing route and validation requirements are confirmed from your drawing; these are not off-the-shelf catalog items.
