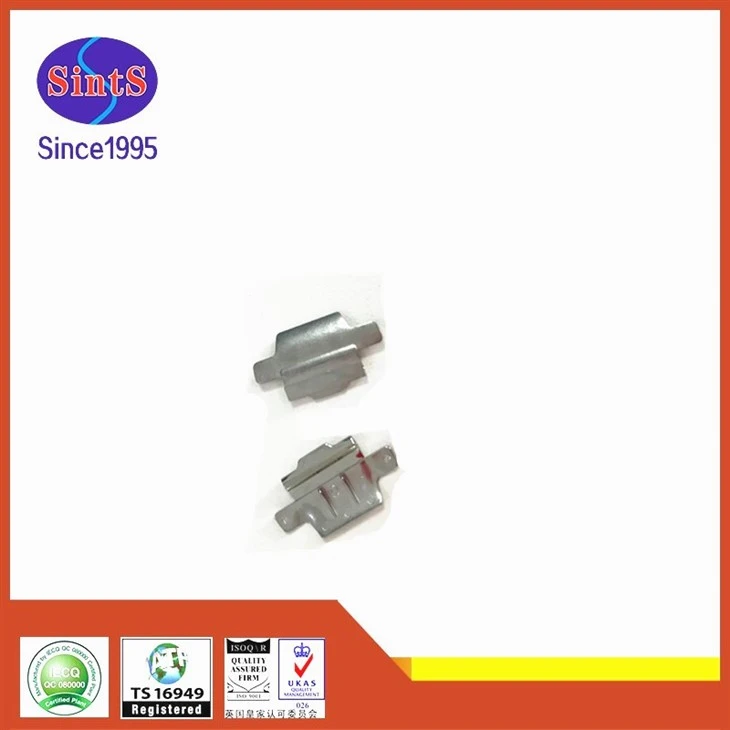

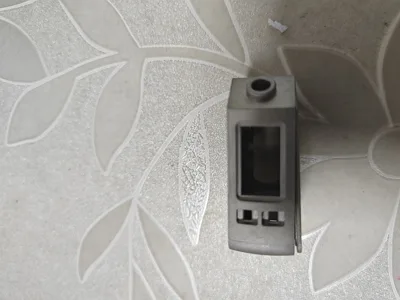

What small mounting parts locate inside a Bluetooth headset
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
They should be specified against the device shell and neighboring components, not by overall size alone.
Locating recess, fastener connection and clearance-opening interfaces
Identify the locating recess, fastener connection and any clearance opening.
Small offsets can affect shell closure even when individual dimensions appear acceptable.
Why does a small mounting offset affect shell closure?
A mounting part locates another element inside a limited envelope.
Its position can therefore affect neighboring parts even when its own size is correct.
Assembly datums describe that relationship more clearly than independent dimensions to arbitrary outside edges.
Machining versus MIM for compact bosses and openings
Compare machining with MIM where compact bosses or openings are integrated into the body.
Specify which mating dimensions need final machining or controlled finishing.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Mounting-part base material and cosmetic-finish requirements
Define base material, final condition and cosmetic finish separately.
Identify visible faces, permitted edge rounding and the dimensions that must be met after finishing.
Any magnetic, electrical or acoustic requirement needs its own specification.
Review material-selection information →Mounting position, opening alignment and assembled-clearance checks
Check mounting position, opening alignment and assembled clearance.
Define any visible surface separately from internal functional surfaces.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →What differs between lots on a small headset mounting part
These parts are small enough that a few hundredths of a millimetre decide whether a shell closes cleanly. The characteristics that move are not the ones that dominate a larger structural part.
| What drifts between lots | Where the drift comes from | What the release check catches |
|---|---|---|
| Position of the locating recess relative to the fastener boss | Both features are formed in the same tool, so their relationship is stable within a tool. It moves when the tool is reworked or replaced, and it moves when a lot sinters at a different density and shrinks differently. | Check the distance between recess and boss, not each feature to an outside edge. Record the value at the start of a tool life so a later shift can be recognised. |
| Boss height above the seating face | Boss height comes from fill weight and from how far the face is sized. On a small part the same absolute variation is a much larger share of the tolerance. | Measure to the seating face and state that face as the datum. A height measured from the opposite side includes the thickness variation as well. |
| Alignment of the clearance opening with the shell opening | The opening is formed by a core pin. Pin wear shows as a slow change in position or as a taper through the wall, and neither is visible from outside the assembled device. | Check the opening against the shell datum, on a CMM or with a fixture that represents the shell. Checking the opening against the part outline will not show an assembly offset. |
| Appearance of the visible surface | Polishing and tumbling remove material with a result that depends on media life and cycle time. On a small cosmetic part a change in removal shows first as a change in edge sharpness and surface sheen. | State the cosmetic requirement by area and against a comparison sample, and refresh the sample when the process is re-qualified. Visual acceptance without a retained boundary sample drifts on both sides. |
| Coating thickness and the assembly gap | Coating builds on all surfaces, and the build on a small part is a larger share of the gap than on a large one. Two lots can both meet the thickness callout and differ in whether the shell closes without a seam. | Check the assembly gap after coating, not before. Where the part sits under a cosmetic seam, the gap is the requirement and the coating is only the means to it. |
Note. This describes how the process behaves across a production run, not the history of any particular lot. Acceptance values, sample sizes and inspection methods come from the project drawing and the agreed quality plan.
On parts this size the drawing decides whether the inspection means anything. Every item above can be checked against a datum the assembly also uses. None of them can be checked reliably against the part outline, which is what a drawing without assembly datums leaves the supplier to work with.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can one mounting part be reused across headset models?
Only after the shell, attachment and clearance requirements are confirmed; a similar outline does not establish compatibility.
Why does a small mounting offset affect shell closure?
A mounting part locates another element inside a limited envelope. Its position can therefore affect neighboring parts even when its own size is correct. Assembly datums describe that relationship more clearly than independent dimensions to arbitrary outside edges.
How are appearance and functional fit checked?
Check mounting position, opening alignment and assembled clearance. Define any visible surface separately from internal functional surfaces.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
