Product Overview

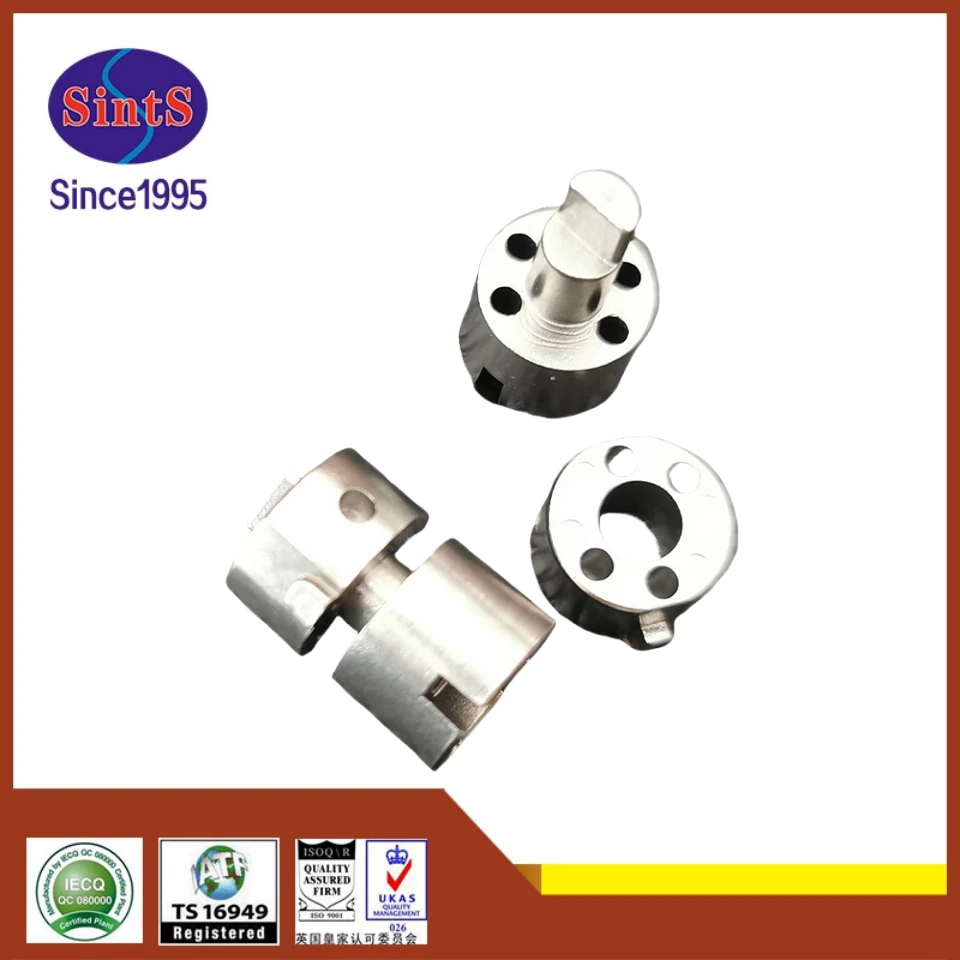

A headset hinge joins moving sections of the device while controlling their travel and alignment.
A quotation should identify the metal hinge component rather than assume supply of a complete headset mechanism.
Structure & Mating Interfaces
Define the pivot, stop locations and attachment to the shell.
Distinguish cosmetic faces from bearing or contact surfaces, including clearances after finishing.
Engineering Focus
Why separate hinge location from friction elements?
The hinge bracket establishes position, while other members may provide friction or preload.
Combining those requirements into a single vague feel specification makes component approval difficult.
Define the bracket interfaces and the assembled operating test as related but separate requirements.
Manufacturing Route & Finishing
Review integrated hinge features for MIM or machining against the actual wall geometry.
Pin bores and contact surfaces may need secondary finishing or a separate pin.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Define base material, final condition and cosmetic finish separately.
Identify visible faces, permitted edge rounding and the dimensions that must be met after finishing.
Any magnetic, electrical or acoustic requirement needs its own specification.
Review material-selection information →Quality & Sample Approval
Check pivot alignment, shell fit, movement range and the agreed operating feel.
Cycle evaluation must use the actual mating parts and customer requirements.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does the metal hinge alone determine opening torque?
No. Pins, friction elements, finish and assembly all contribute; provide the complete hinge arrangement and desired test method.
Why separate hinge location from friction elements?
The hinge bracket establishes position, while other members may provide friction or preload. Combining those requirements into a single vague feel specification makes component approval difficult. Define the bracket interfaces and the assembled operating test as related but separate requirements.
How are appearance and functional fit checked?
Check pivot alignment, shell fit, movement range and the agreed operating feel. Cycle evaluation must use the actual mating parts and customer requirements.
