What metal bushings do in a shaft-and-housing assembly
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.
The intended motion determines whether the bore is a bearing surface or a locating feature.
Shaft, housing and installed-clearance interfaces
Define the shaft and housing fits together.
A press fit can change the installed bore, so inspection before assembly may not describe the working clearance.
Why does installed bore size matter?
A sleeve is part of a shaft-and-housing system.
Its free-state dimensions describe the manufactured part, while the installed condition describes the working interface.
Keeping those two conditions explicit helps distinguish a manufacturing error from an assembly-fit issue.
Press-and-sinter versus turning for bushing profiles
Compare press-and-sinter with turning for the actual profile and quantity.
Sizing or bore finishing may be needed; an oil-impregnated design requires an agreed material and lubrication specification.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Bushing material, porosity and oil-impregnation requirements
Specify material and final condition against the shaft, housing, motion and lubrication.
If oil impregnation or a particular porous structure is required, state it explicitly.
The mounting method and final bore condition must be considered together rather than assuming every powder metal sleeve is an oil-bearing bushing.
Review material-selection information →Bore, concentricity and installed-clearance checks
Check bore size and form in the agreed state, concentricity where relevant, flange seating and installed clearance.
Include load, speed and lubrication in the approval brief.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →How metal bushings fail, and why the installed state is the only state that counts
A bushing is a fit, not a part. It is dimensioned free, installed under interference, and judged by the clearance it leaves afterwards. Nearly every failure below happens because one of those three states was used to specify a requirement that belongs to another.
| What goes wrong in service | What drives it | Where the drawing closes it out |
|---|---|---|
| The bushing cracks while being pressed in | A porous body has limited radial strength, and press-fit interference converts directly into hoop stress. The crack usually starts at a seam or at a chamfer edge and runs axially, so it is missed until the bore is gauged. | Interference range stated against the housing bore, with the radial strength implied by the density requirement, and an entry chamfer on both members; verified by pressing a sample from each lot into a production housing and inspecting the bore afterwards. |
| The bore goes oval under side load | Wall thickness and bore density decide how much the bore deflects. A thin-walled bushing with a short length concentrates the load at the edges and ovalises there first. | Wall thickness minimum and bore density stated, with the load direction relative to any seam or lubrication feature; verified by a loaded run and a roundness check afterwards. |
| The shaft scores and picks up | Bore finish and material pairing decide this more than clearance does. A rough bore with a hard shaft and poor oil supply will smear rather than wear evenly. | Bore finish stated numerically on the running surface, with the shaft hardness and finish named as the mating condition; verified by a run-in with the production shaft, not with a gauge pin. |
| The bushing walks out of the housing | Nothing in a plain cylindrical fit resists axial load once vibration starts. If the drawing does not carry a shoulder, a flange or a retention feature, the design relies on friction alone. | Retention method stated explicitly, with the axial load it must resist and the feature that provides it; verified by a push-out test at the stated load. |
| Corrosion starts between bushing and housing | Two dissimilar metals in a joint that traps moisture make a small galvanic cell, and the porous body holds the electrolyte at the interface. | Both materials named with any coating or oil impregnation, and whether the joint is meant to be dry or lubricated; verified by a humidity test on an assembled joint rather than on the bushing alone. |
Note. The table names service failure modes and the drawing features that address them; it sets no acceptance values. Dimensions, tolerances and test criteria come from the project drawing.
The press-fit crack is the item that most often turns a good design into a bad part, and it is a specification problem: interference, density and chamfer have to be chosen together. Bore ovality and shaft pickup are process questions that respond to density and finish, both of which are controllable. Retention and galvanic corrosion are neither: they are design omissions, and no process control will supply a shoulder that was never drawn or a material pairing that was never considered. Checking which of the three categories a complaint falls into is usually faster than investigating the part.
Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Are all powder metal bushings self-lubricating?
No. Oil impregnation and the required porous structure must be specified. A locating sleeve or a sealing interface may need a different design.
Why does installed bore size matter?
A sleeve is part of a shaft-and-housing system. Its free-state dimensions describe the manufactured part, while the installed condition describes the working interface. Keeping those two conditions explicit helps distinguish a manufacturing error from an assembly-fit issue.
Which checks should be included in gear or support approval?
Check bore size and form in the agreed state, concentricity where relevant, flange seating and installed clearance. Include load, speed and lubrication in the approval brief.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →Metal bushing reference library
Component reference and drawing inputs

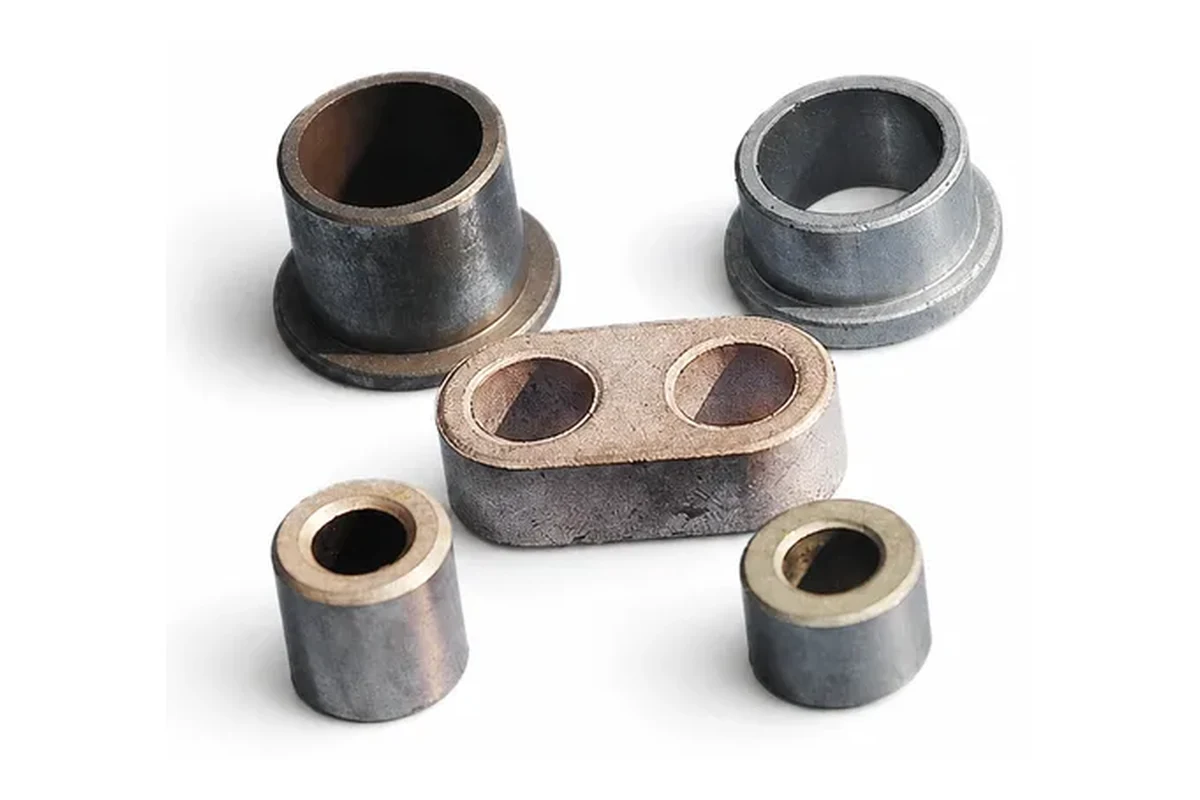

Plain and flanged bushing references
