What a portafilter handle connects in the brewing assembly
Review this component together with its mating parts and delivered condition. The interfaces below define the drawing information needed to assess forming, finishing and inspection.

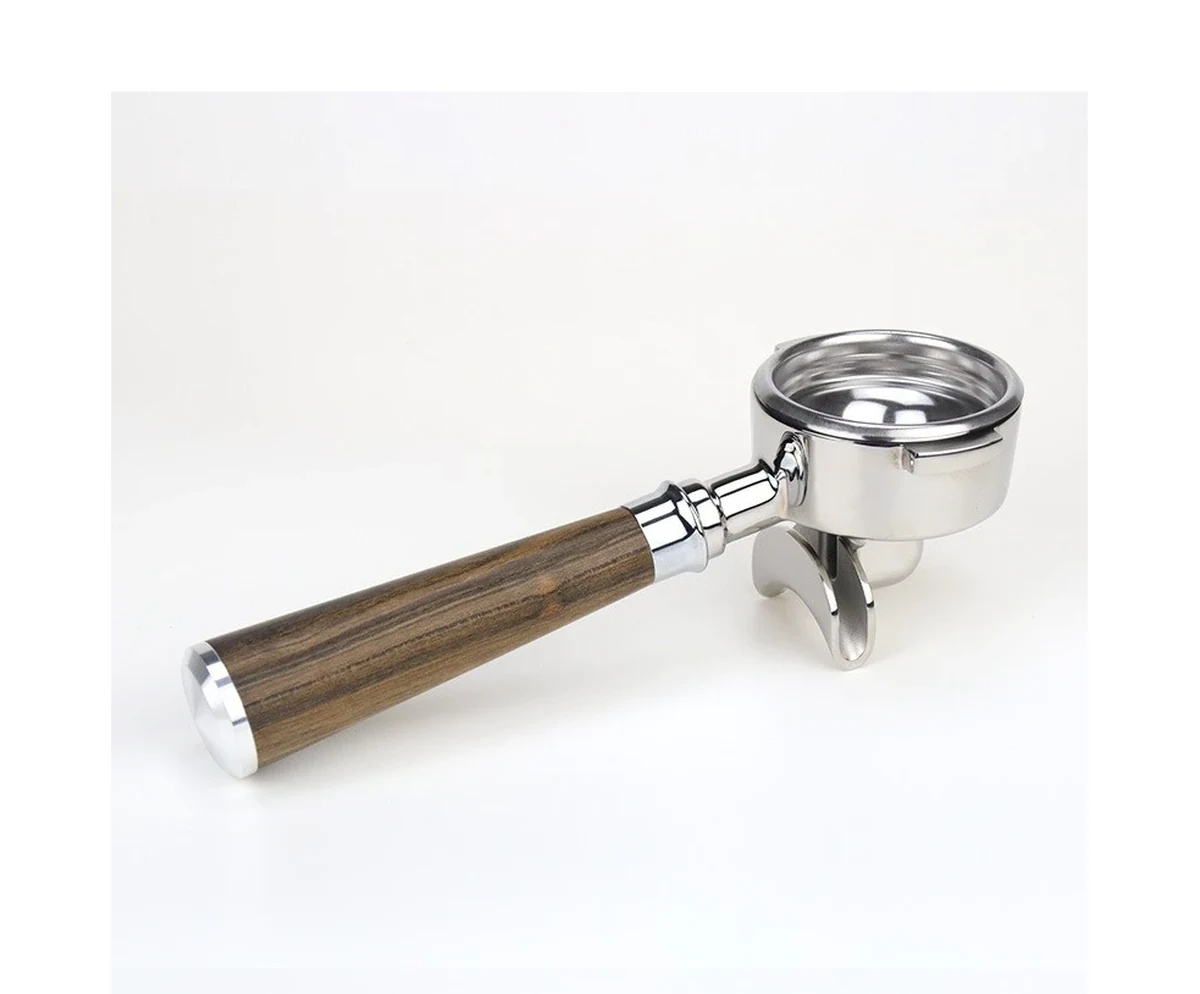

This reference shows assembly context for reviewing the individual metal connection and head components.
Metal part, handle attachment and machine-interface scope
Identify the required metal part, handle attachment and mating machine interface.
The photograph includes non-metal elements, which should not be assumed to be part of the quotation.
Why separate the portafilter head from handle hardware?
The head interfaces with the brewing assembly, while the handle connection establishes orientation and retention.
Those roles can require different manufacturing and inspection methods.
An assembled photograph is useful context, but individual drawings are needed to turn it into a clear supply scope.
Reviewing portafilter head, connector and fittings separately
Review the head, connector and other fittings separately because their geometry may favor different routes.
Threads, seating faces and joining operations need explicit definitions.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Portafilter grade, cleaning and beverage-contact requirements
Specify the required grade or performance criteria together with cleaning, wear and appearance requirements.
For any surface that contacts food or beverage, identify the applicable customer documentation and acceptance criteria.
A stainless label is not a complete contact specification.
Review material-selection information →Handle connection, orientation and seating checks
Check the handle connection, orientation, seating and agreed surface appearance.
Provide temperature, cleaning and applicable contact requirements for the actual assembly.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Is this a quotation for the complete portafilter assembly?
Not automatically. Specify whether the request covers the metal head, connector, handle hardware or an agreed assembly.
Why separate the portafilter head from handle hardware?
The head interfaces with the brewing assembly, while the handle connection establishes orientation and retention. Those roles can require different manufacturing and inspection methods. An assembled photograph is useful context, but individual drawings are needed to turn it into a clear supply scope.
How should fit and operating behavior be approved?
Check the handle connection, orientation, seating and agreed surface appearance. Provide temperature, cleaning and applicable contact requirements for the actual assembly.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
